Advantages
Premium core components: Fitted with Honson mainboard, Leadshine servo motors and silent THK linear guides. Optimized structure realizes low-noise, vibration-free running and accurate positioning.
Cost-effective optional print head: Optional single Epson I3200HD head enables high-speed & high-definition printing and reduces your purchasing expense.
60cm practical print width: Budget-friendly machine cost, perfectly matching production needs of small & medium digital printing enterprises.
Wide compatibility for crafts & materials: Compatible with UV DTF film, 3D UV and drop glue UV technology, supporting printing on diverse substrates.
Robust mechanical construction: Reinforced frame ensures stable operation and sustainable high printing precision during long-time production.
Quick Specifications
Product Specifications
| Parameter | Value |
|---|---|

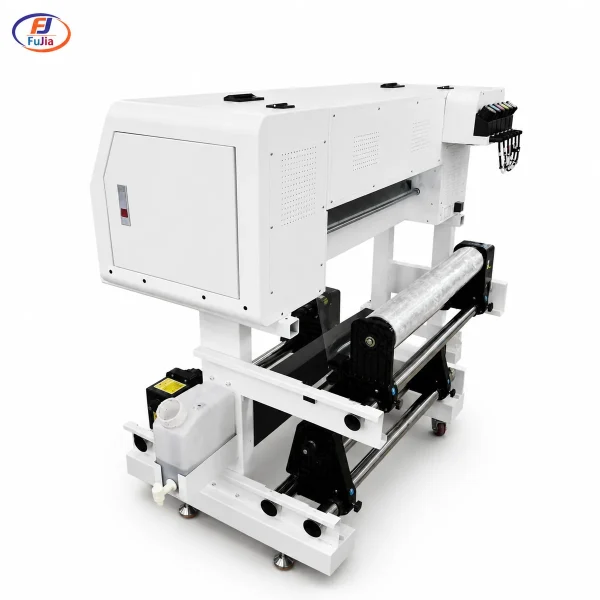

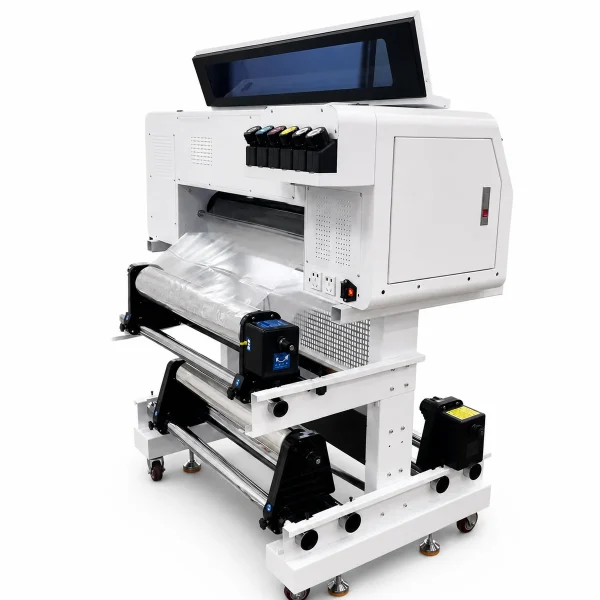

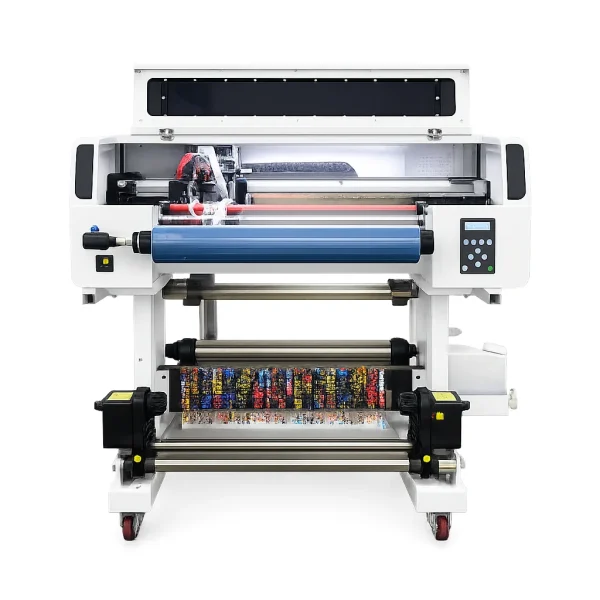

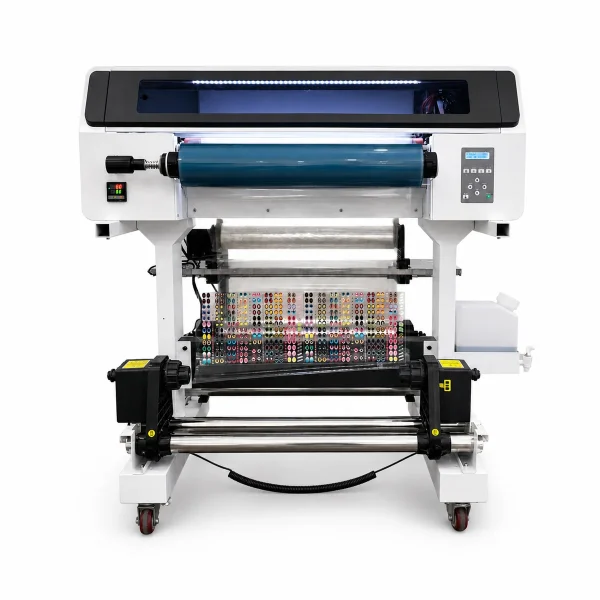

| Model | FJA1UV A1 UV DTF Printer (1 Head) |
| Overview | Integrated laminator with advanced technology and smart design comprehensively enhances UV DTF printing experience. Anti-static function effectively protects printheads. Dual-roller lamination design eliminates air bubbles with uniform pressure for superior output. Auto-clears excess glue from film, saving labor and simplifying workflow. Equipped with one I3200HD printhead for minimum procurement cost while meeting high-quality printing demands. |
| Equipment Parameters. Model | FJA1UV |
| Equipment Parameters. Print Size | 650mm (25 inch) |
| Equipment Parameters. Print Head | 1 Epson I3200HD U1 |
| Equipment Parameters. Print Speed | I3200HD U1: 3 sqm/hr |
| Equipment Parameters. Resolution | I3200HD U1: 6Pass 720×1800 / 8Pass 720×2400 |
| Equipment Parameters. RIP Software | Maintop, Photoprint, RIIN, Print Factory |
| Equipment Parameters. Power Requirement | AC 220V/110V, 50–60Hz |
| Equipment Parameters. Machine Dimensions | 125 × 83 × 110 cm |
| Equipment Parameters. Package Dimensions | 130 × 85 × 65 cm |
| Equipment Parameters. Weight | 100 kg (net) / 130 kg (gross) |
| Equipment Parameters. UV Lamp Cooling | Air-cooled curing |
| Equipment Parameters. Paper Press Mode | Electric drive |
| Equipment Parameters. Core Technology | Variable droplet technology, micro-piezoelectric inkjet technology |
| Equipment Parameters. Ink Type | UV ink |
| Equipment Parameters. Ink Colors | CMYK + White + Varnish |
| Equipment Parameters. Print Direction | Unidirectional / Bidirectional |
| Equipment Parameters. Basic Functions | Flash spray anti-clog, auto stirring, auto/manual cleaning; multi-channel real-time ink shortage alarm; optional anti-freeze device |
| Equipment Parameters. Printhead Protection | Intelligent auto anti-collision |
| Equipment Parameters. Print Solutions | UV DTF film printing, TPU 3D printing, drip UV printing, double-sided UV DTF printer |
| Equipment Parameters. Supported Formats | JPG, PNG, BMP, PDF, TIF, EPS |
| Equipment Parameters. OS Support | Windows 7+ 64-bit |
| Equipment Parameters. Print Software | Printex |
| Equipment Parameters. Working Environment | Basic temp 15℃–35℃, standard temp 18℃–30℃; basic humidity 20%–30%, standard humidity 35%–65% RH |
| Equipment Parameters. Transmission System | Imported linear guide rails + dual THK silent guide rails, X-axis single rail motor, Y-axis dual rail motor, with variable-frequency motor, widened and thickened base beam |
| Equipment Parameters. Power Configuration | High-precision Leadshine servo motor |
| Equipment Parameters. Ink Supply System | Standard siphon positive-pressure ink supply (with suction), single cartridge capacity 500ml |
| Equipment Parameters. Curing Method | UV air-cooled light curing, instant dry |
| Equipment Parameters. Interface | High-speed USB 3.0, Gigabit Ethernet |
| Equipment Parameters. Noise Level | <32 dB (min), ≤65 dB (max) |
| Hardware Configuration | Equipped with LED UV air-cooled curing lamp, power 75–150W, more energy-efficient. Uses micro-film piezoelectric print chip, minimum droplet 2.5pl, fine imaging with natural color transitions. Mercury-free, ozone-free, safe and environmentally friendly. White ink stirring and standby flash spray functions effectively prevent printhead clogging. |
| PC Requirements | 64-bit Windows XP/Win7/Win10/Win11 (recommended Win10, NTFS), C drive 100GB+, WD500G+, ATI dedicated GPU 4GB VRAM+, Intel 5th Gen Quad-Core/i7+, dual drive, Gigabit NIC. |
| Applications | Hot stamping gift box pattern processing, signage, decoration, glass, furniture doors and windows, exhibition displays, leather and textiles. Suitable for individual entrepreneurship and factory processing. |
| Warranty. Full Machine | 12 months |
| Warranty. Main Board | 12 months |
| Warranty. Consumables Exclusion | Printheads, dampers, cables, ink caps are consumables and not covered |
| Warranty. Special Notice | Ink system, printheads, ink caps of all DTF/UV series not covered |
| After-Sales. Service 1 | Free standard spare parts |
| After-Sales. Service 2 | Professional engineering team online support |
| After-Sales. Service 3 | Quotes for all printing equipment and customization |
| After-Sales. Service 4 | Free on-site practical training |
| After-Sales. Delivery & Cooperation 1 | Ample stock, fast shipping |
| After-Sales. Delivery & Cooperation 2 | Multiple international payment methods |
| After-Sales. Delivery & Cooperation 3 | Complete spare parts supply, comprehensive after-sales system, suitable for long-term agency cooperation |
Product Details
Engineered with premium components for industrial-grade reliability.
The device is equipped with a
The device is equipped with a bidirectional Leadshine integrated brushless servo motor and a high-precision linear decoder driver, which features high precision, low vibration, small tolerance, and strong stability, ensuring stable and reliable power output from the printhead.
Equipped with imported rubber laminating unit
Equipped with imported rubber laminating unit and Leadshine laminating motor, it ensures smooth and accurate lamination with precise control over temperature and pressure.

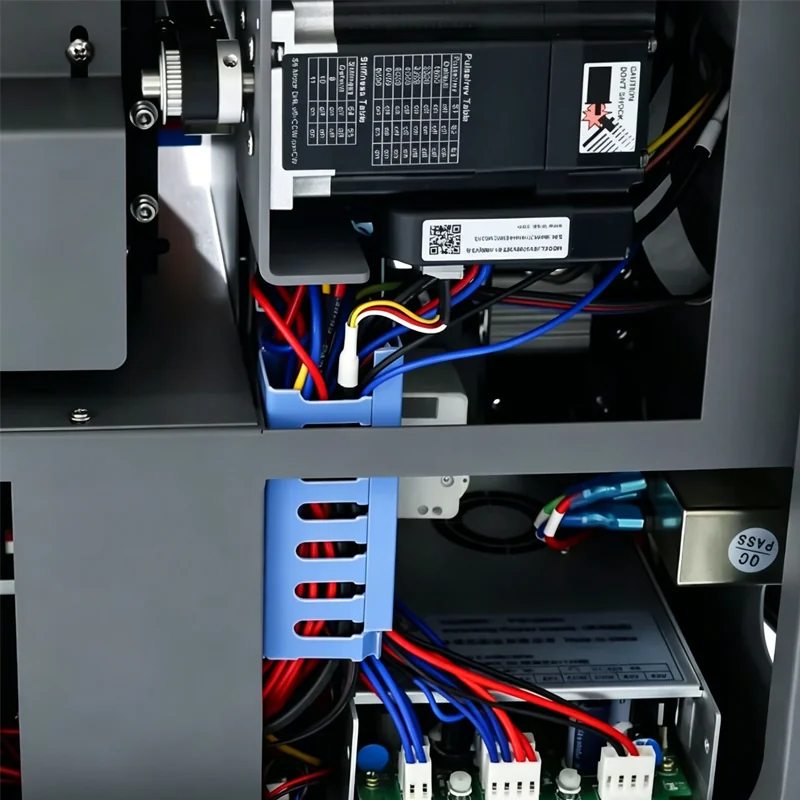

Fitted with Honson control board and
Fitted with Honson control board and Mean Well power unit for superior accuracy and stable performance.

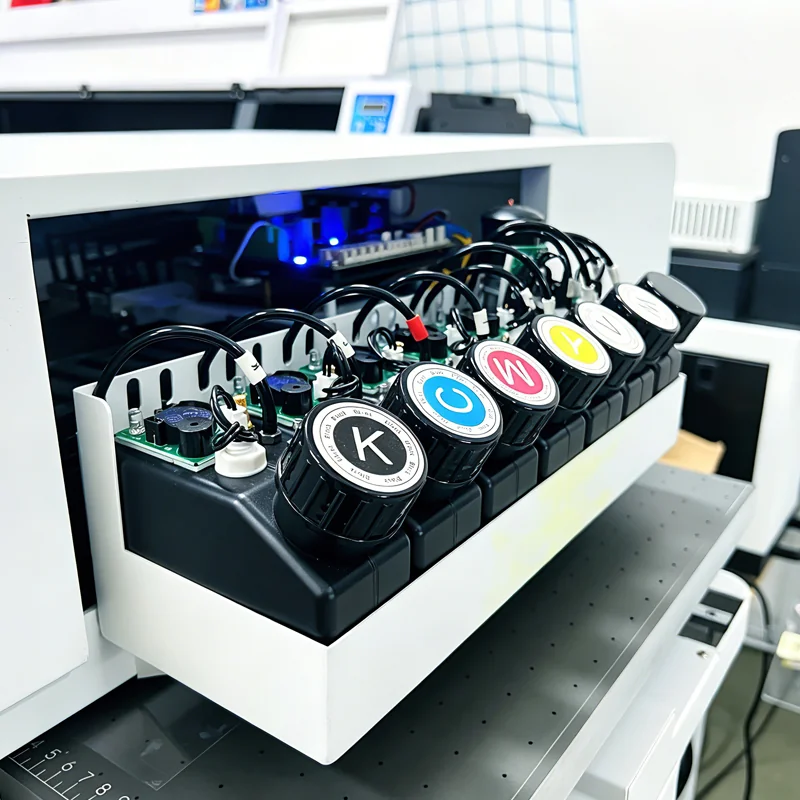

The ink cartridge is fitted with
The ink cartridge is fitted with low-ink alarm. The white ink circulation function ensures the printer operates safely.

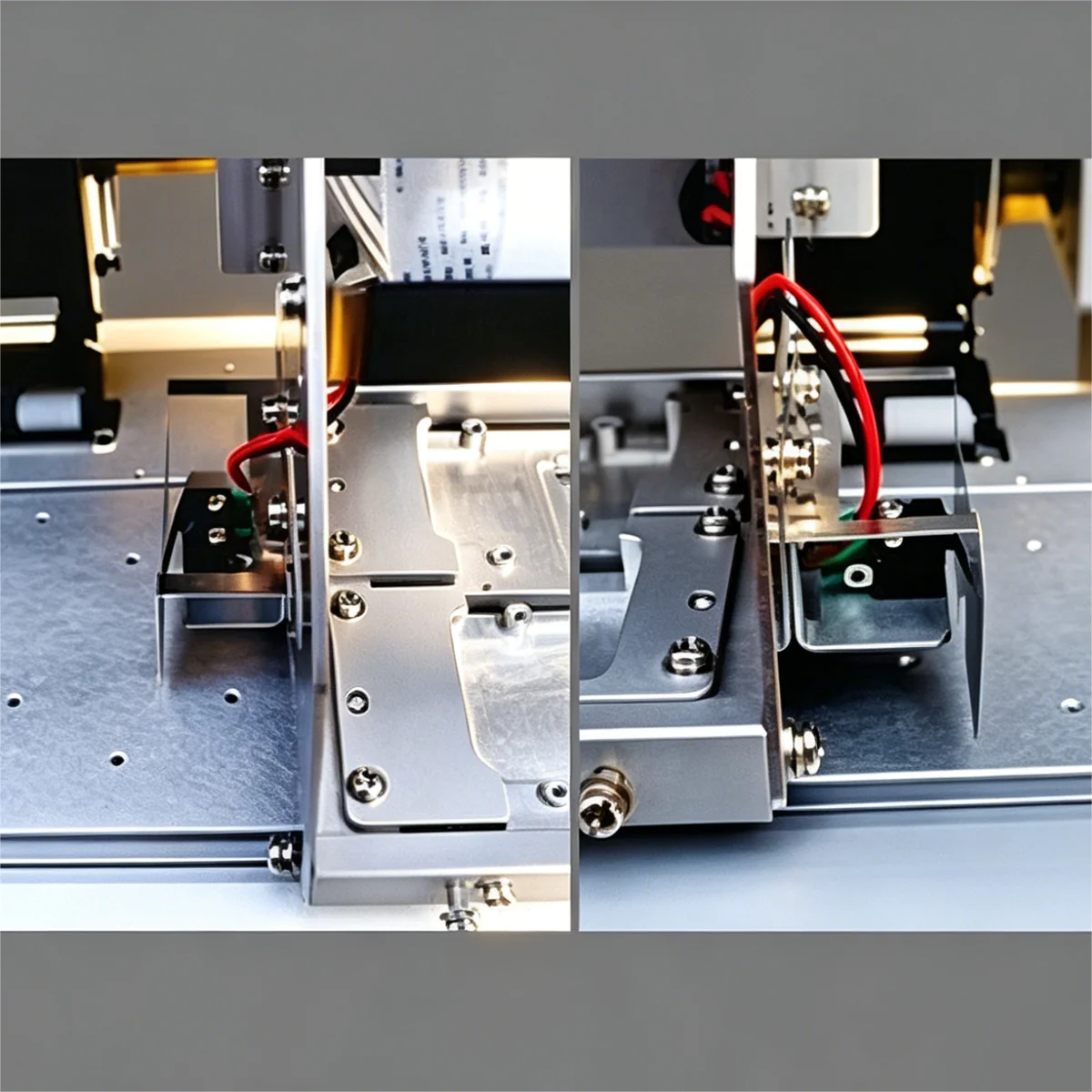

Fitted with anti-collision bumpers on both
Fitted with anti-collision bumpers on both sides of the carriage bracket. It shuts down instantly when blocked by paper, abnormal air flow or debris, effectively safeguarding the print head.

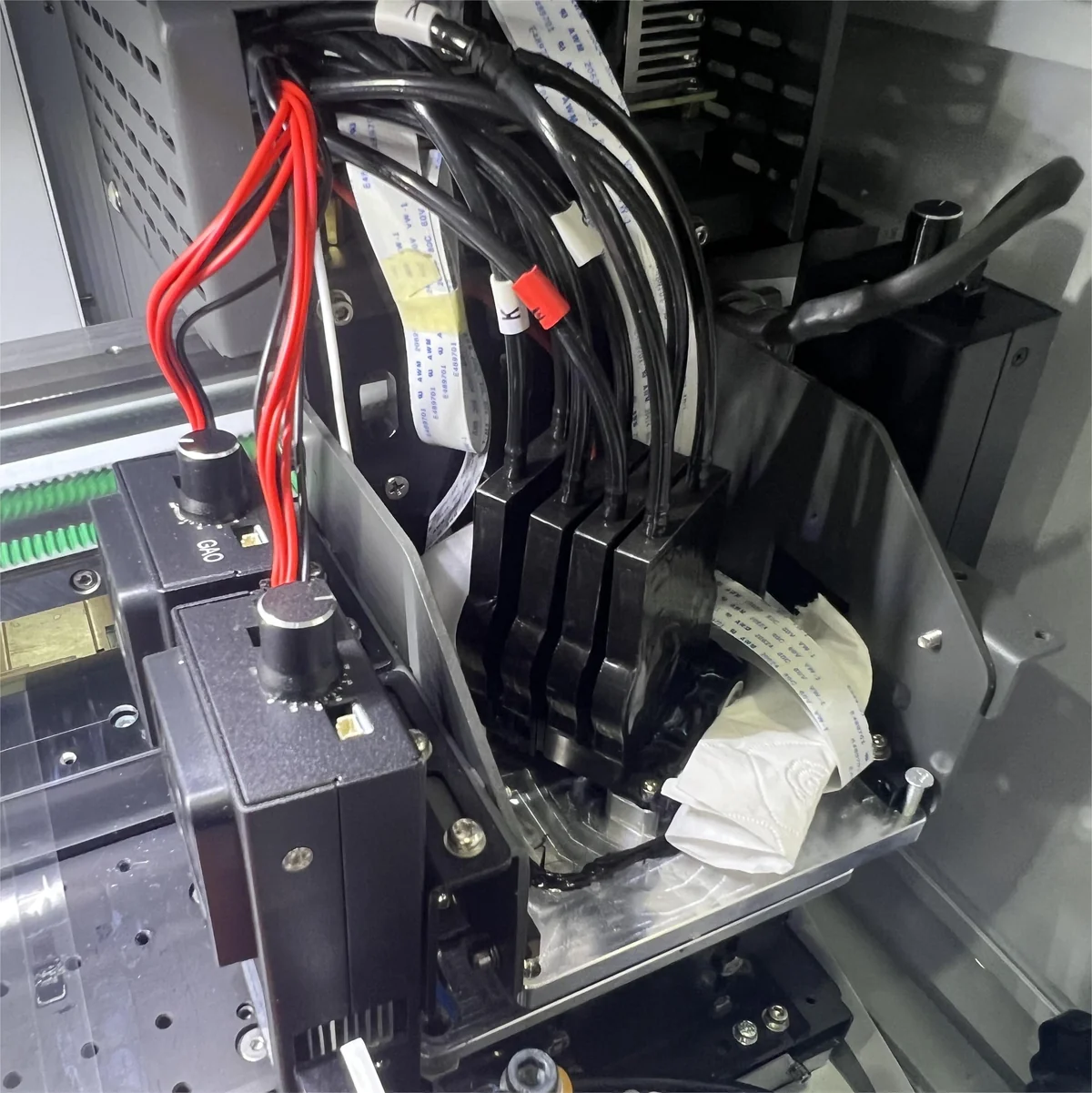

The carriage bracket is equipped with
The carriage bracket is equipped with high-quality UV lamps and anti-collision devices, ensuring safe operation and efficient printing.

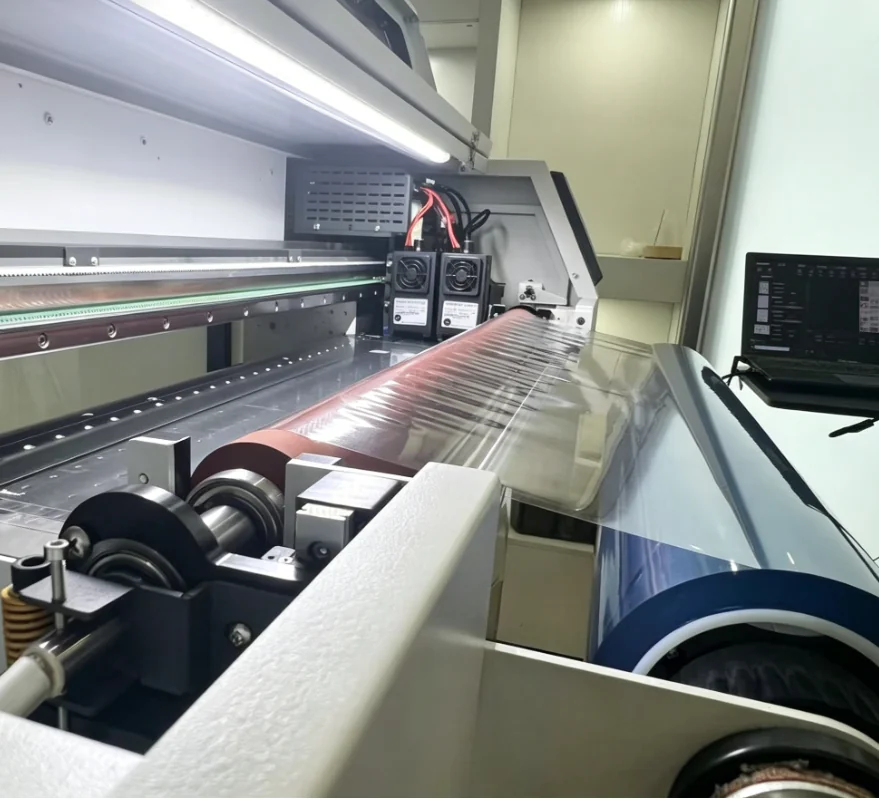

The dual-motor system coordinates the movements
The dual-motor system coordinates the movements of the print head and paper feeding platform with high precision. Featuring excellent tension control and speed synchronization, the X and Y axes run stably and efficiently, guaranteeing high-precision UV DTF printing.

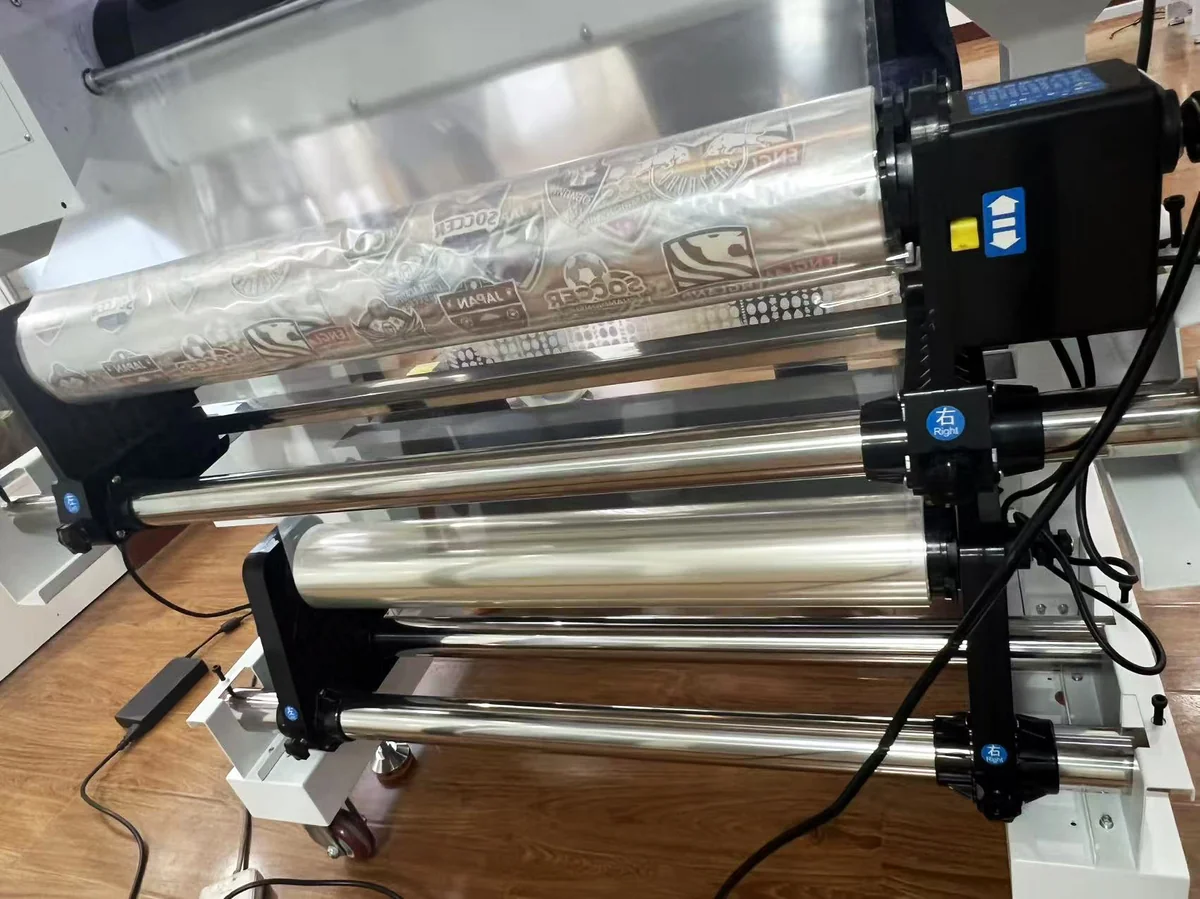

Adopting high-efficiency and stable electric film
Adopting high-efficiency and stable electric film rollers and B-film winding device, the two components work in tandem to ensure steady film feeding.
How to Choose Your UV DTF Printer
Compare our A1 UV DTF printer with other models in the FuJia lineup.
| Feature | UV DTF A1 1H | UV DTF A1 3H |
|---|---|---|
| Print Head | 1x Epson I3200HD | 3x Epson I3200 |
| Print Width | 650mm | 650mm |
| Max Speed | 10 sqm/hr | 20 sqm/hr |
| Best For | Entry-level UV DTF | Mid-volume |
UV DTF Printing Process
1.Graphic Layout & Color Separation
Complete artwork color separation and set customized printing parameters for white ink, colored inks and varnish.
2.Substrate Material Loading
A. Fit release liner (Base Film A) onto the printer’s unwind roller;
B. Mount clear transfer film (Film B) to the front feed reel of the printer.
3.UV Digital Inkjet Printing
Applications
Applications include: water cups, wine glasses, phone cases, laptops, metal/wood/acrylic materials, door and window stickers, decorative paintings, tableware, vehicle wraps, cosmetic bottles, gift boxes, jewelry boxes, etc.
What's in the Box
Compatible Consumables
Use FuJia-certified consumables. Browse all UV DTF consumables.
| Consumable | Specification | Replacement Cycle |
|---|---|---|
| UV DTF Ink | 1,000ml bottle | As consumed |
| UV DTF Film A | A1 width, 100m roll | As consumed |
| UV DTF Film B | Transfer film, 100m roll | As consumed |
OEM & ODM Customization
Custom Branding
Logo printing on machine body, control panel, packaging, and user manuals.
Hardware Customization
Adjustable print width, printhead configuration, color options, voltage specs.
Software Customization
Pre-installed RIP software, custom UI language packs, operation manuals.
Packaging Design
Custom-branded wooden cases, foam inserts, and accessory packaging.
After-Sales Service
Global Shipping & Fast Delivery
- Export to 60+ countries worldwide
- Wooden case packaging
- Sea, air, rail & express
- EXW / FOB / CIF / CFR
- Fast lead time
- Full logistics tracking
Technical Support
- Dedicated representative
- 7×24 online support
- Spare parts inventory
- Firmware upgrades
- Free on-site training
- OEM/ODM project support
Warranty Terms
Main machine & mainboard covered.
Consumables excluded: printheads, dampers, cables, ink caps.
About FuJia
DTF, UV, DTG, ECO Solvent, Sublimation.
Sea, air, rail and express shipping.
Standard models stocked year-round.
Free on-site training at Guangzhou factory.

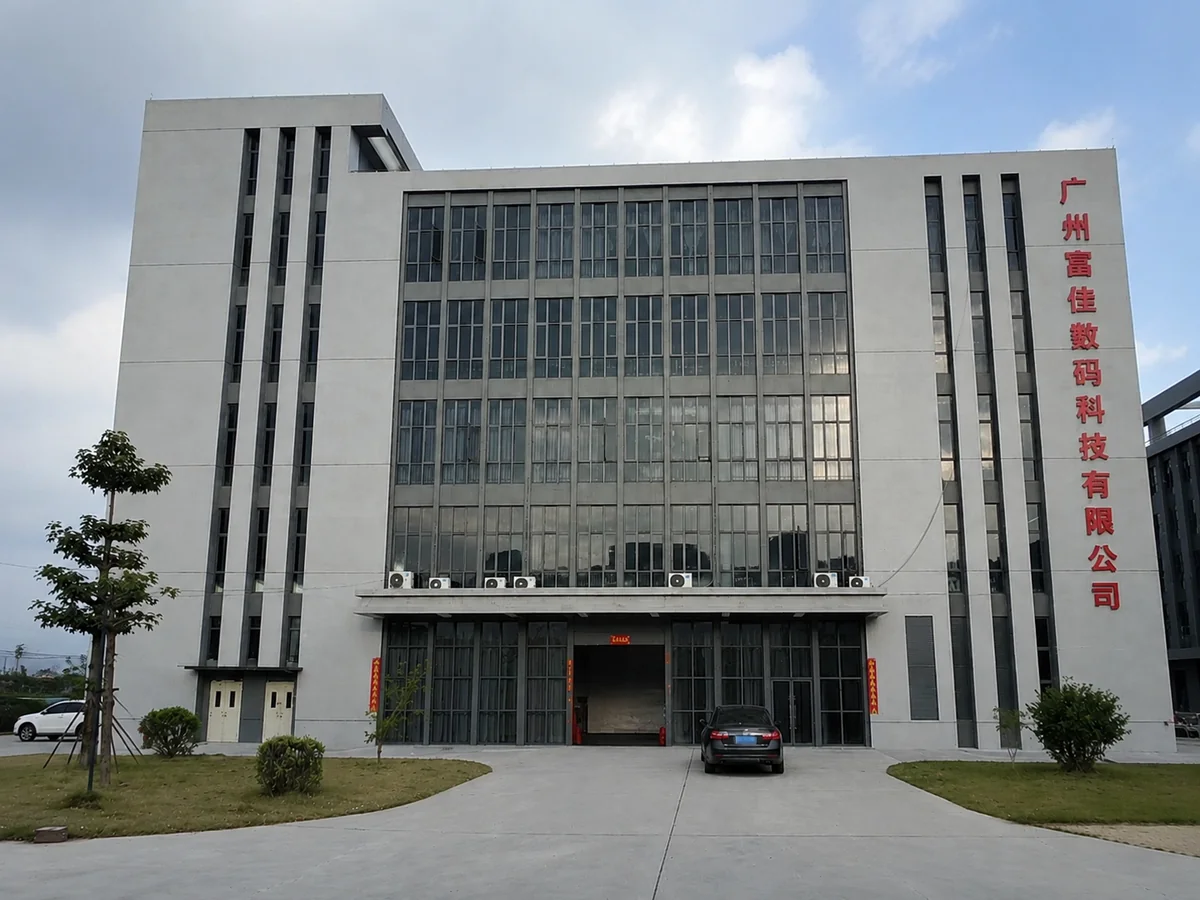

Factory Entrance
Headquarters
Showroom
Our TeamQuality Assurance & Factory Tour
Every FuJia printer undergoes rigorous testing before shipment.

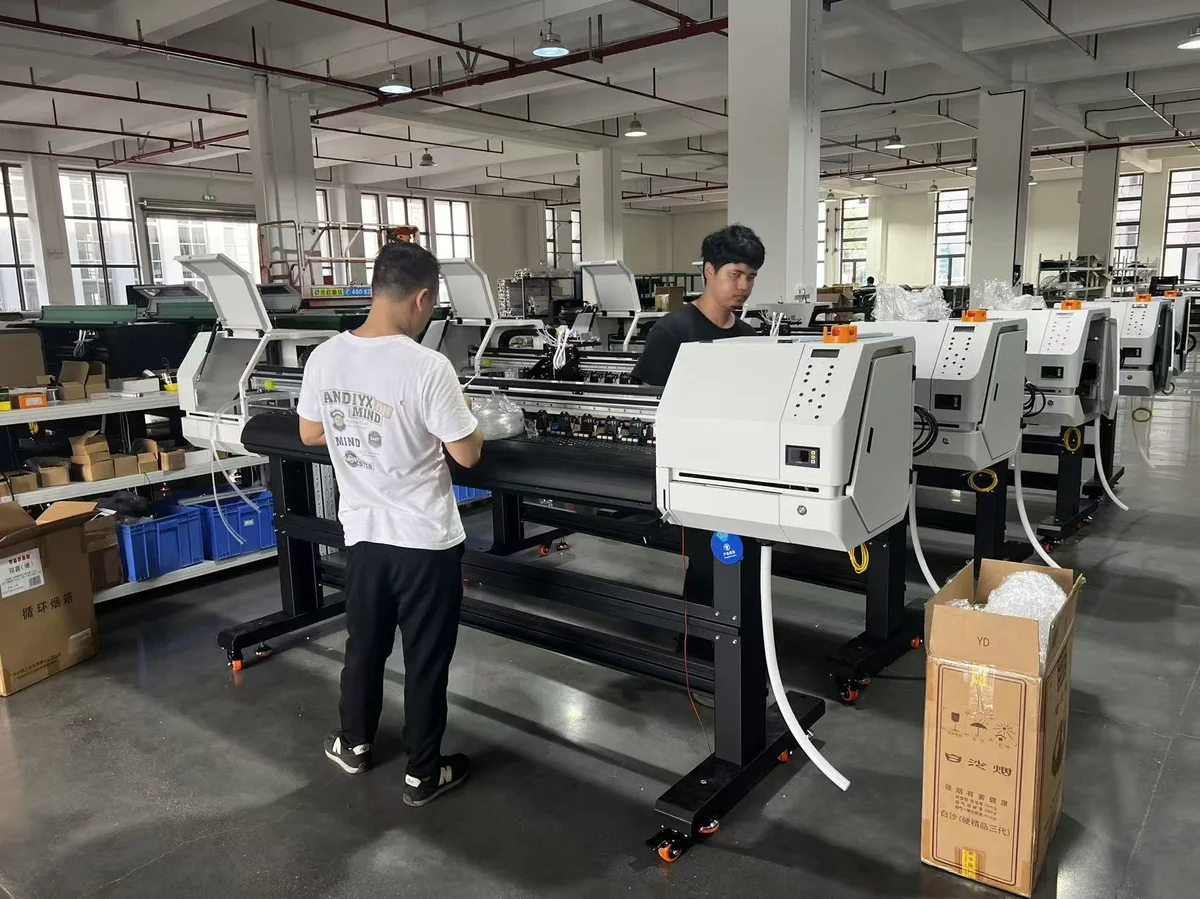

Assembly

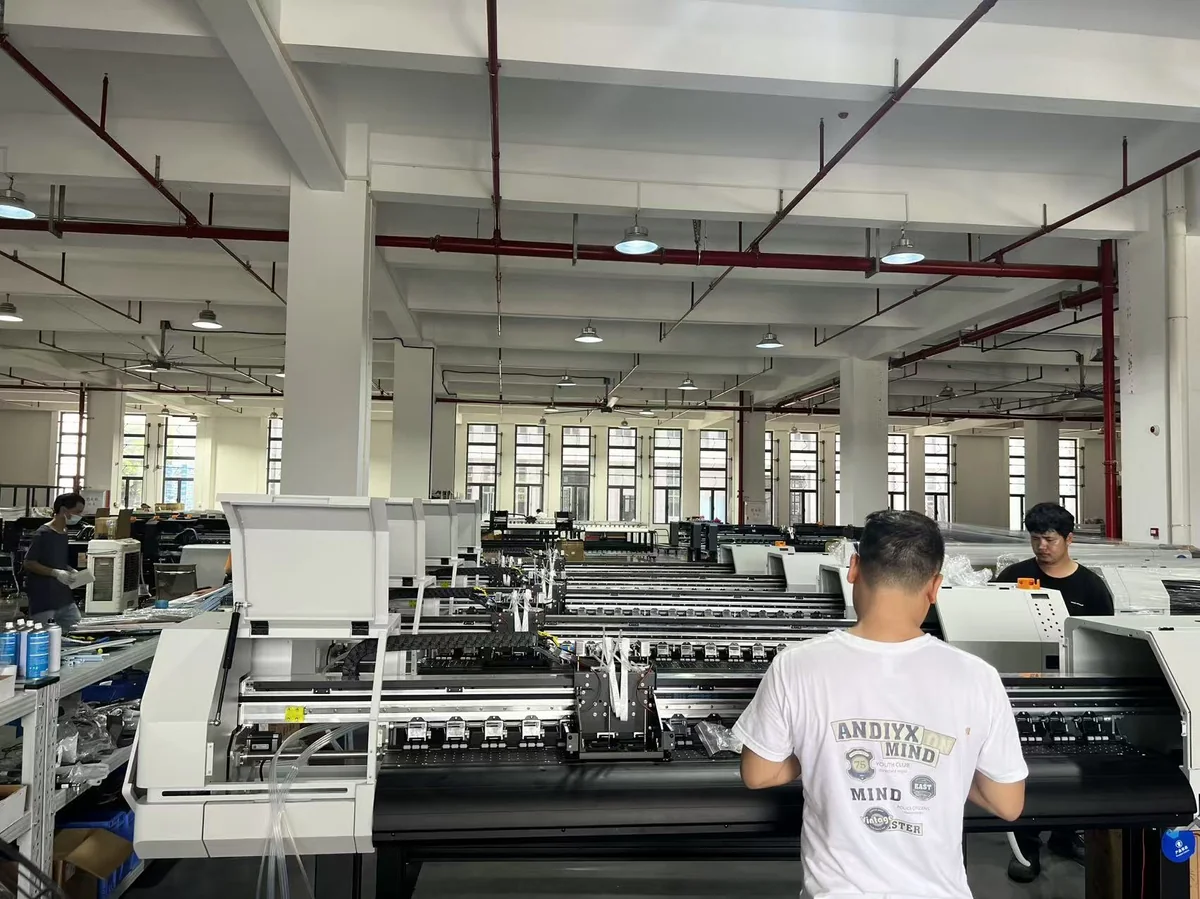

QC
Testing

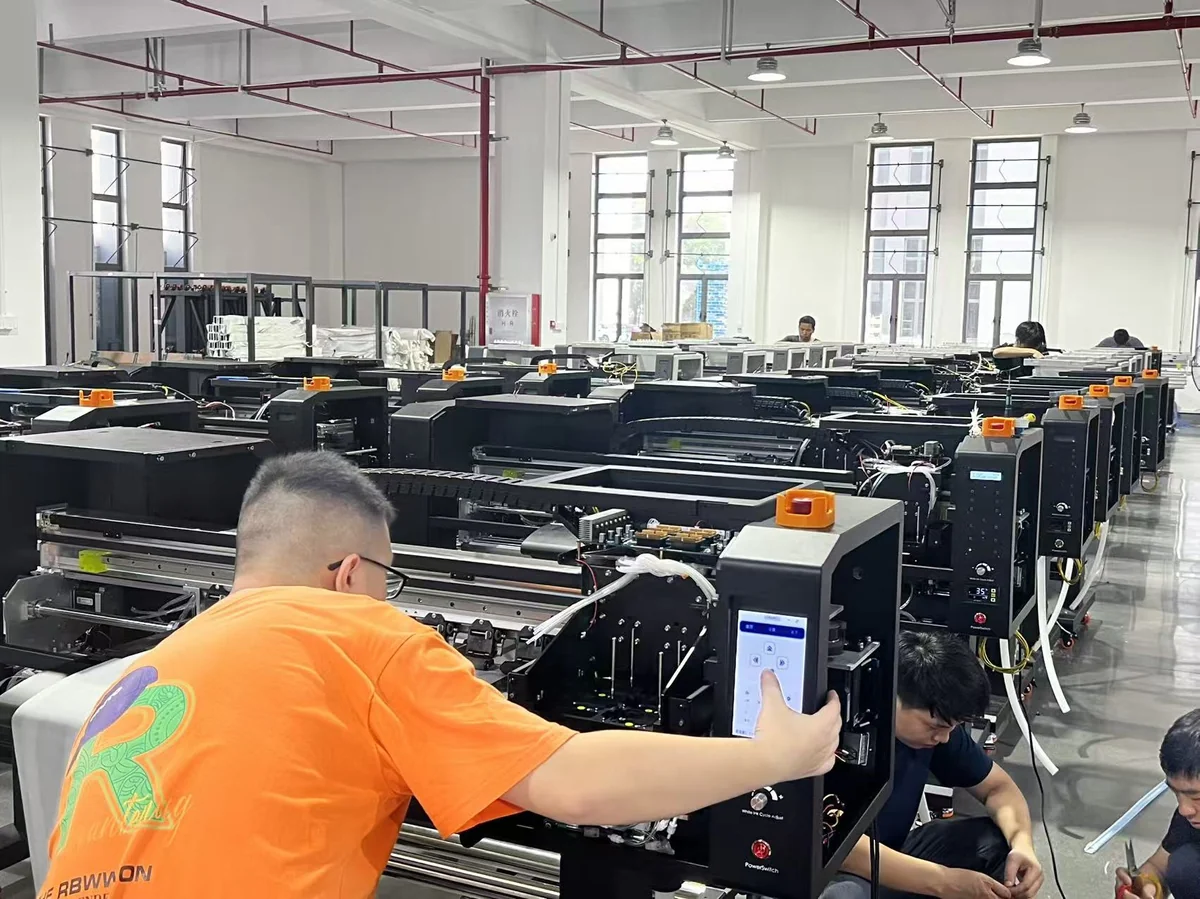

Pre-Shipment

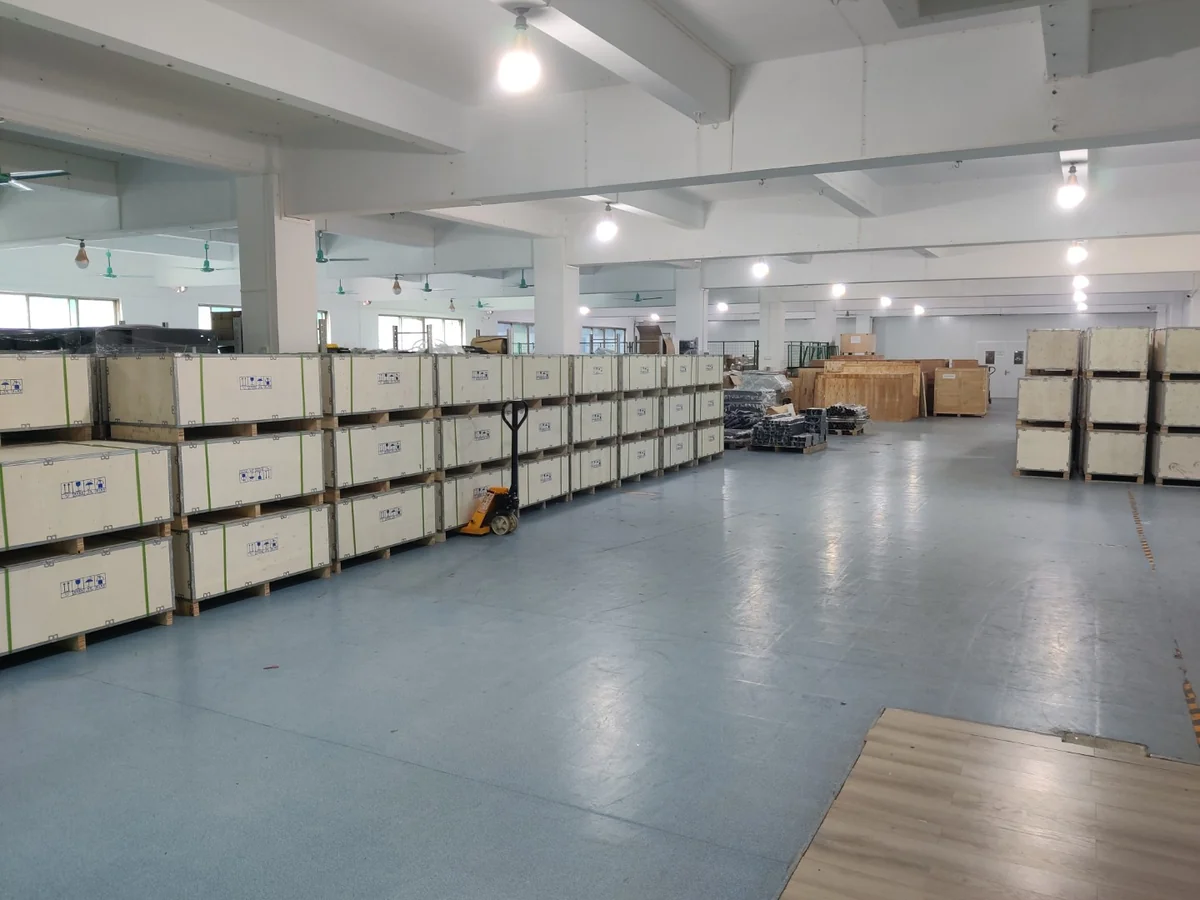

Warehouse
PackagingCertifications & Compliance
FuJia products meet international quality and safety standards.
Comply with EU standards.
Certified quality management.
Verified supplier.
Independent verification.
Learn More
Frequently Asked Questions
What is the core advantage?
Cost-effective commercial batch production. Stable, easy to maintain. Ideal for personalized customization, gift orders, and industrial packaging printing.
What printhead configuration?
Standard Epson printheads — fast speed, high precision, stable for high-quality commercial orders.
What businesses is it suitable for?
Individual entrepreneurs, small factories, advertising and gift processing companies, batch production factories.
What materials and inks?
Compatible with TPU silicone, UV DTF AB film, special films. Supports soft/medium/hard UV inks.
How is maintenance supported?
Mature ink circulation system, low failure rate. Remote guidance, tutorials, long-term spare parts supply.
What is the delivery time?
Standard models in stock. 3–10 working days after deposit.
What payment methods?
T/T, Western Union, credit card, Alibaba Trade Assurance.
How to handle equipment failure?
7×24 online technical support. Remote diagnosis available.
How to replace damaged parts?
Full spare parts supply. Old-for-new replacement. Spare parts kit available.
Is training and consumables provided?
Free factory training for technicians. Long-term supply of original consumables and accessories.
