Advantages
Top-tier Hardware, Ultra-stable, Silent & High-precision — Equipped with Honson mainboard, Leadshine servo motor, silent THK guide rail, professional UV water-cooling system and threaded rod transmission structure. The optimized structure ensures low-noise, jitter-free and stable operation with precise positioning.
High-speed Printing with Consistent High Definition — Supported by calibrated hardware and stable transmission, the machine supports continuous high-speed printing. It delivers clear and delicate outputs without blurring, ghosting or misalignment, balancing speed and quality to boost mass production efficiency.
Customizable Printheads for All Production Capacity — Optional 3 or 4 original Epson printheads (XP600/I1600/I3200) with flexible modular configuration. It adapts to small-batch trial production and large-scale mass production with excellent cost performance.
Multi-functional & Multi-scenario Application — Supports UV DTF film, 3D UV, glue-dropping UV, flat and cylindrical curved surface printing. Compatible with most materials and special-shaped workpieces, covering diverse industry needs and expanding business scope.
Intelligent Visual Positioning for Fully Automatic Operation — Optional HD visual positioning system realizes automatic workpiece recognition without manual alignment. It reduces human errors, simplifies operation, and improves printing accuracy and efficiency for standardized refined mass production.
Quick Specifications
Product Specifications
| Parameter | Value |
|---|---|

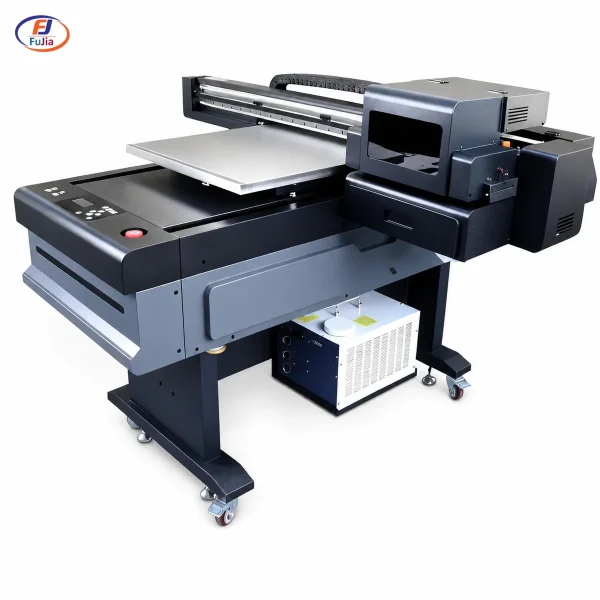

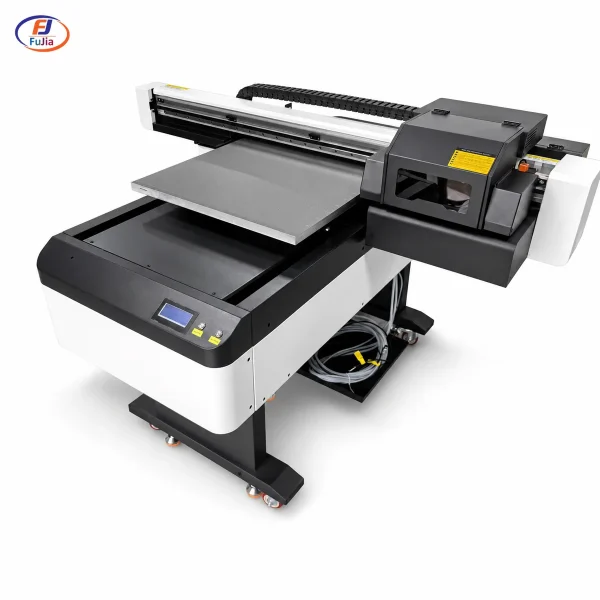

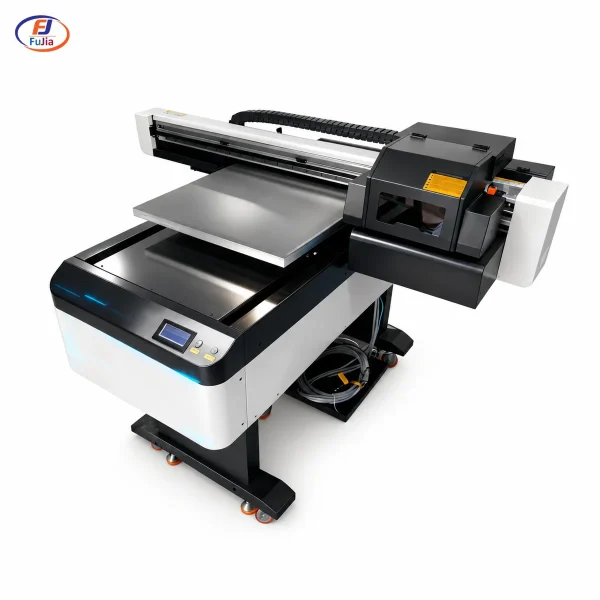

| Model | FuJia A1-6090 UV Flatbed Printer |
| Product Overview | The FuJia A1-6090 UV flatbed printer is a multi-functional, high-precision, commercial-grade UV printing device that supports flat, cylindrical, and roll-to-roll multi-material printing. The equipment provides 3/4 printhead optional configurations, equipped with high-performance Epson and Ricoh industrial printheads, combined with a water-cooled UV curing system and intelligent negative/positive pressure ink supply system. It achieves high-precision color, white ink, varnish, embossing, 3D drip coating and other special process effects. Widely used in personalized customization, advertising crafts, garment UV DTF transfer, gift and cultural creative industries. |
| Basic Parameters. Print Format | 600 × 900 mm (23.62 × 35.43 inch) |
| Basic Parameters. Print Height | 0–200 mm |
| Basic Parameters. Optional Printhead Configurations | 3 printheads / 4 printheads; Optional Epson XP600, I1600, I3200, Ricoh G5I |
| Basic Parameters. Printhead Working Height | 2–3 mm |
| Basic Parameters. Print Pass Settings | 6Pass / 8Pass |
| Basic Parameters. Print Speed (I3200 U1) | 6Pass (720×1800dpi): 8 sqm/hr | 8Pass (720×2400dpi): 6 sqm/hr |
| Basic Parameters. Resolution | 720×720 dpi, 720×1080 dpi, 720×1440 dpi, 720/1440/2880/5760 dpi |
| Basic Parameters. Color Configuration | CMYK 4-color + White (W) + Varnish (V) full-color output |
| Basic Parameters. Optional Color Configurations | 4-color, 6-color: Cyan, Magenta, Yellow, Black, Light Cyan, Light Magenta, with white ink overlay process support |
| Basic Parameters. Print Technology | Variable droplet technology |
| Basic Parameters. Print Direction | Unidirectional / Bidirectional printing |
| Basic Parameters. Moisturizing & Cleaning | Automatic sealed moisturizing, anti-clog flash spray, fully automatic/manual cleaning modes |
| Basic Parameters. Special Print Effects | Embossing effect, gloss varnish surface, 3D UV drip coating, textured 3D surface effects |
| Equipment Structure & Hardware. Printing Platform | Reinforced 3.5cm double steel plate honeycomb dual-valve zoned suction platform. Optional tempered glass platform or alloy suction platform. Equipped with intelligent auto height limit system. |
| Equipment Structure & Hardware. Transmission System | X-axis single guide rail + motor, Y-axis dual guide rails + motors. Equipped with dual THK silent guide rails, variable-frequency motor, widened and thickened base beam. Stable machine operation with minimal vibration. |
| Equipment Structure & Hardware. Lifting Control | Auto height limit, manual/auto height adjustment. |
| Equipment Structure & Hardware. Printhead Protection | Intelligent auto anti-collision protection. Effectively protects printheads and reduces wear. |
| Equipment Structure & Hardware. Ink Supply System | Standard fully automatic siphon positive-pressure ink supply system (with suction function). Custom upgrade to negative-pressure ink supply system available. Single cartridge capacity: 1,000ml. Stable ink supply without interruption. |
| Equipment Structure & Hardware. Curing System | LED UV water-cooled curing lamp. Greatly improves curing efficiency and extends lamp lifespan. |
| Equipment Structure & Hardware. Temperature Control System | Optional ink heating anti-freeze system for low-temperature operations. |
| Equipment Structure & Hardware. Power System | High-precision Leadshine servo motor. |
| Equipment Structure & Hardware. Optional Smart Features | Optional auto visual positioning scanning system for precise positioning and automatic irregular object printing. |
| Ink Types & Compatible Processes | Supports hard UV ink, neutral UV ink, and soft UV ink. Adapts to different material hardness, adhesion, and weather resistance requirements. Supports flatbed printing, UV DTF transfer, garment printing, and multi-scenario production. |
| Software & System Compatibility. Supported Image Formats | JPG, PNG, BMP, EPS, PDF (universal formats). |
| Software & System Compatibility. Compatible RIP Software | RIIN, Maintop, Photoprint, Flexi. |
| Software & System Compatibility. OS Compatibility | 64-bit Windows XP / Win7 / Win10 / Win11. |
| Software & System Compatibility. Operation Language | Chinese, English bilingual switching. |
| Software & System Compatibility. Connection Interface | High-speed USB 3.0, Gigabit Ethernet. Stable transmission, no lag during printing. |
| PC Requirements. System | 64-bit Windows 10, NTFS file system. |
| PC Requirements. C Drive Free Space | ≥100GB. |
| PC Requirements. Hard Disk | WD500G or above. |
| PC Requirements. Graphics Card | ATI dedicated GPU, 4GB VRAM or above. |
| PC Requirements. Processor | Intel 5th Gen Quad-Core / i7 or above. |
| PC Requirements. Accessories | Dual drive, Gigabit NIC. |
| Working Environment. Standard Working Temperature | 18℃–30℃. |
| Working Environment. Standard Working Humidity | 35%–65% RH. |
| Working Environment. Equipment Noise | Minimum <32 dB, maximum ≤65 dB. Silent operation suitable for factory and studio use. |
| Power & Dimensions. Rated Voltage | 110V/220V, 50–60Hz. |
| Power & Dimensions. Voltage Tolerance | AC 110V (±10%), AC 220V (±10%). |
| Power & Dimensions. Net Weight | 225 kg. |
| Power & Dimensions. Machine Dimensions | 1,550 × 1,760 × 650 mm. |
| Power & Dimensions. Gross Weight (Packaged) | 255 kg. |
| Power & Dimensions. Package Dimensions | 1,800 × 1,850 × 850 mm. |
| Power & Dimensions. Origin | Guangzhou, China. |
| Compatible Printing Materials | Phone cases, leather, acrylic, glass, wood, PVC cards, metal sheets, PP, PE, fabric, cups, cylinders, wine bottles, UV DTF AB film and other flat and irregular materials. Supports batch customization and personalized pattern printing. |
| Core Advantages 1 | Multi-printhead freely selectable: 3/4 printhead solutions available, balancing startup entry and batch production needs, significantly lowering UV printing startup barrier. |
| Core Advantages 2 | Water-cooled UV curing system: stable heat dissipation, long-lasting lamp efficiency, uniform curing, effectively improving finished product color saturation and adhesion. |
| Core Advantages 3 | Reinforced honeycomb suction platform + silent guide rails and variable-frequency motor: solid machine structure, high-speed printing without vibration, high yield rate. |
| Core Advantages 4 | Intelligent anti-clog flash spray, automatic moisturizing, auto anti-collision design: reduces printhead wear, simple equipment maintenance, stable operation. |
| Core Advantages 5 | Supports flat, cylinder, roll-to-roll multi-mode printing, paired with white ink, varnish, embossing 3D processes, wide application scenarios. |
| Core Advantages 6 | Optional vision positioning system: adapts to complex irregular workpiece printing with precise alignment and zero deviation. |
| Core Advantages 7 | Compatible with dedicated hard/neutral/soft UV inks: compatible with various process requirements, meeting gift factory batch order self-production needs. |
| Warranty. Full Machine | 12 months |
| Warranty. Main Board | 12 months |
| Warranty. Consumables Exclusion | Printheads, dampers, cables, ink caps are consumables and not covered by warranty. |
| Warranty. Special Notice | Ink system, printheads, ink caps of F1/F2/F4 series not included in warranty. |
| After-Sales. Service 1 | Free standard spare parts provided. |
| After-Sales. Service 2 | Professional engineering team online technical support. |
| After-Sales. Service 3 | 18+ years of printing equipment industry experience. |
| After-Sales. Service 4 | Pre-sales team provides complete quotes and customization for UV flatbed, UV DTF, sublimation, eco-solvent equipment. |
| After-Sales. Service 5 | Free on-site practical training at factory. |
| After-Sales. Delivery & Cooperation 1 | Standard models always in stock, fast shipping. |
| After-Sales. Delivery & Cooperation 2 | Multiple international payment methods supported, including Alibaba Trade Assurance. |
| After-Sales. Delivery & Cooperation 3 | Full range of spare parts long-term supply. Complete after-sales system. Suitable for long-term foreign trade cooperation. |
Product Details
Engineered with premium components for industrial-grade reliability.

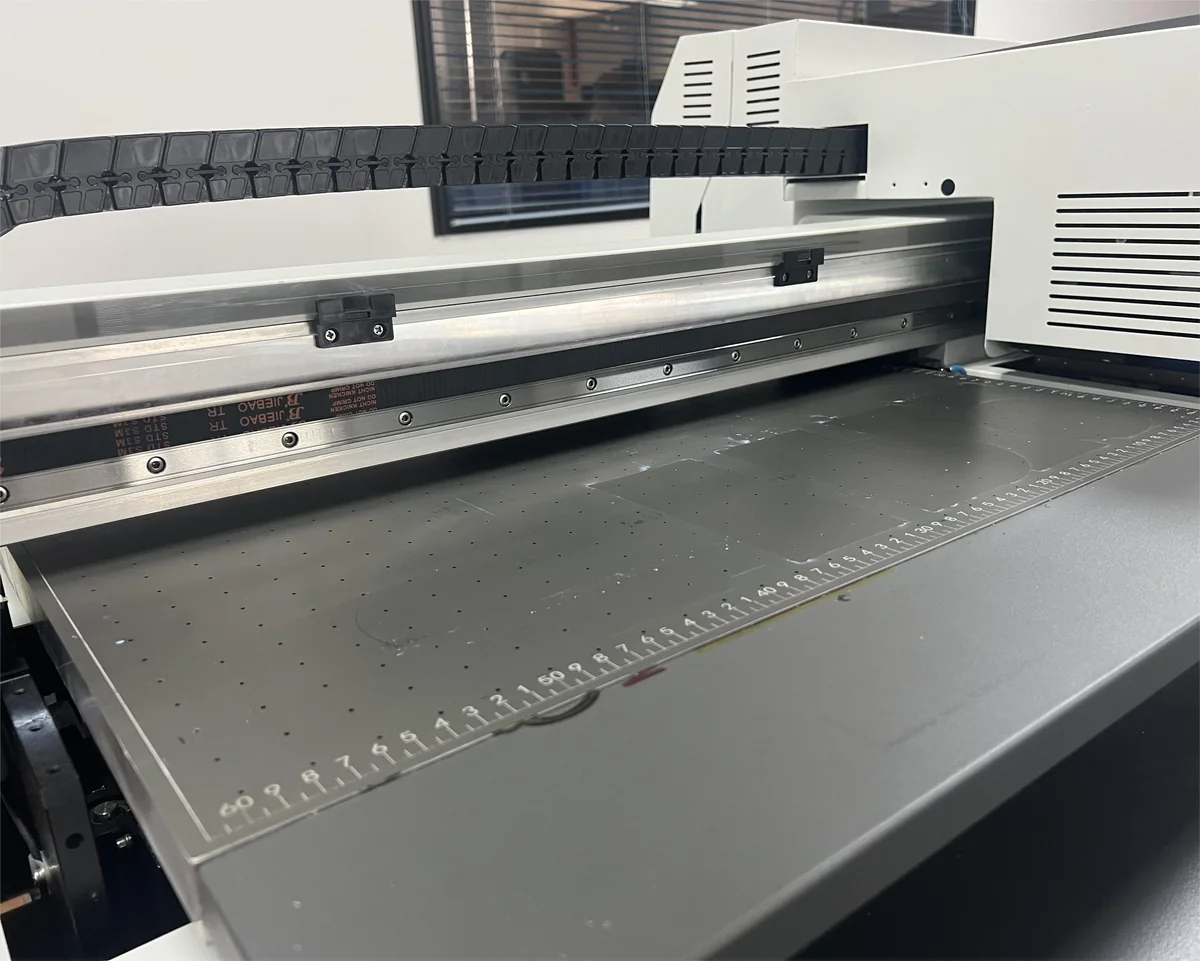

The device is equipped with a
The device is equipped with a bidirectional Leadshine integrated brushless servo motor and a high-precision linear decoder driver, which features high precision, low vibration, small tolerance, and strong stability, ensuring stable and reliable power output from the printhead.
Built-in 2mm suction holes and powerful
Built-in 2mm suction holes and powerful fans firmly hold the print media in place. Equipped with high-performance UV lamps, the device enables rapid UV curing.

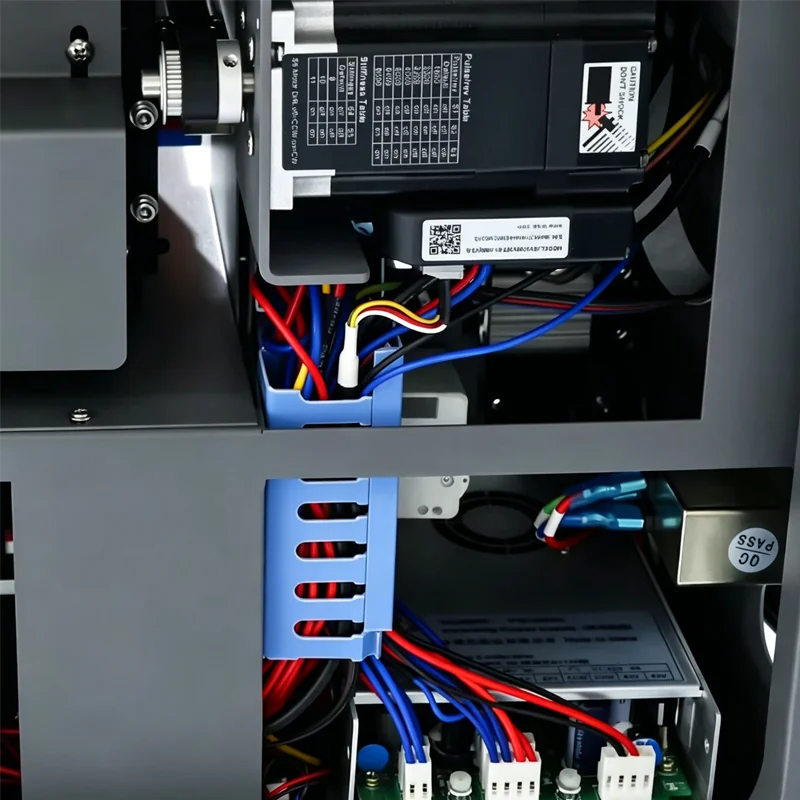

Fitted with Honson control board and
Fitted with Honson control board and Mean Well power unit for superior accuracy and stable performance.

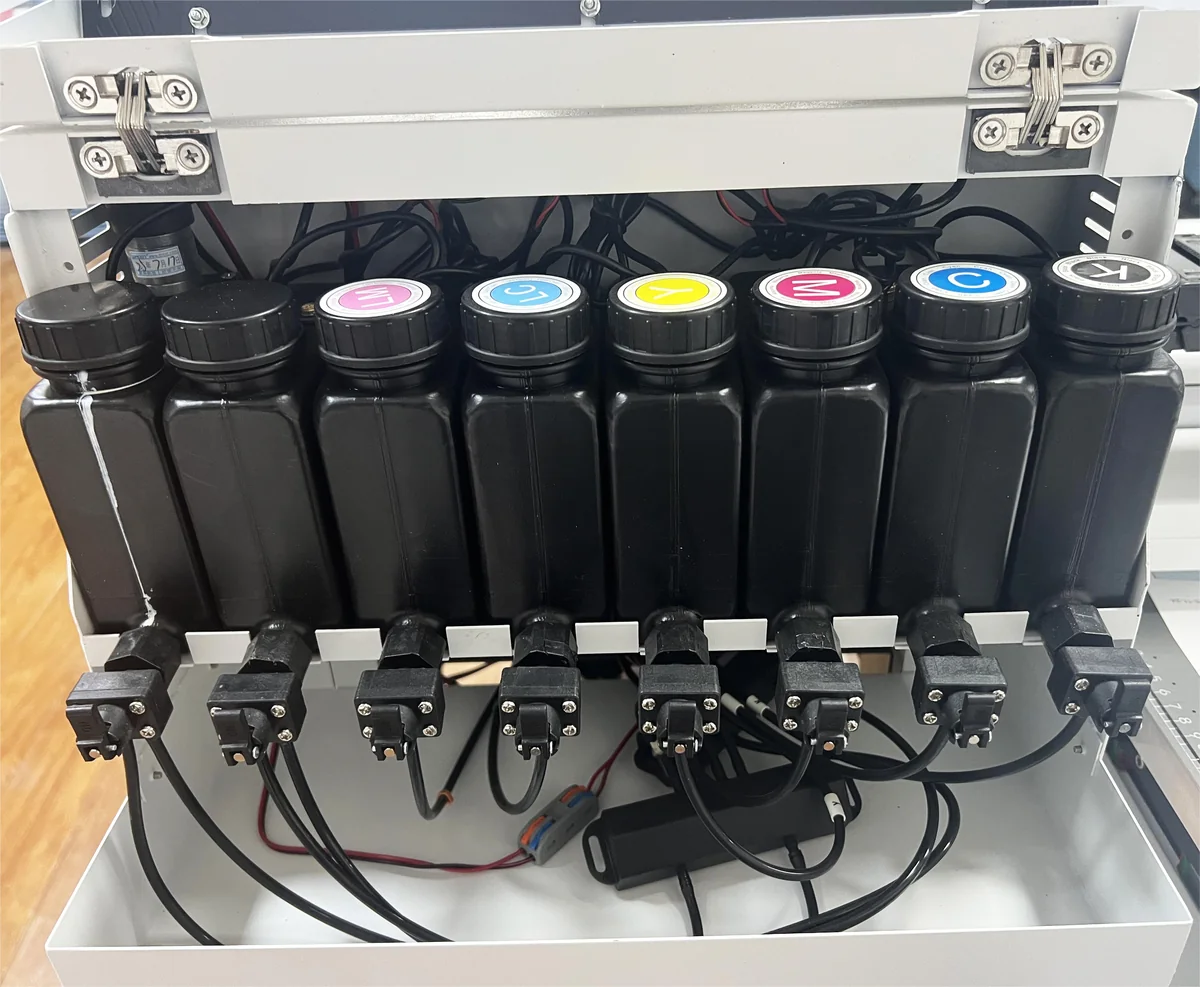

The ink cartridge is fitted with
The ink cartridge is fitted with low-ink alarm. The white ink circulation function ensures the printer operates safely.

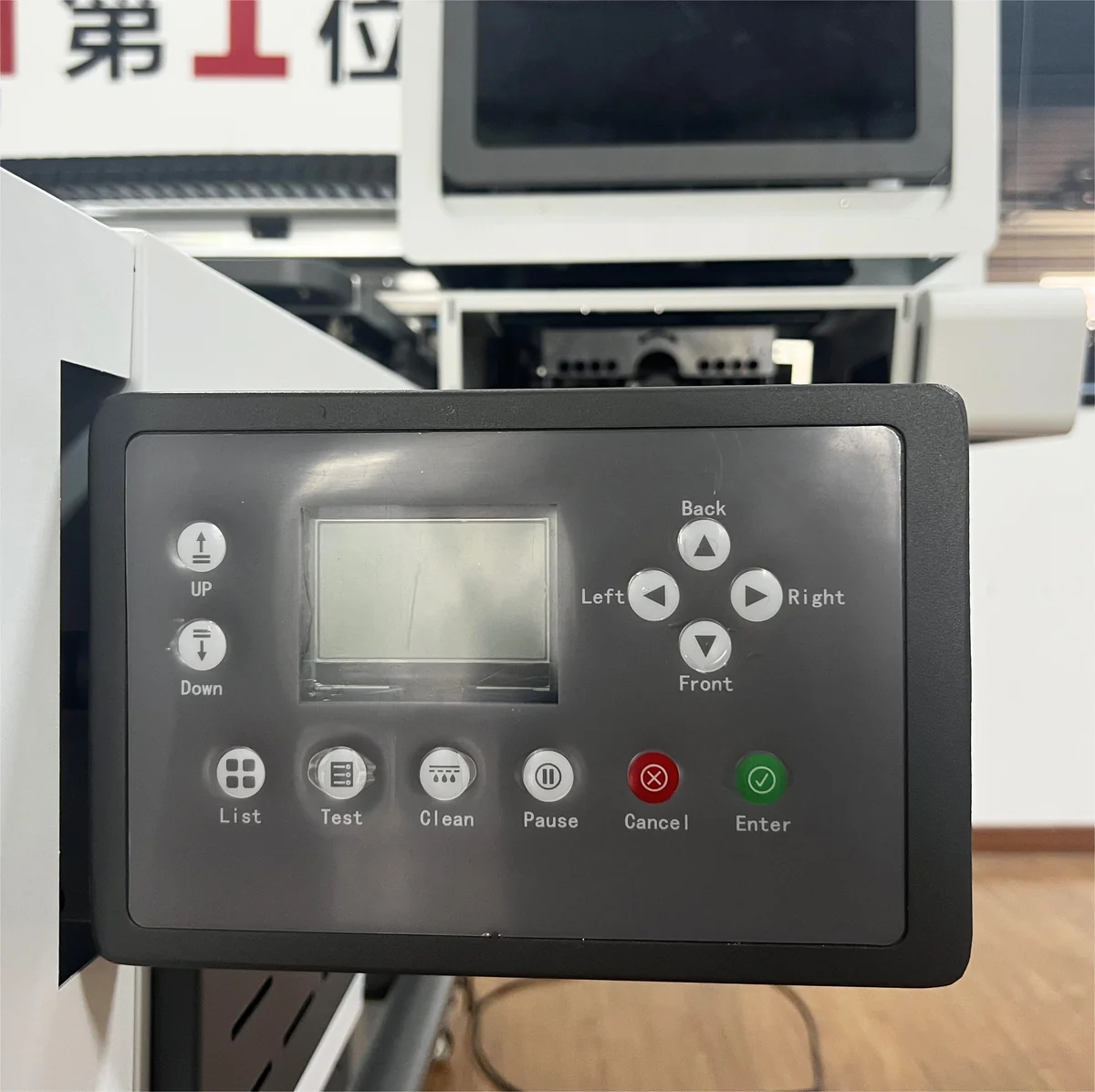

Featuring an advanced smart control panel
Featuring an advanced smart control panel for one-touch operation of paper handling and print head maintenance. Built-in smart sensors track temperature and humidity round the clock, keeping the printer running reliably at all times.
Equipped with lifting motor and ink
Equipped with lifting motor and ink suction pump, the ink station seals and moisturizes print heads to prevent clogging. It is compatible with 3 or 4 print heads as optional configuration, greatly expanding the printer’s application scope.
The dual-motor system coordinates the movements
The dual-motor system coordinates the movements of the print head and bottom platform for precise synchronization. With superior tension control and speed synchronization, the X and Y axes operate stably and efficiently.

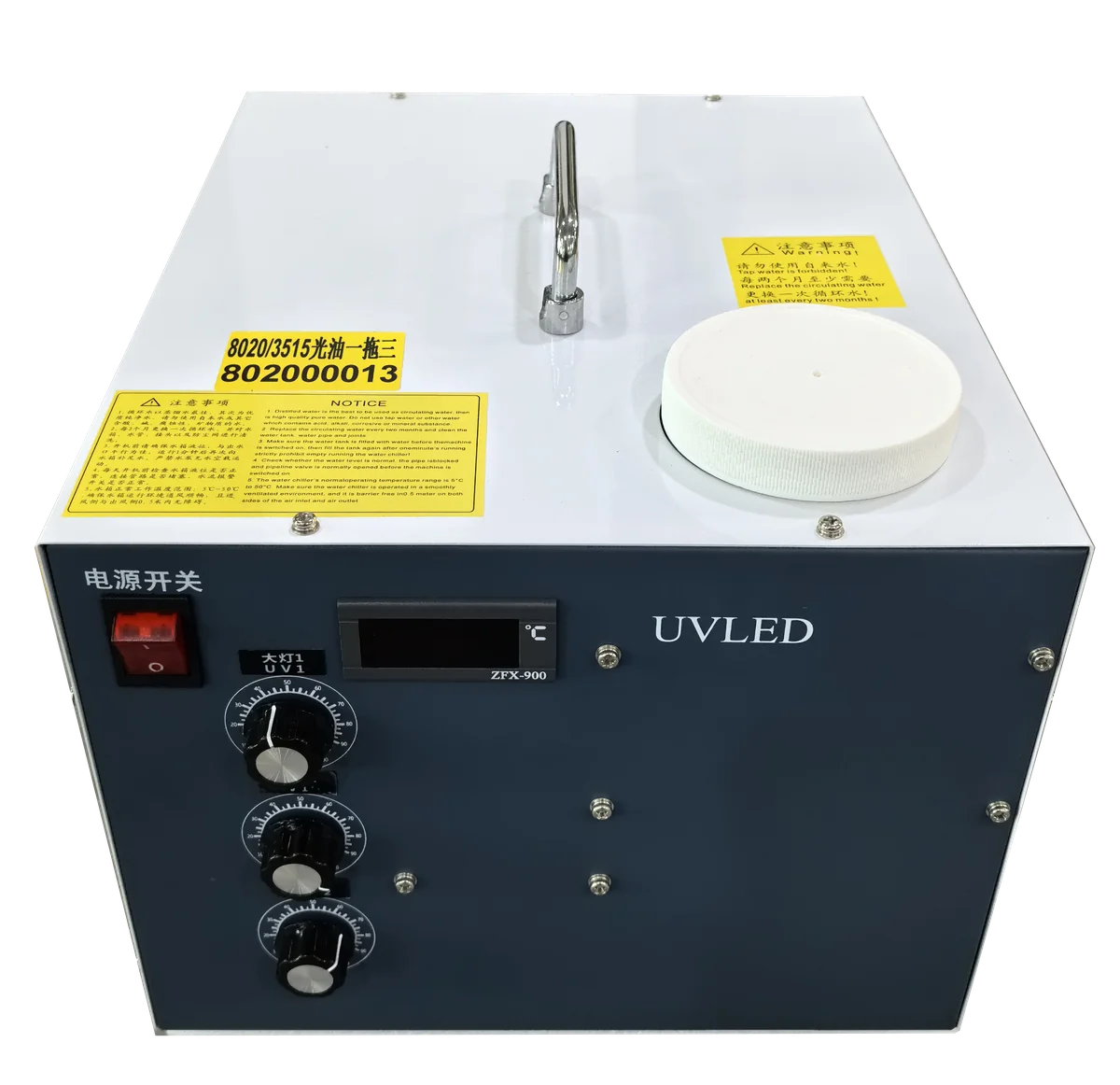

Fitted with high-quality water-cooled UV lamp
Fitted with high-quality water-cooled UV lamp assembly, it ensures stable and efficient operation of UV lamps and extends their service life. It also improves UV curing efficiency and quality, thus delivering better printing results.
How to Choose Your UV Flatbed Printer
Compare our A1 UV Flatbed printer with other models in the FuJia lineup.
| Feature | UV A1 6090 | UV A1 4060 |
|---|---|---|
| Print Format | 600x900mm | 400x600mm |
| Print Head | 3-4x Epson | 2-3x Epson |
| Max Speed | 8 sqm/hr | 6 sqm/hr |
| Best For | Industrial production | Small shops |
UV Printing Process
1.Graphic Layout & Color Separation
Complete artwork color separation and set customized printing parameters for white ink, colored inks and varnish.
2.Substrate Material Loading
A. Fit release liner (Base Film A) onto the printer’s unwind roller;
B. Mount clear transfer film (Film B) to the front feed reel of the printer.
3.UV Digital Inkjet Printing
Applications
Applications include: water cups, wine glasses, phone cases, laptops, metal/wood/acrylic materials, door and window stickers, decorative paintings, tableware, vehicle wraps, cosmetic bottles, gift boxes, jewelry boxes, etc.
What's in the Box
Compatible Consumables
Use FuJia-certified consumables. Browse all UV consumables.
| Consumable | Specification | Replacement Cycle |
|---|---|---|
| UV Ink (Hard) | 1,000ml bottle | As consumed |
| UV Ink (Soft) | 1,000ml bottle | As consumed |
| UV Varnish | 1,000ml bottle | As consumed |
OEM & ODM Customization
Custom Branding
Logo printing on machine body, control panel, packaging, and user manuals.
Hardware Customization
Adjustable print format, printhead configuration, color options, voltage specs.
Software Customization
Pre-installed RIP software, custom UI language packs, operation manuals.
Packaging Design
Custom-branded wooden cases, foam inserts, and accessory packaging.
After-Sales Service
Global Shipping & Fast Delivery
- Export to 60+ countries worldwide
- Wooden case packaging
- Sea, air, rail & express
- EXW / FOB / CIF / CFR
- Fast lead time
- Full logistics tracking
Technical Support
- Dedicated representative
- 7×24 online support
- Spare parts inventory
- Firmware upgrades
- Free on-site training
- OEM/ODM project support
Warranty Terms
Main machine & mainboard covered.
Consumables excluded: printheads, dampers, cables, ink caps.
About FuJia
DTF, UV, DTG, ECO Solvent, Sublimation.
Sea, air, rail and express shipping.
Standard models stocked year-round.
Free on-site training at Guangzhou factory.

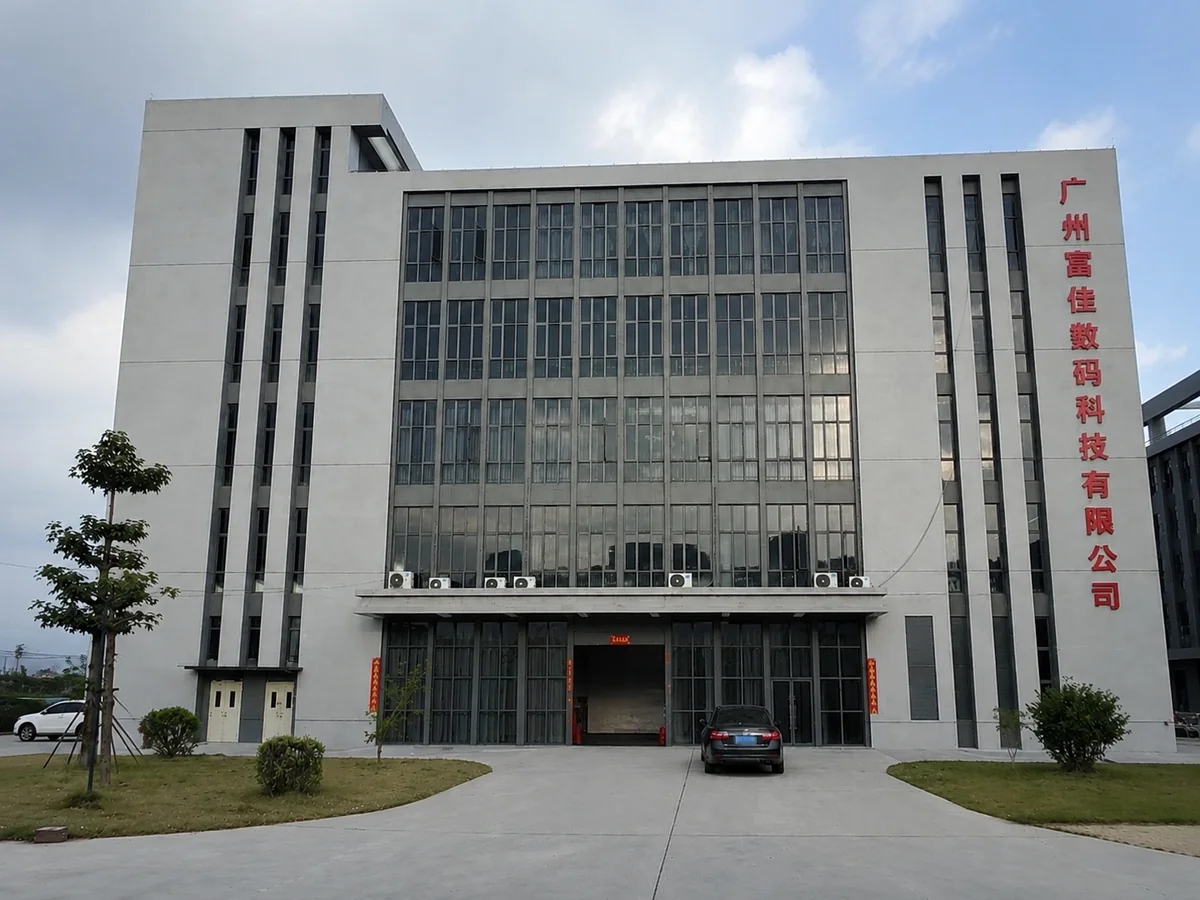

Factory Entrance
Headquarters
Showroom
Our TeamQuality Assurance & Factory Tour
Every FuJia printer undergoes rigorous testing before shipment.

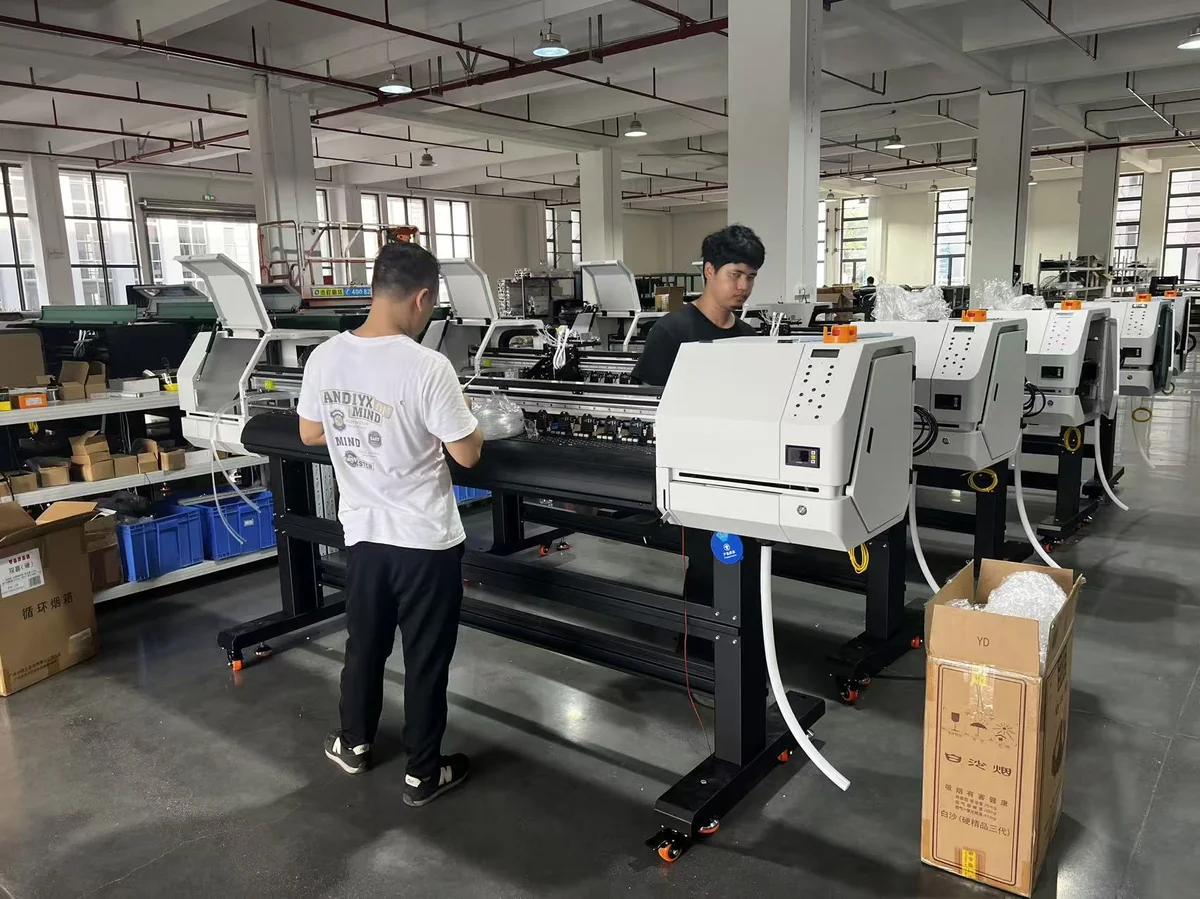

Assembly
QC
Testing

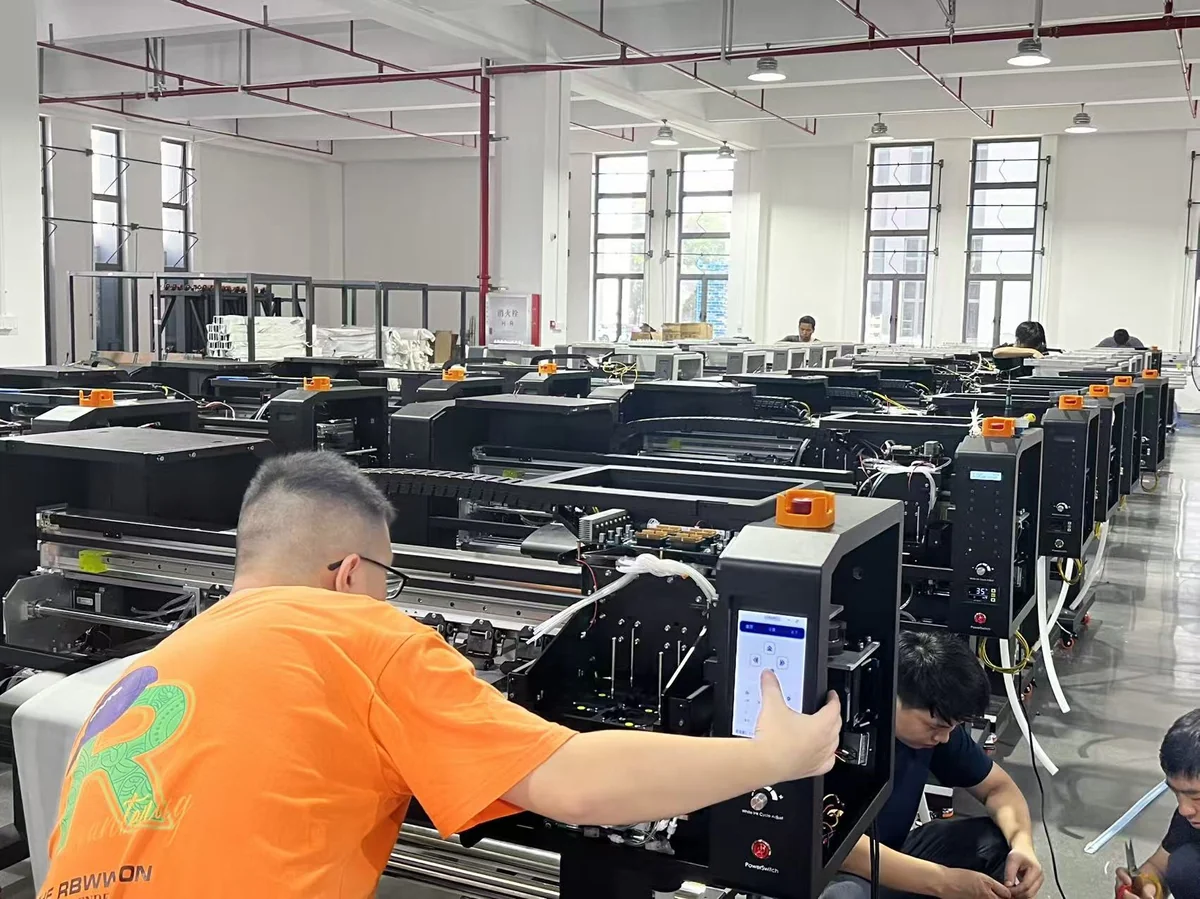

Pre-Shipment

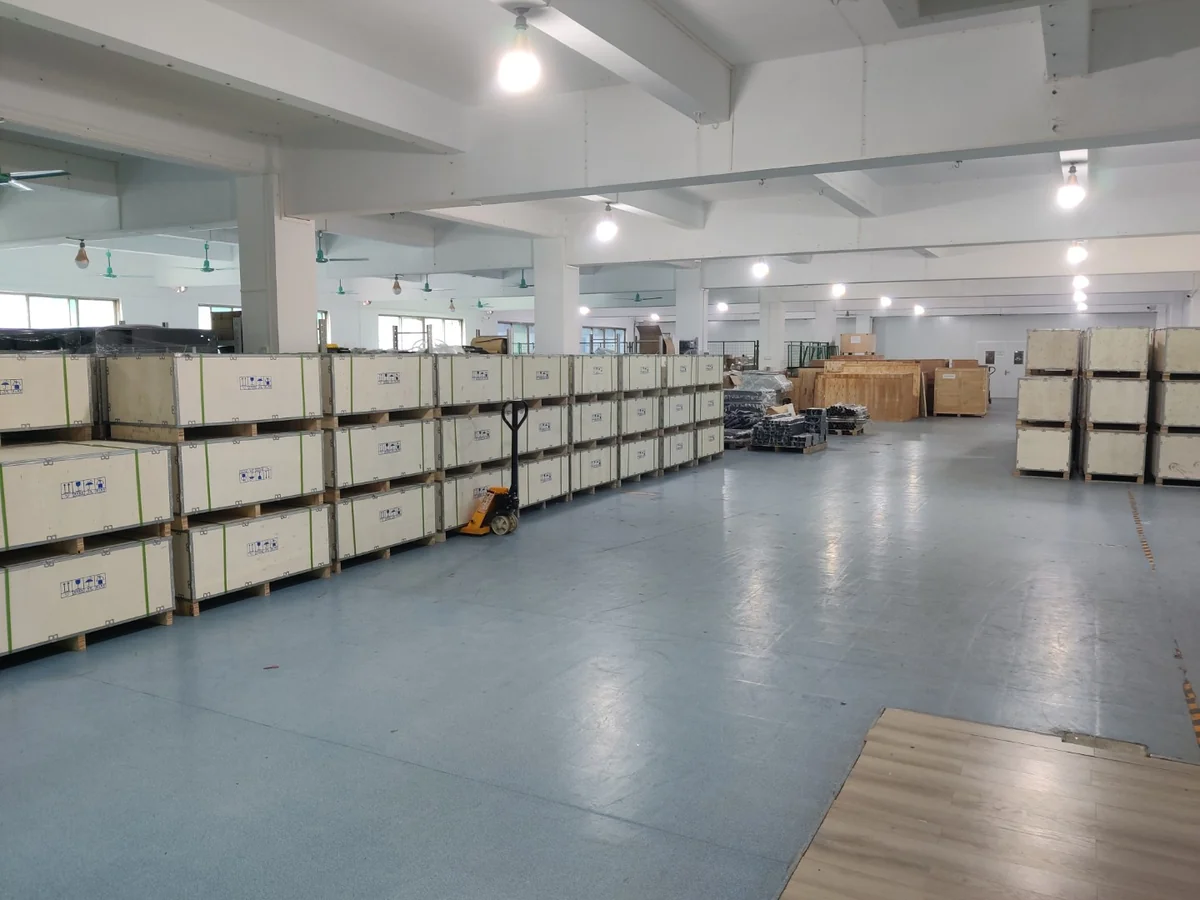

Warehouse
PackagingCertifications & Compliance
FuJia products meet international quality and safety standards.
Comply with EU standards.
Certified quality management.
Verified supplier.
Independent verification.
Learn More
Frequently Asked Questions
What are the core advantages of this UV flatbed printer?
Significantly lowers UV printing barrier. Low-cost commercial batch production for personalized customization and gift orders. Stable, easy to maintain, excellent cost-performance.
What printhead does it come with?
Standard Epson printheads — fast, high precision, stable for long-term high-quality commercial orders.
What businesses is it suitable for?
Individual entrepreneurs, small processing factories, advertising customization companies, gift manufacturing enterprises.
What materials and inks are compatible?
Compatible with most flat objects, cylinders, UV DTF AB film. Supports soft, neutral, and hard UV inks with wide material compatibility.
How is maintenance handled?
Mature ink circulation system, low failure rate. Remote guidance, maintenance tutorials, long-term spare parts supply.
What is the delivery time?
Standard models stocked year-round. 3–10 working days after deposit.
What payment methods?
T/T, D/P, Western Union, credit card, Alibaba Trade Assurance.
How to handle equipment failure?
7×24 online technical support. Provide photos or videos for remote diagnosis and repair.
How to replace damaged parts?
Full spare parts supply. Return old parts for replacement. Spare parts kit available.
Is on-site training available?
Yes, customers can send technicians for free hands-on training at our factory.
Do you provide full consumables and accessories?
Yes, original high-quality consumables and full equipment accessories for stable long-term production.
