Advantages
Premium Transmission System, Fast, Precise & Quiet — Adopts Honson mainboard, Leadshine servo motor and THK silent guide rail for stable, low-noise operation. It delivers accurate positioning and sharp, clear prints even at high printing speeds with zero offset or blurring.
Automatic White Ink Circulation, No Printhead Clogging — Built-in automatic white ink circulation prevents ink sedimentation and solidification, eliminating nozzle blockage. It enables stable, long-term non-stop batch production for higher productivity.
Smart Protection System, Minimize Waste — Equipped with high-precision grating and ink shortage auto-alarm for real-time status monitoring. It avoids empty printing and defective outputs, reducing material waste and production costs.
Reinforced Frame, Stable & High-precision Printing — Reinforced structural design greatly reduces vibration. It ensures ultra-quiet, stable operation and consistently delicate, high-precision printing results during long mass production runs.
Compact & Cost-effective, Ideal for Startups — Lightweight & portable for single-person movement and desktop placement. It supports flexible pairing with powder shakers and mini ovens. With low investment cost and high adaptability, it perfectly fits small studios and startup businesses.
Quick Specifications
Product Specifications
| Parameter | Value |
|---|---|

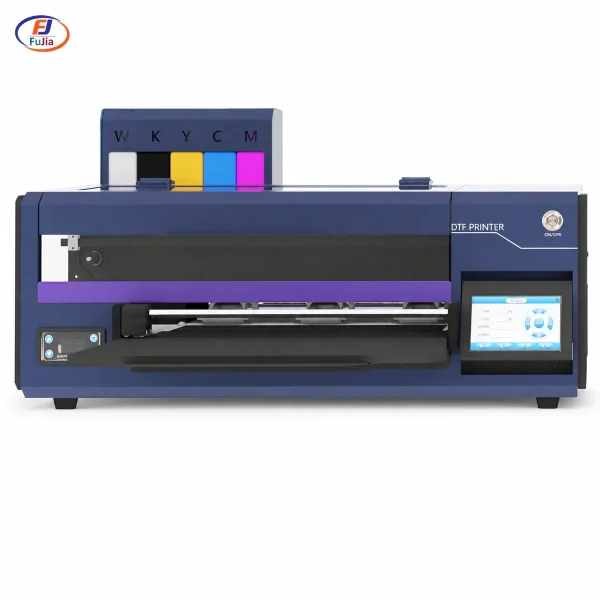

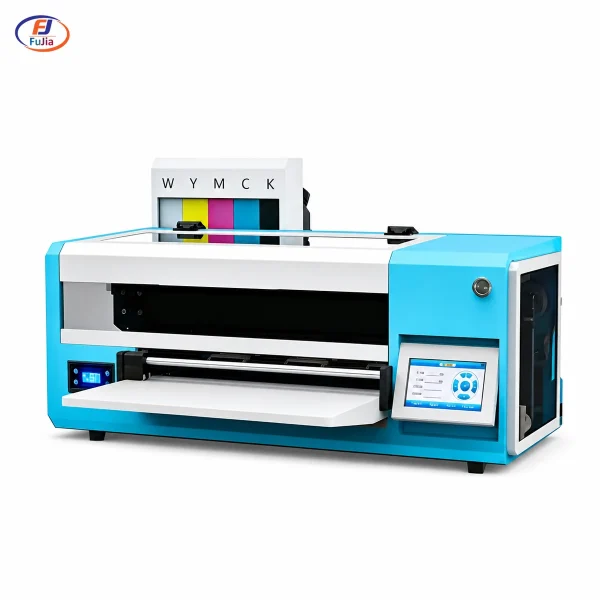

| Model | A3-Desktop DTF Printer |

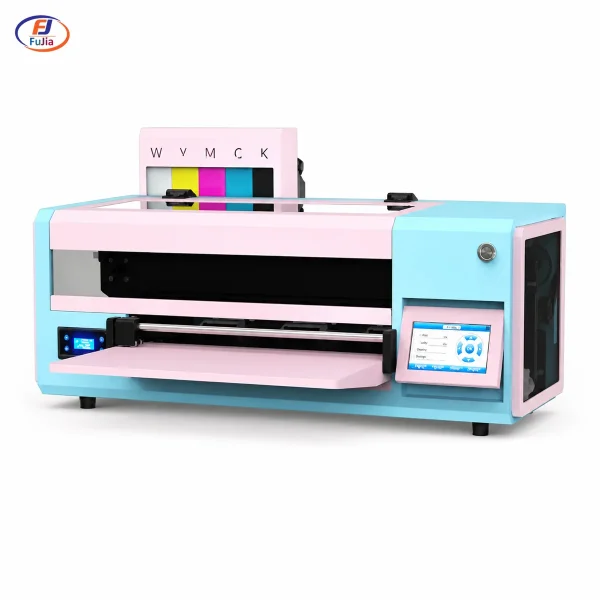

| Product Overview | Desktop A3 DTF printer with XP600 printhead, 12 inch / 33cm print width. Affordable, space-saving design, ideal for beginners. |
| Print System. Print Head | 1 Epson XP600 |
| Print System. Print Width | ≤330mm (13 inch) |
| Print System. Print Speed | 720×1080dpi: 1.1 sqm/hr | 720×1440dpi: 0.8 sqm/hr |
| Print System. Ink Type | CMYK + White |
| Print System. RIP Software | RIIN |
| Ink System. Ink Capacity | 260ml per color (CMYK+W), 500ml waste ink bottle |
| Ink System. Ink Type | CMYK+W (Cyan, Magenta, Yellow, Black + White) |
| Media. Printable Media | Plain paper, heat transfer paper, PET DTF transfer film |
| Media. Compatible Fabrics | Nylon, polyester, cotton, leather, swimwear, PVC, EVA |
| Operating Environment. Temperature | 18℃–28℃ (64.4°F–82.4°F) |
| Operating Environment. Humidity | 50%–60% |
| Power. Power Supply | 220V/110V |
| Power. Rated Power | 60W |
| Power. Max Power | 150W |
| Body. Machine Dimensions | 76 × 34 × 28 cm |
| Body. Package Dimensions | 86 × 45 × 38 cm |
| Body. Net Weight | 20 kg (44 lbs) |
| Body. Gross Weight | 30 kg (66.13 lbs) |
| Interface | Gigabit Ethernet |
| OS Support | Windows 10/11 |
| Included Items 1 | Printer (with printhead) ×1 |

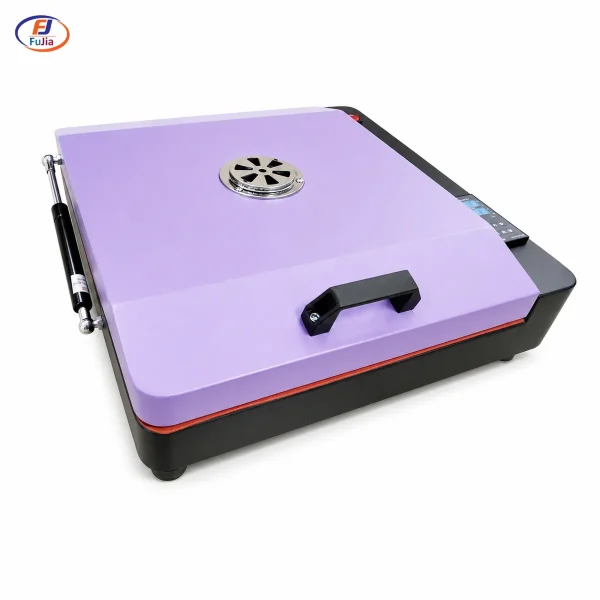

| Included Items 2 | Curing oven ×1 (max DTF film: 30×43cm; upgrade to A3 shaker +$100, max width 33cm) |

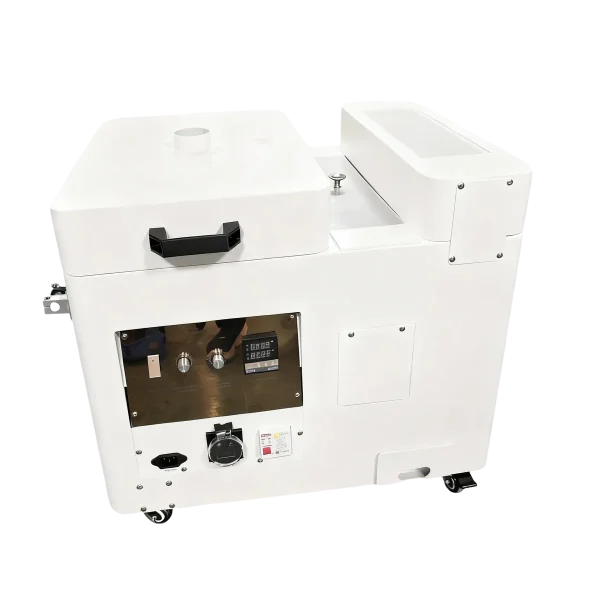

| Included Items 3 | Mini smoke filter ×1 |
| Included Items 4 | RIIN RIP software ×1 |
| Included Items 5 | DTF ink (CMYK) 0.5kg ×4 bottles |
| Included Items 6 | White ink 1kg ×1 bottle |
| Included Items 7 | Moisturizing liquid 1kg ×1 bottle |
| Included Items 8 | Cleaning solution 100ml ×2 bottles |
| Included Items 9 | Ink cartridges ×5 |
| Included Items 10 | Ink cap ×1 |
| Included Items 11 | Cleaning swabs ×50 |
| Included Items 12 | Cleaning cloths ×100 (20×20cm) |
| Included Items 13 | USB adapter card ×1 |
| Included Items 14 | Acetate tape ×1 roll (44cm) |
| Included Items 15 | Printhead cables ×2 |
| Included Items 16 | Syringes ×5 |
| Included Items 17 | Installation tools ×1 set (hex wrench + screwdriver) |
| Maintenance Kit 1 | Printhead cables ×4 |
| Maintenance Kit 2 | Ink pump ×1 |
| Maintenance Kit 3 | Origin sensor ×1 |
| Maintenance Kit 4 | Ink cartridges ×10 |
| Maintenance Kit 5 | Ink pads ×2 |
| Maintenance Kit 6 | Doctor blade ×4 |
| Maintenance Kit 7 | Ink tubes ×5m (5×3mm) |
| Target Users | DIY creators and DTF beginners. Ideal for handmade creators and DTF printing novices who enjoy DIY, want to learn the full DTF process, have similar equipment experience (or willing to learn), use for personal projects, design testing or creative exploration. |
| Important Note | If the printer is idle for more than one week, the printhead may clog due to ink drying. |
| Recommended Workload | Approximately 10 full-color A4 sheets per hour. Daily limit: 100 A4 sheets. Not recommended for mass production or large commercial orders. |
| Brand | FuJia |
| Origin | Guangzhou, China |
| Warranty. Main Machine | 12 months |
| Warranty. Mainboard | 12 months |
| Warranty. Consumables Excluded | Printheads, dampers, cables, ink caps are consumables not covered by warranty |
| Warranty. Special Notice | Ink system, printheads, ink caps of F1/F2/F4 series not covered |
| After-Sales. Service 1 | Free standard spare parts provided |
| After-Sales. Service 2 | Professional engineering team online technical support |
| After-Sales. Service 3 | 18+ years industry experience |
| After-Sales. Service 4 | Pre-sales team provides quotes for DTG, UV DTF, eco-solvent, sublimation, UV flatbed and DTF printers |
| After-Sales. Service 5 | Free on-site practical training at Guangzhou factory for customer technicians |
| After-Sales. Delivery & Payment 1 | Delivery: 3–10 working days after deposit; regular models stocked year-round |
| After-Sales. Delivery & Payment 2 | Payment: T/T, D/P, Western Union, credit card, Alibaba Trade Assurance |
| After-Sales. Delivery & Payment 3 | Spare Parts: Full range of original parts supplied; return damaged parts for new replacements; spare parts kit recommended |
Product Details
Engineered with premium components for industrial-grade reliability.

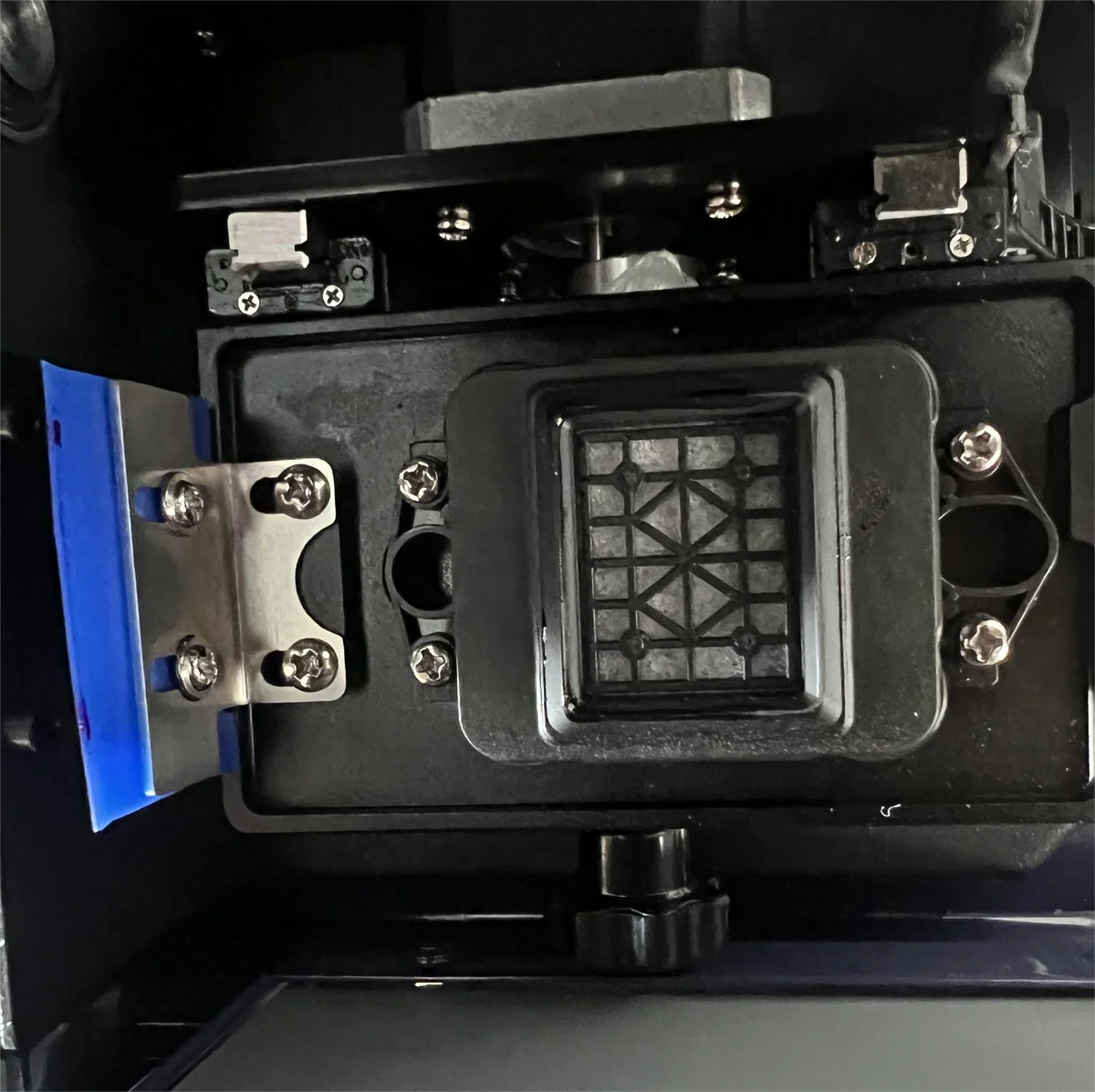

Our smart moisturizing ink cartridge delivers
Our smart moisturizing ink cartridge delivers superior sealing and prolonged moisture retention.
It adopts automatic ink pumping for print head cleaning and moisturizing.
With dual automatic & manual lift functions, it safeguards your print head against dry-out and clogging.
Equipped with dual-direction Leadshine integrated brushless
Equipped with dual-direction Leadshine integrated brushless servo motors and high-precision linear decoding drive, this unit features high accuracy, low vibration, tiny tolerance and outstanding stability. It ensures consistent power for print head and paper movement.

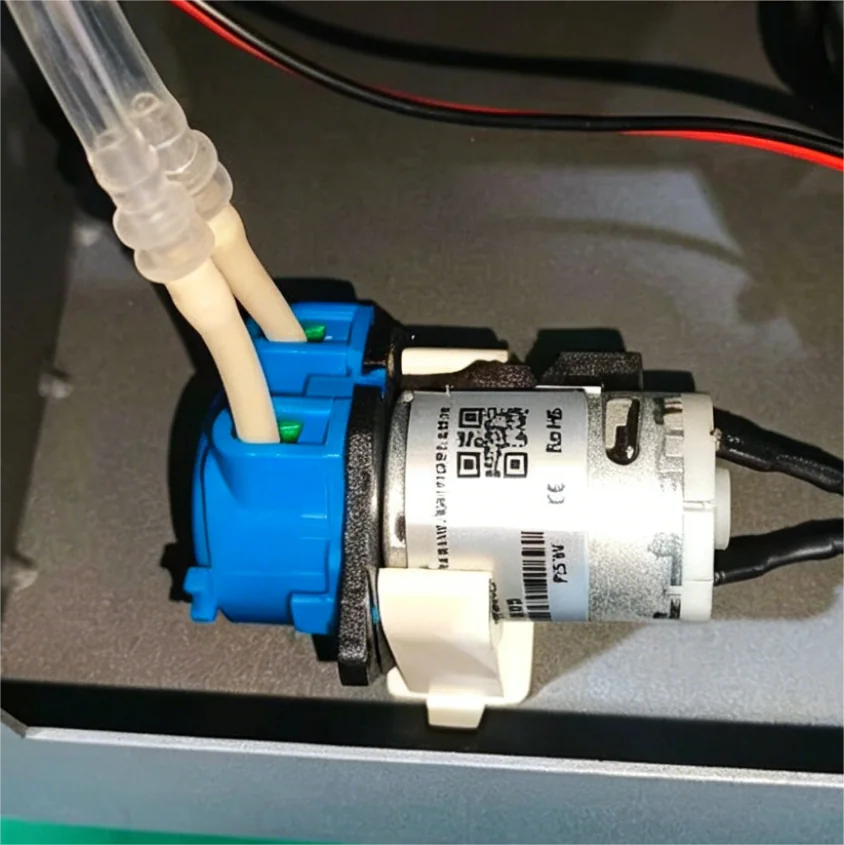

A premium ink pump comes with
A premium ink pump comes with every ink pad. It drains waste ink in time to avoid clogging, and is also used for print head cleaning.

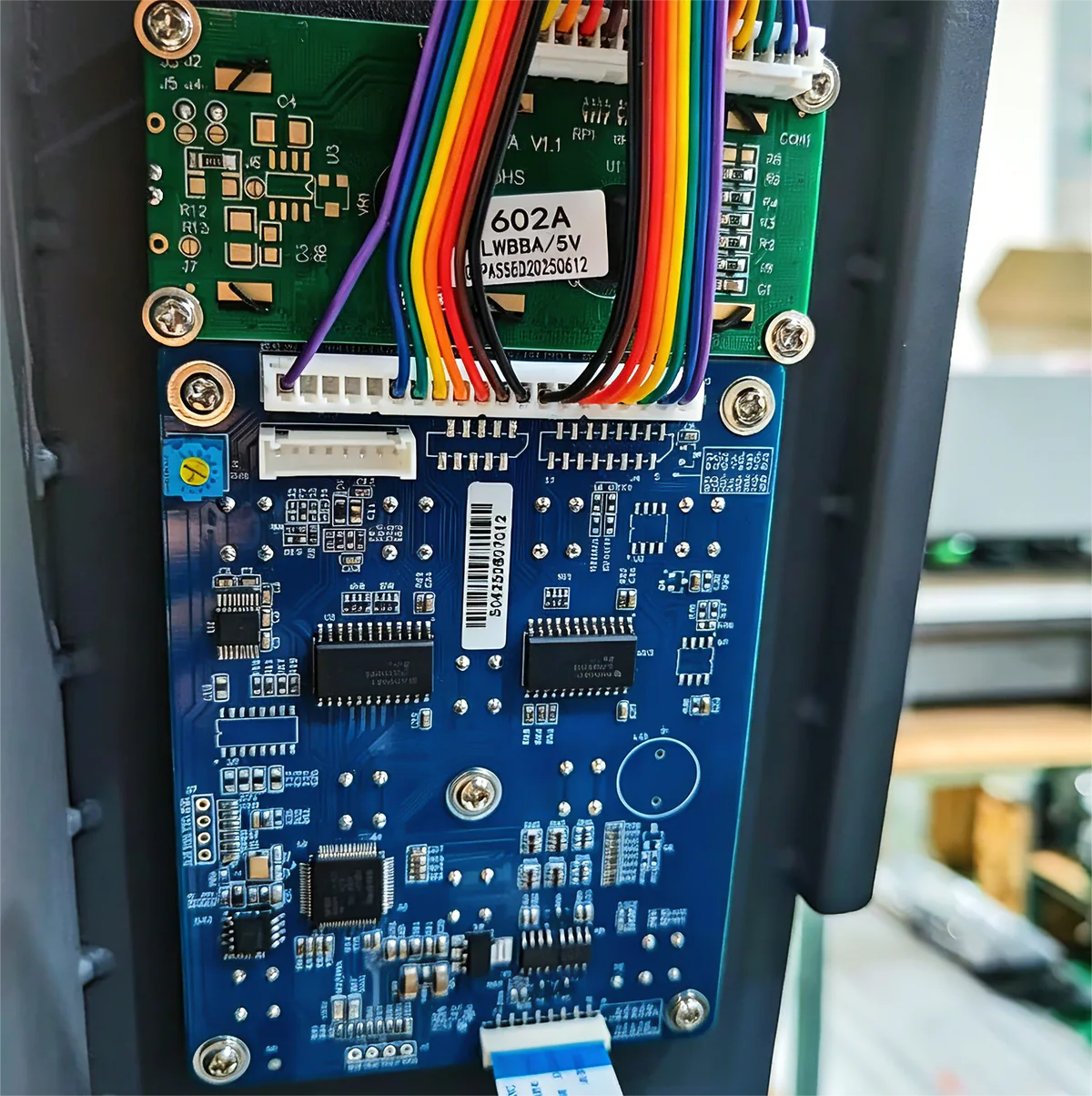

This printer adopts Honson mainboard and
This printer adopts Honson mainboard and Mean Well power supply. These high-quality components deliver outstanding print precision and reliable long-term operation.

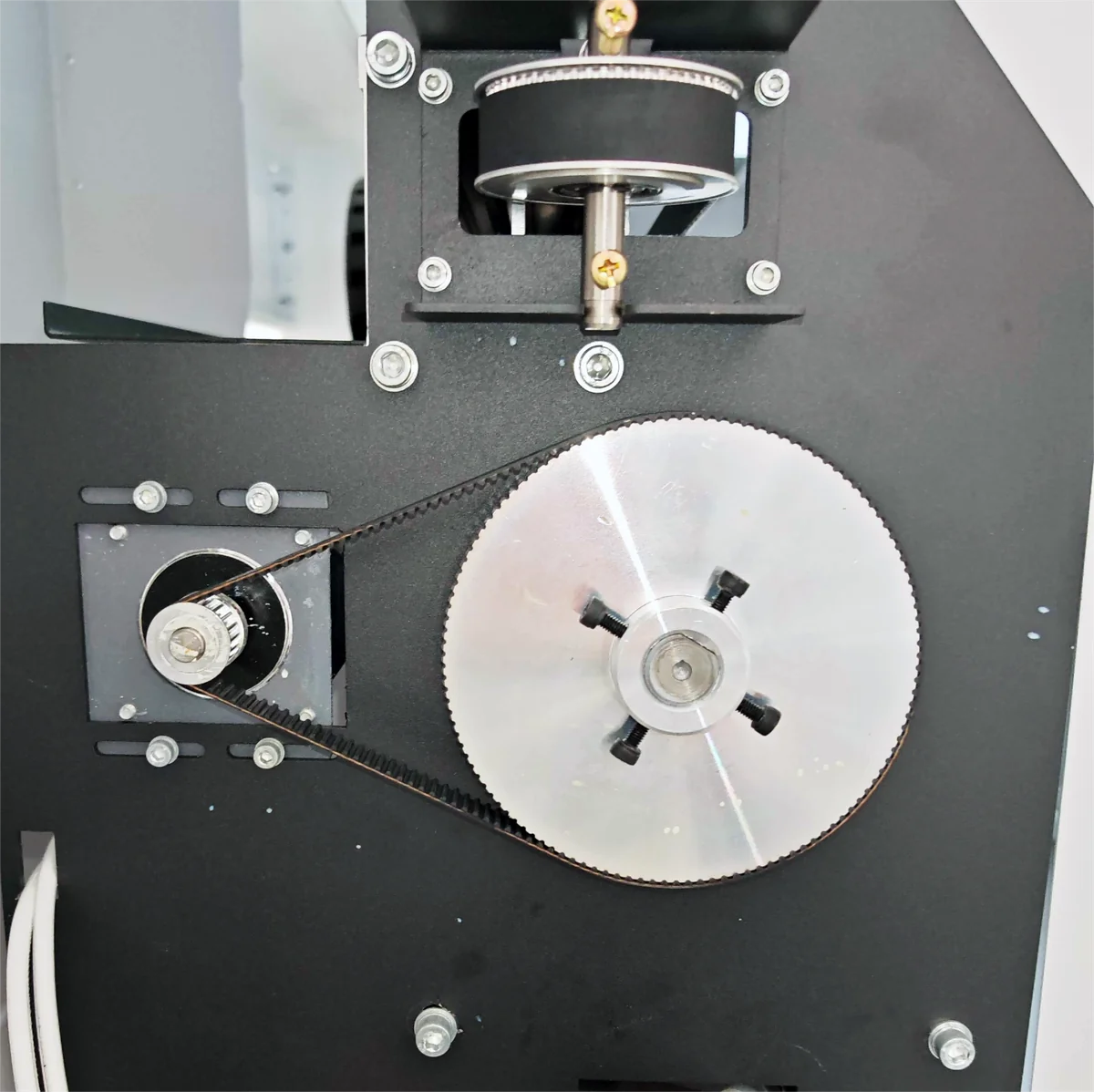

Dual-motor system manages PET film and
Dual-motor system manages PET film and paper reeling. Accurate tension control and speed sync keep the media running smoothly.
Built-in 2mm suction holes and powerful
Built-in 2mm suction holes and powerful fan ensure exceptionally stable paper movement. The imported adjustable press wheels reduce static and ink splashing. They fit various media, stop paper shifting, and maintain consistent printing performance.

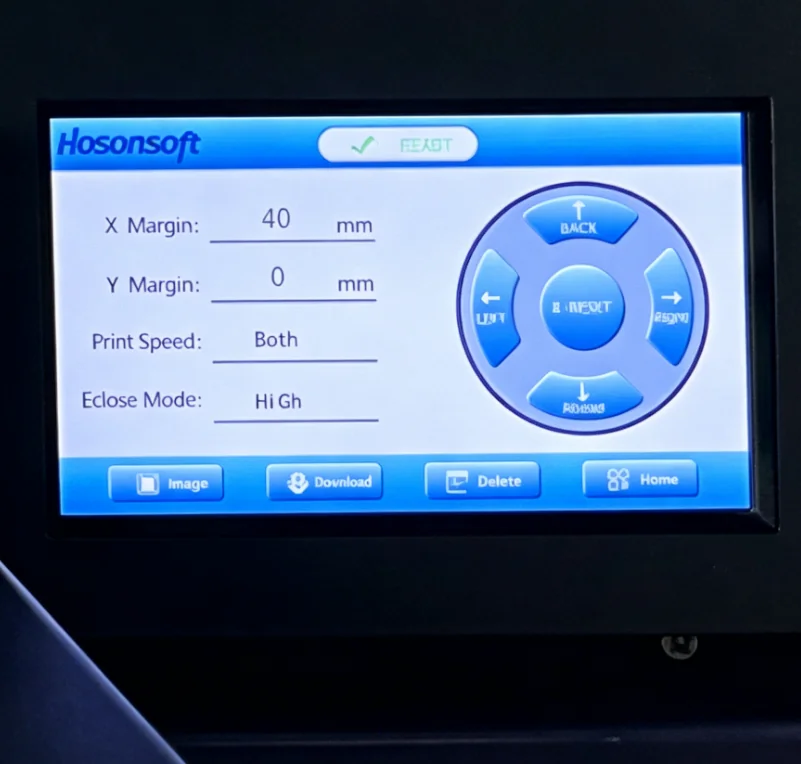

Featuring an advanced smart control panel
Featuring an advanced smart control panel for one-touch operation of paper handling and print head maintenance. Built-in smart sensors track temperature and humidity round the clock, keeping the printer running reliably at all times.

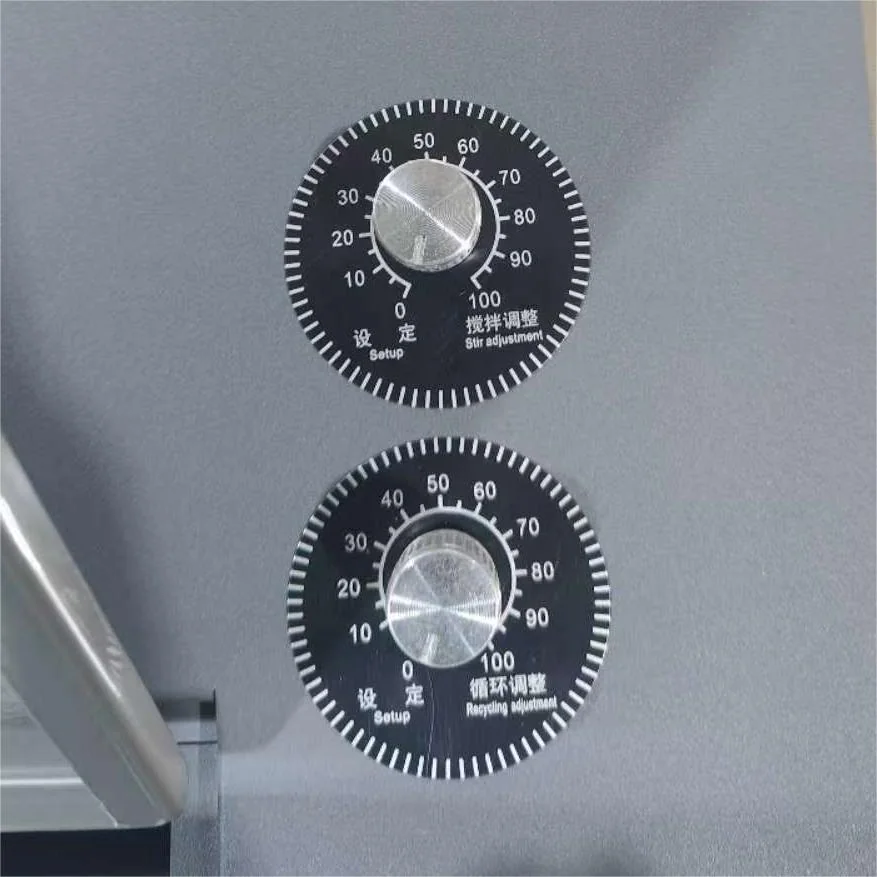

Integrated white ink circulation, agitation and
Integrated white ink circulation, agitation and filtration systems ensure steady DTF ink flow. They effectively avoid print head clogging and keep the machine operating reliably at all times.
How to Choose Your DTF Printer
Compare our A3 DTF Printer with other models in the FuJia lineup.
| Feature | A3 1-Head | A1 4-Head | A1 2-Head | A2 2-Head |
|---|---|---|---|---|
| Print Head | 1x Epson XP600 | 4/5x I3200 | 2x I3200 | 2x I3200 |
| Print Width | 300mm | 650mm | 650mm | 450mm |
| Max Speed | 4 sqm/hr | 27 sqm/hr | 15 sqm/hr | 15 sqm/hr |
| Ink Capacity | 500ml | 1,500ml | 1,000ml | 500ml |
| White Ink Circulation | Manual | Auto | Auto | Manual |
| Best For | Entry-level | High-volume | Mid-volume | Small studios |
DTF Printing Process
Preliminary Preparation & Document Processing
DTF Printer Parameter Settings
Add DTF Ink, DTF Film, and DTF Hot Melt Powder
Powder Dispensing & Curing
Heat Transfer Printing & Pressing
Film Removal & Quality Inspection
Applications
Applications include: T-shirts, sweatshirts, canvas bags, sportswear, swimwear, jeans, leather goods, tote bags, sweaters, scarves, etc.
What's in the Box
Compatible Consumables
Use FuJia-certified consumables. Browse all DTF consumables.
| Consumable | Specification | Replacement Cycle |
|---|---|---|
| DTF Inks | Water-based, 1,000ml bottle | As consumed |
| DTF Film | A3 width, 100m roll | As consumed |
| DTF Hot Melt Adhesive Powder | Fine grade, 1kg bag | As consumed |
OEM & ODM Customization
Custom Branding
Logo printing on machine body, control panel, packaging, and user manuals.
Hardware Customization
Adjustable print width, printhead configuration, color options, voltage specs.
Software Customization
Pre-installed RIP software, custom UI language packs, operation manuals.
Packaging Design
Custom-branded wooden cases, foam inserts, and accessory packaging.
After-Sales Service
Global Shipping & Fast Delivery
- Export to 60+ countries worldwide
- Wooden case packaging
- Sea, air, rail & express
- EXW / FOB / CIF / CFR
- Fast lead time
- Full logistics tracking
Technical Support
- Dedicated representative
- 7×24 online support
- Spare parts inventory
- Firmware upgrades
- Free on-site training
- OEM/ODM project support
Warranty Terms
Main machine & mainboard covered.
Consumables excluded: printheads, dampers, cables, ink caps.
About FuJia
DTF, UV, DTG, ECO Solvent, Sublimation.
Sea, air, rail and express shipping.
Standard models stocked year-round.
Free on-site training at Guangzhou factory.

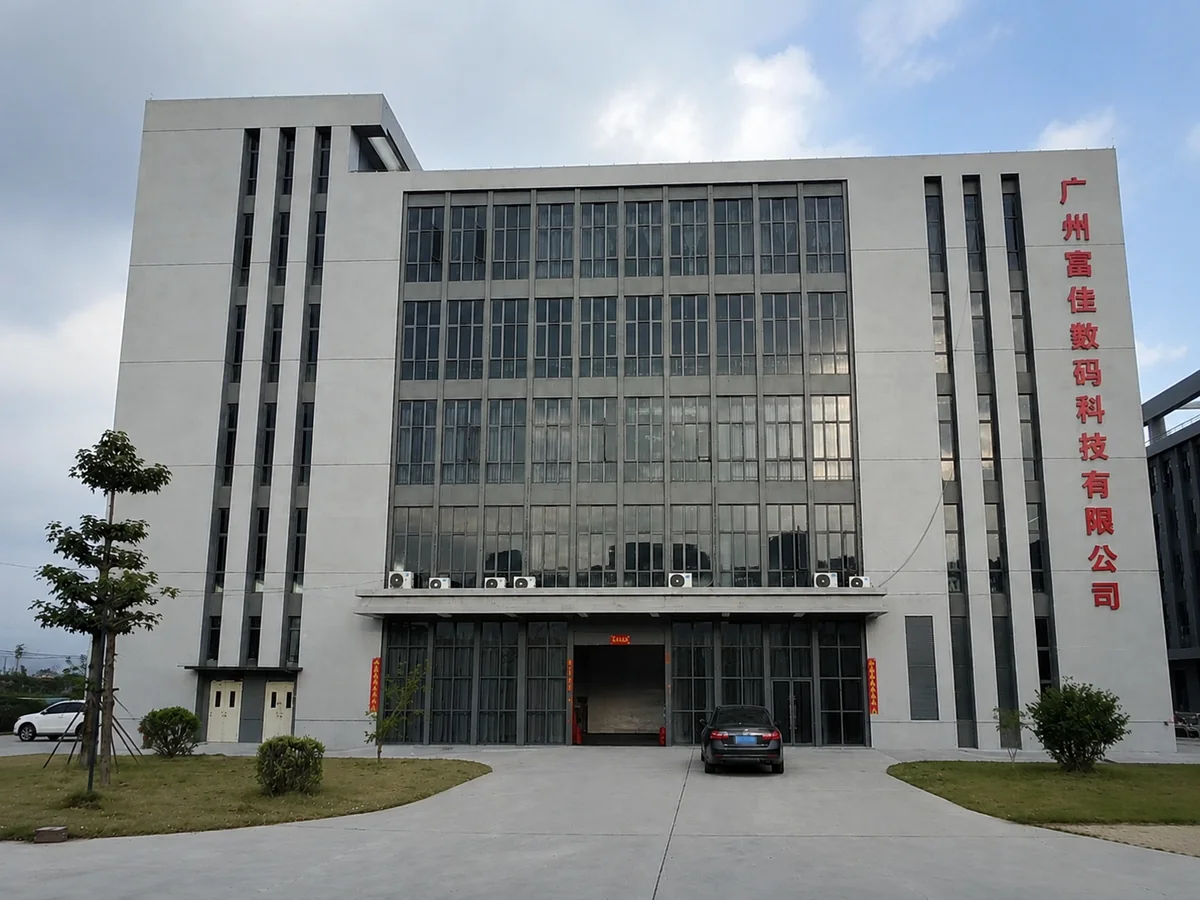

Factory Entrance
Headquarters

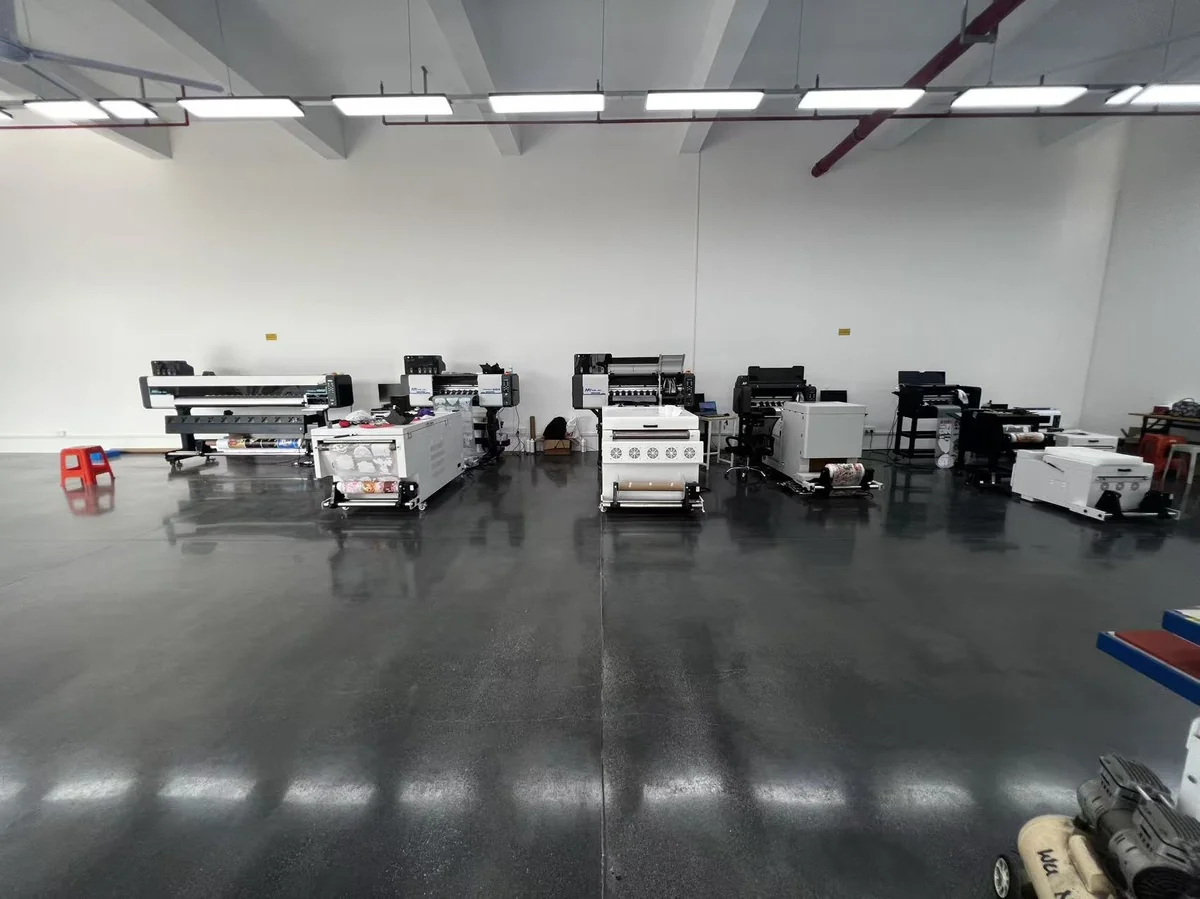

Showroom
Our TeamQuality Assurance & Factory Tour
Every FuJia printer undergoes rigorous testing before shipment.

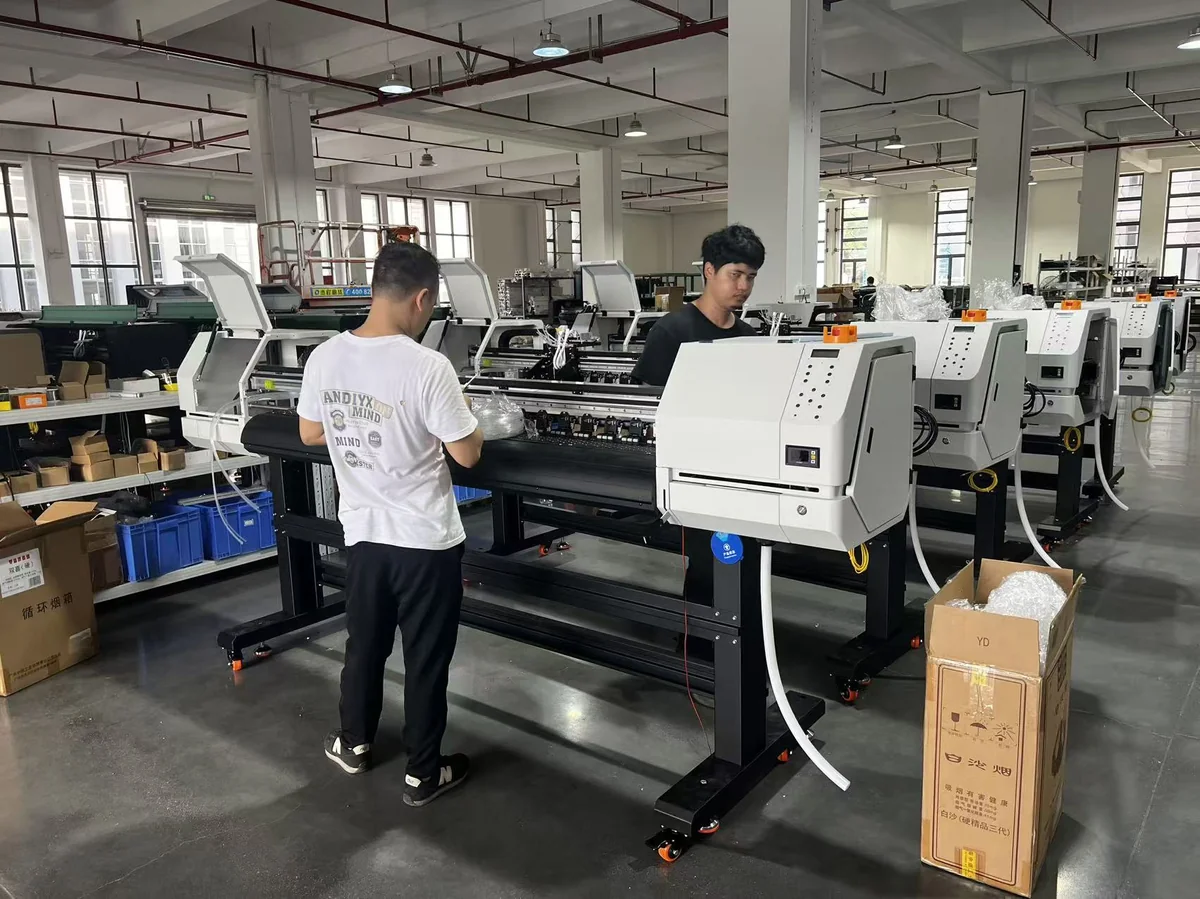

Assembly

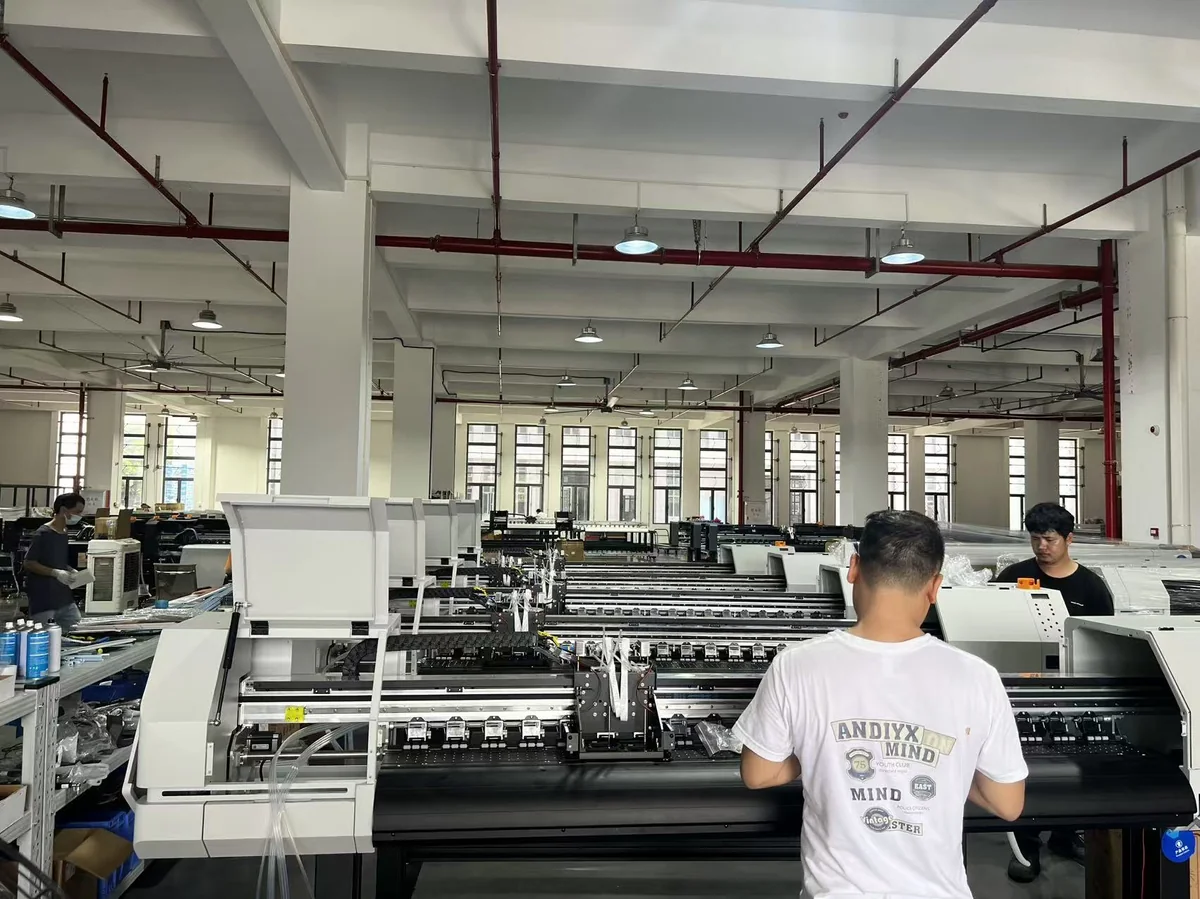

QC
Testing

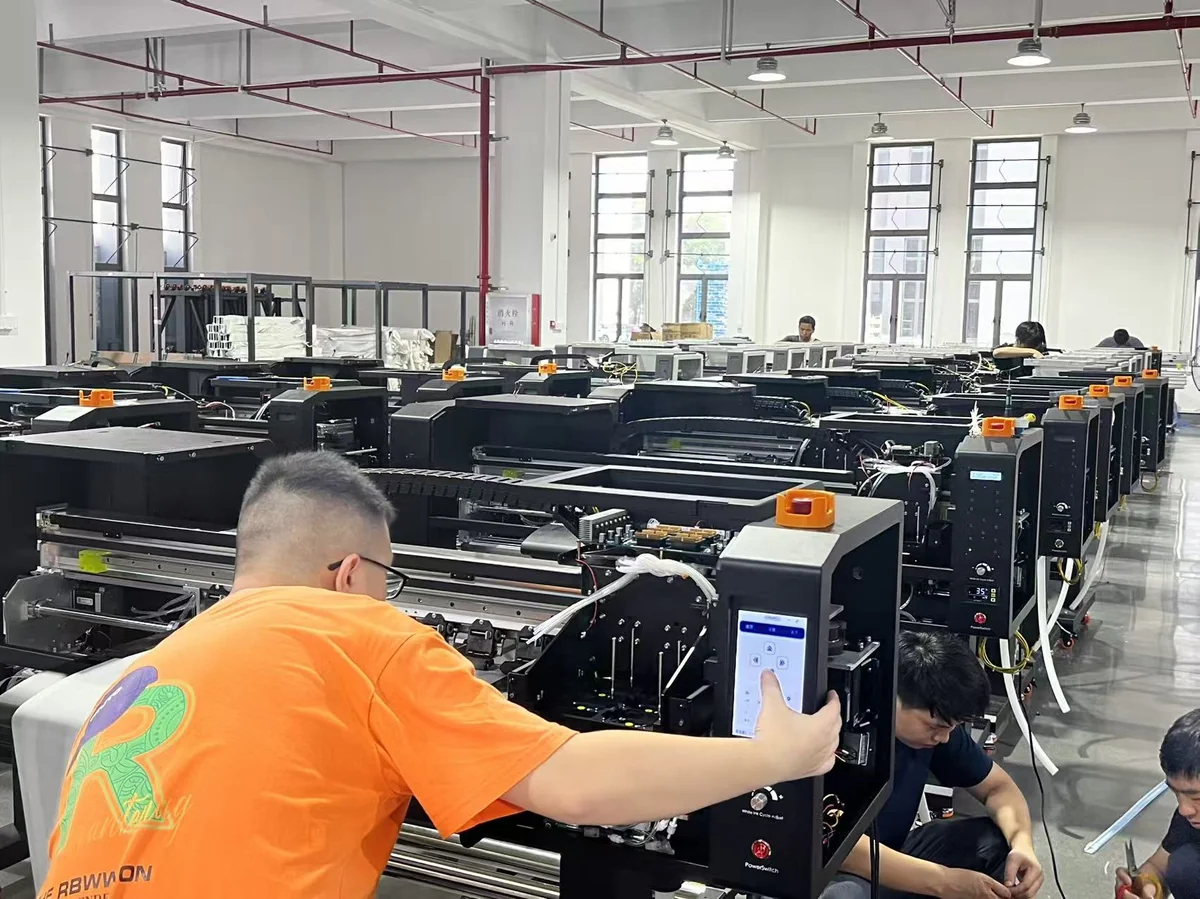

Pre-Shipment
Warehouse
PackagingCertifications & Compliance
FuJia products meet international quality and safety standards.
Comply with EU standards.
Certified quality management.
Verified supplier.
Independent verification.
Learn More
Frequently Asked Questions
What are the main advantages of this desktop DTF printer?
Entry-level DTF printer with minimum investment. Ideal for small business custom T-shirt printing, DIY creators, and startups.
What printhead does it use?
Single Epson XP600 printhead for stable, reliable A3 format printing.
Who is this suitable for?
DIY creators, DTF beginners, designers, artists, and hobbyists. Small custom printing shops and home-based T-shirt businesses.
What is the delivery time?
3–10 working days after deposit. Standard models stocked year-round.
What payment methods?
T/T, D/P, Western Union, credit card, Alibaba Trade Assurance.
How is technical support handled?
Remote assistance via video/messaging. Step-by-step troubleshooting provided.
