UV Printer for Promotional Products | Cost & Profit Guide

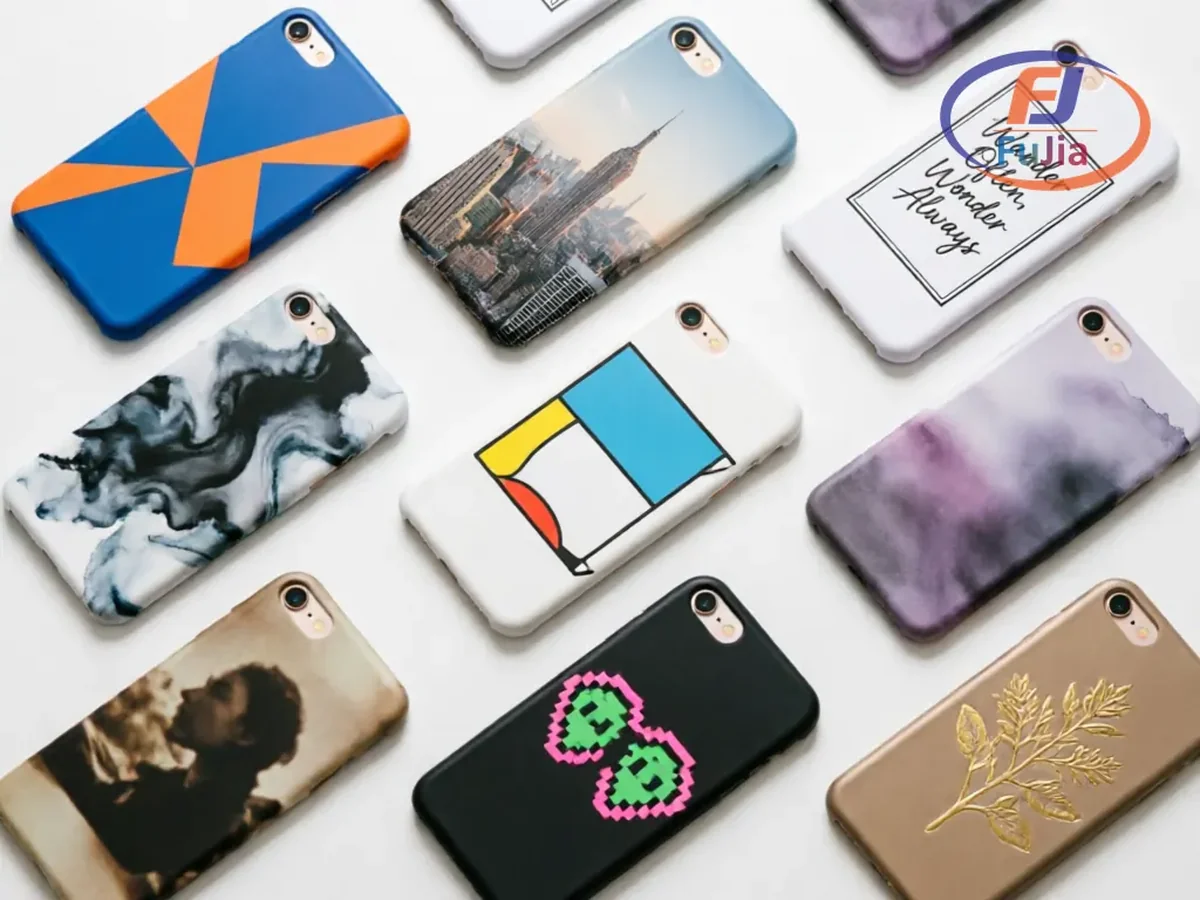

Plastic & Phone Cases

The Challenge:

Low-surface-energy plastics like TPU and polycarbonate resist ink adhesion. Budget pads and heat transfers peel within weeks, scratch off at edges, and fade under UV exposure. Without a proper white ink underbase, colors on dark or transparent cases look muddy and washed out — turning a premium product into a cheap-looking giveaway.

The Solution: UV Flatbed Direct Print

UV flatbed printers jet LED-cured ink directly onto the case surface with instant curing — no drying time, no migration. A white ink underbase punches vivid CMYK through the darkest transparent cases, while an optional varnish layer adds a glossy or matte finish that resists scratches and fingerprints. For flexible TPU cases that cannot go through a flatbed, UV DTF crystal labels transfer a durable, full-color graphic with a 3D domed finish.

Metal & Drinkware

The Challenge:

Stainless steel tumblers, aluminum bottles, and metal pens have smooth, non-porous surfaces where conventional inks bead up and slide off. Water exposure, temperature swings from hot coffee to ice water, and daily handling destroy budget prints within days. Sublimation only works on coated polyester metals — leaving bare stainless and aluminum untouched.

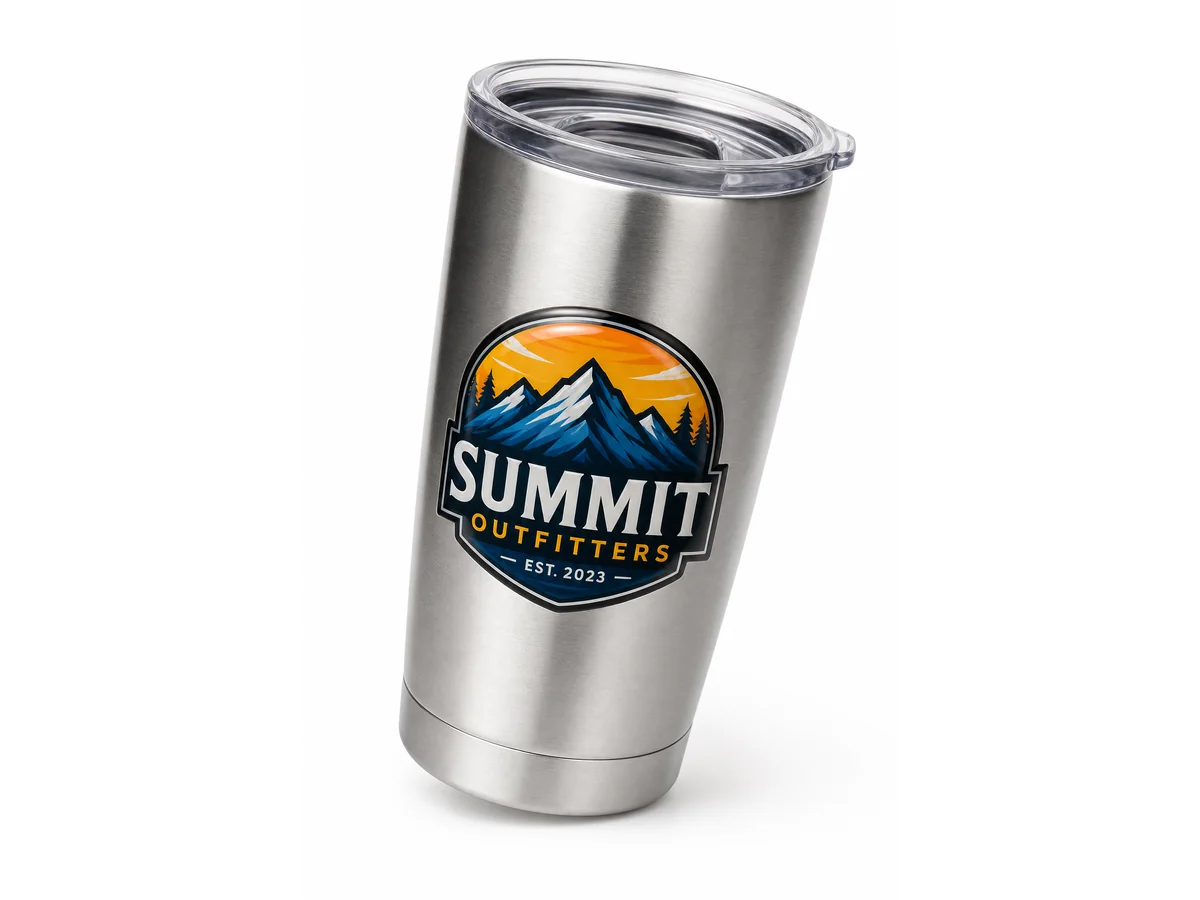

The Solution: UV DTF Crystal Label Transfer

UV DTF prints your design onto AB film, then transfers a 3D crystal label that bonds to any metal surface — coated or bare. The domed, glossy finish is waterproof, dishwasher-safe, and thermally stable from -20 to 120 degrees C. For cylindrical items like tumblers and bottles, a UV flatbed with rotary attachment prints 360 degrees in a single pass. No pre-coating, no special substrate — print and ship.

Wood, Acrylic & Irregular Shapes

The Challenge:

Wooden plaques absorb ink unevenly — darkening grain patterns and dulling colors. Acrylic blocks have curved edges where printheads collide, and irregular items like pen barrels, keychains, and award bevels create height variations that cause head strikes and smudging. Traditional pad printing handles curves but is limited to single-color, low-resolution logos.

The Solution: UV Flatbed + UV DTF Combo

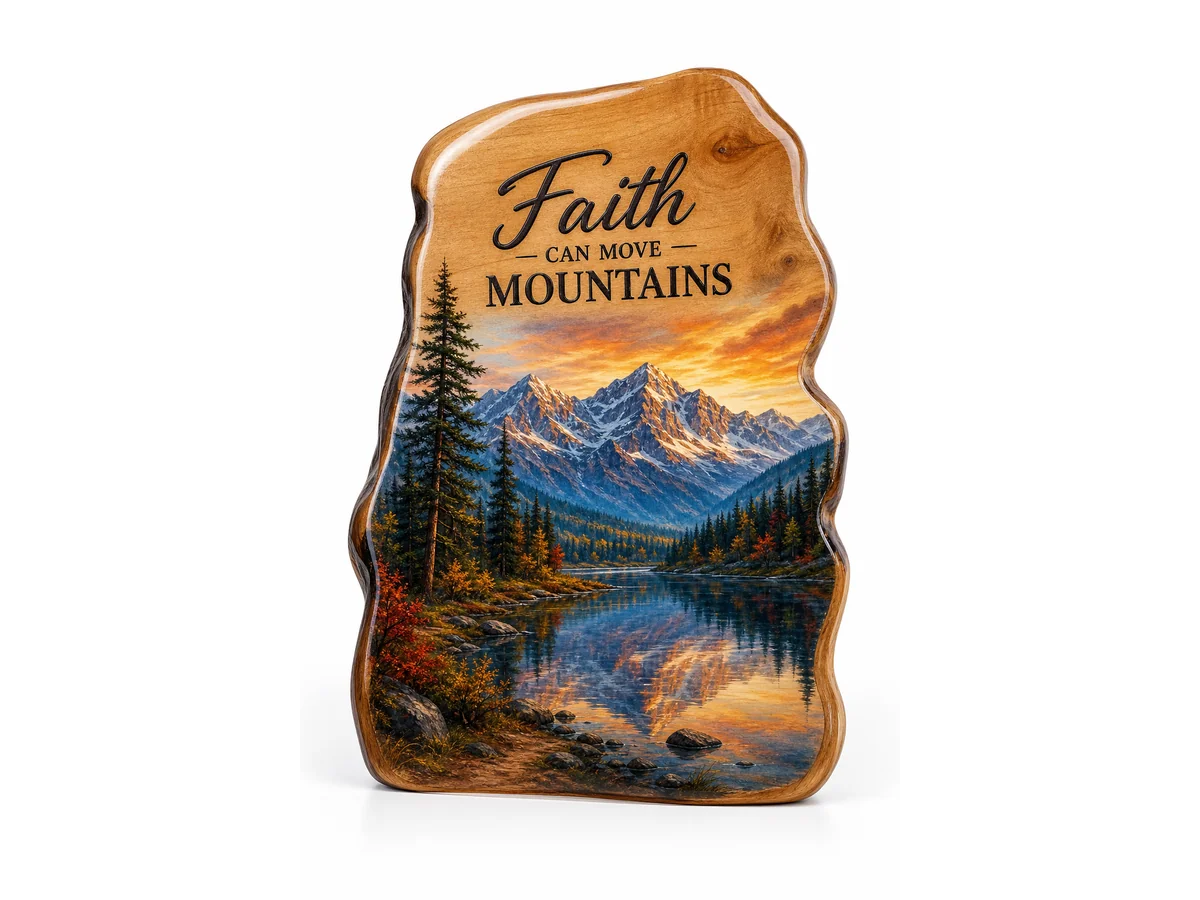

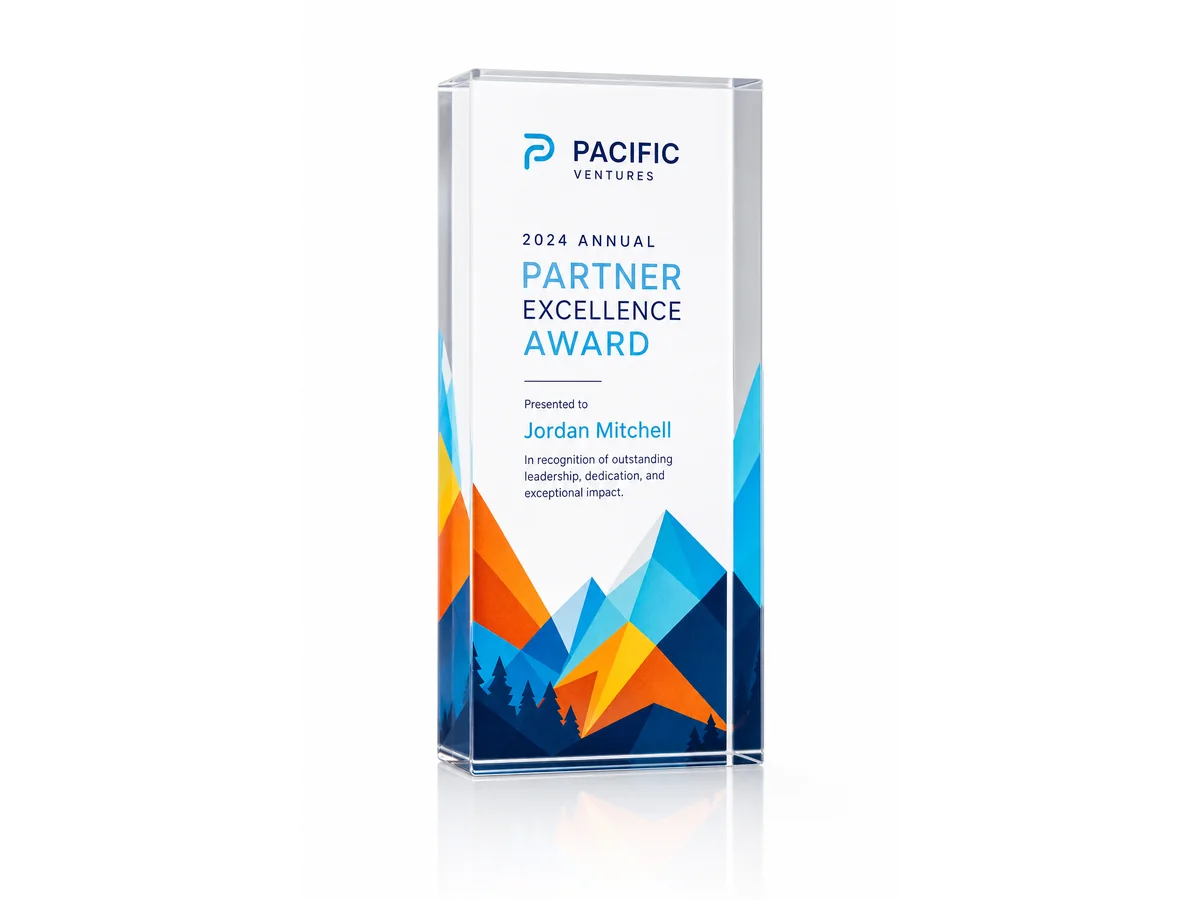

UV flatbed handles flat wood, acrylic, and glass with adjustable print height up to 100mm+ — the printhead clears raised edges while white ink underbase ensures vivid color on any substrate. For curved pens, beveled awards, and irregular keychains, UV DTF crystal labels wrap onto any shape without a flatbed — print the label flat, then transfer by hand. Together, one workshop covers every promotional product category.

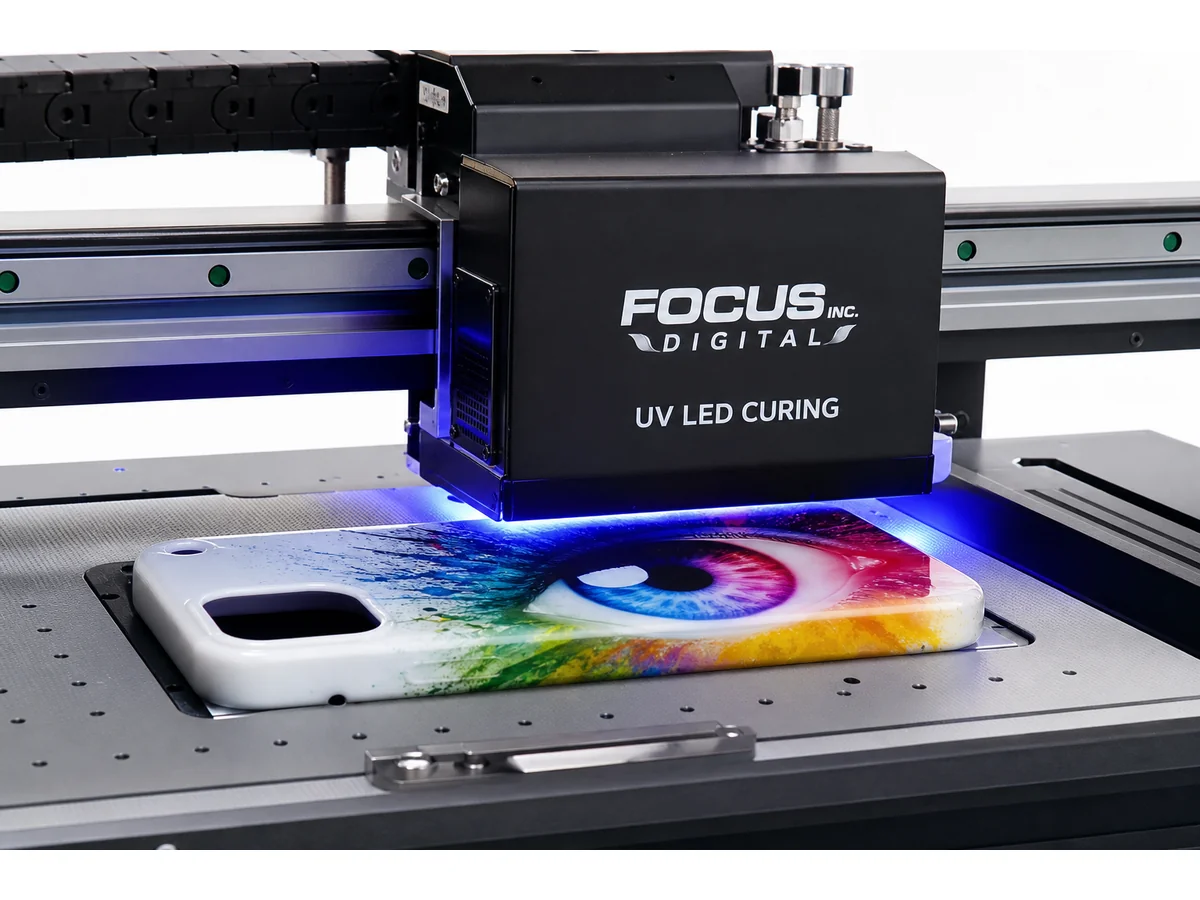

The UV Flatbed Effect (Direct & Tactile)

Texture: Slightly raised, tactile finish. Matte or glossy varnish layer adds a premium feel you can feel with your fingertips.

Visuals: Vivid CMYK with opaque white underbase. Sharp vector edges, photographic gradients, and embossed relief effects with multi-layer varnish.

Best For: Phone cases, flat panels, acrylic blocks, wooden plaques, glass tiles, and any rigid flat surface up to 100mm thick.

The UV DTF Effect (3D Embossed & Transferable)

Texture: Raised, domed, 3D crystal texture. Hard, durable, and highly scratch-resistant. Feels like expensive molded silicone.

Visuals: Glass-like glossy finish or matte option. Capable of premium metallic foil, gold, and silver effects. Looks molded, not printed.

Best For: Curved surfaces, irregular shapes, bulk labeling on bottles, pens, keychains, and any item that cannot go through a flatbed printer.

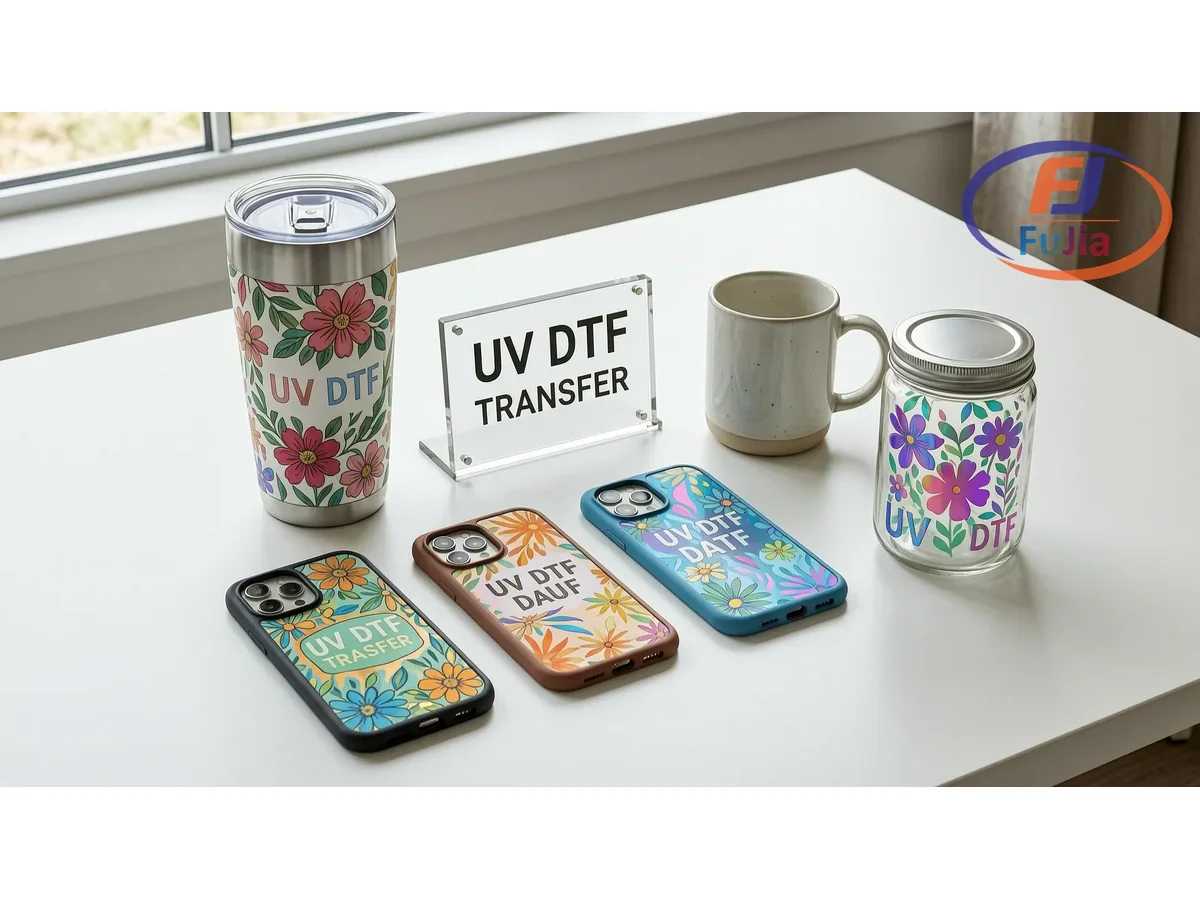

The UV DTF Wrap Effect (360 Degree Coverage)

Texture: Seamless wrap with a smooth, durable film. No visible seams or edges on cylindrical items.

Visuals: Full-color 360 degree coverage on tumblers, bottles, and pens. Water-resistant, dishwasher-safe, and thermally stable.

Best For: Drinkware, cylindrical promotional items, and bulk orders where every piece needs identical branding.

Level 1: The Startup / Kiosk Shop

Ideal Volume: 10–50 items/day (mall kiosk, weekend market, or side business)

Recommended Solution: A4/A3 UV Flatbed Desktop Printer.

Compact footprint — fits on a desk beside your point-of-sale system. LED UV curing means instant dry, no ventilation ducts required for low-volume runs. Print phone cases, keychains, and small plaques one at a time with zero setup per design. Plug into standard AC power, follow the 3-day remote onboarding, and start selling custom prints at your kiosk within a week.

Level 2: The E-commerce Gift Shop

Ideal Volume: 200–500+ items/day (full-time online store, corporate gifting)

Recommended Solution: 60x90cm UV Flatbed + UV DTF Crystal Label Printer.

The dual-machine setup covers every product category: UV flatbed prints directly on phone cases, flat panels, and rigid items in batch, while the UV DTF printer produces crystal labels for tumblers, pens, and curved items by the thousand. Batch print flat items in the morning, transfer labels in the afternoon — one operator, one workshop, full catalog coverage. Bulk ink tanks cut per-item consumable cost by up to 60%.

Level 3: The Mass Production Factory

Ideal For: Promotional product distributors and contract manufacturers.

Combo Solution: Industrial UV Flatbed (Dual-Printhead) + Automated UV DTF Label Line.

Dual-printhead UV flatbeds cut print time per phone case to under 15 seconds, while the automated UV DTF line produces 5,000+ crystal labels per hour with a single operator. The combo handles corporate orders of 10,000+ branded items — phone cases, tumblers, USB drives, and notebooks — from one facility with consistent color across every product. Repeatable output means your 10,000th item looks identical to your first.

UV Flatbed Printer — Direct Print on 15+ Materials

Prints directly on any flat or semi-flat rigid surface. LED UV cures instantly — no drying time, no material restrictions.

• Plastics: PC, ABS, TPU, Acrylic, PVC
• Metals: Aluminum, Stainless Steel, Brass, Copper
• Wood & Bamboo: Plaques, Cutting Boards, Coasters
• Glass: Mirrors, Bottles, Tiles, Awards
• Leather: Wallets, Passport Covers, Journals
• Stone & Ceramic: Tiles, Coasters, Mugs (flat)
• Electronics: Phone Cases, Tablet Backs, Laptop Covers

UV DTF Crystal Label — Transfer to Any Shape

Print on AB film, then transfer the 3D crystal label onto any surface — curved, irregular, or heat-sensitive. No flatbed needed.

• Drinkware: Tumblers, Bottles, Mugs, Flasks

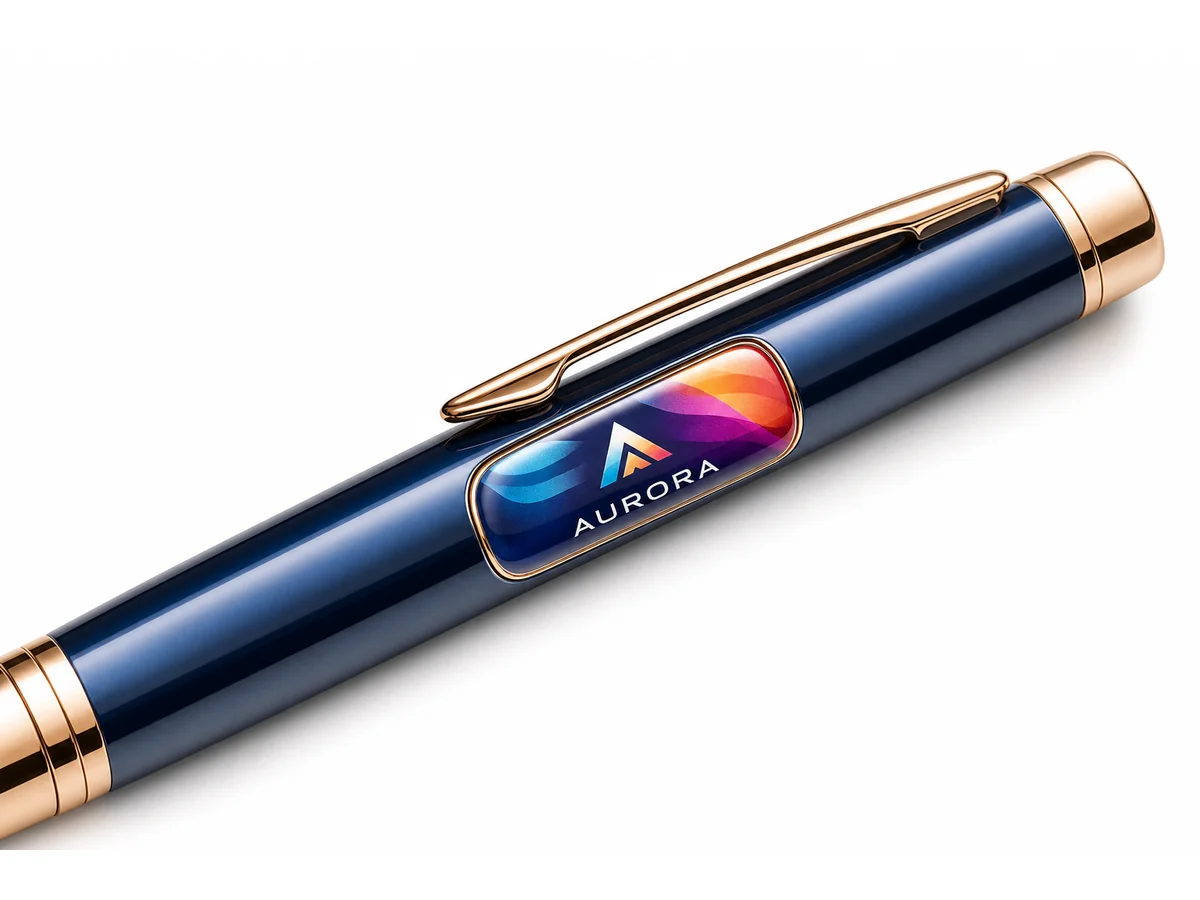

• Promotional: Pens, USB Drives, Keychains, Lighters
• Corporate: Awards, Nameplates, Badges, Medals
• Packaging: Gift Boxes, Wine Bottles, Cosmetics
• Apparel Hardware: Zipper Pulls, Snap Buttons, Tags
• Industrial: Tool Handles, Equipment Labels, Rating Plates
• Automotive: Car Badges, Helmet Decals, Key Fobs

The UV Flatbed Workflow

1. Place item on flatbed, set print height and origin
2. Print CMYK + White ink directly onto the surface
3. UV LED cures each layer instantly — no drying wait
4. Apply varnish layer for gloss or matte finish (optional)
5. Ready to ship — fully cured, scratch-resistant in seconds

The UV DTF Crystal Label Workflow

1. Print design onto A-film with CMYK + White + Varnish
2. Laminate B-film (adhesive layer) onto printed A-film
3. Peel B-film — design transfers with adhesive backing
4. Apply label onto any surface — press and smooth
5. Peel clear carrier film — 3D crystal label permanently bonded

FEATURE 01

White Ink Auto-Circulation

Continuous white ink circulation from tank to dampers prevents titanium dioxide pigment settling — the #1 cause of clogged UV printheads.

FEATURE 02

Smart Auto-Cleaning

Set it and forget it. The built-in software handles automated flash cleaning during idle periods, keeping nozzles clear and ready for instant production.

FEATURE 03

3-Minute Daily Routine

A quick wipe of the capping station and a visual nozzle check — under 3 minutes. No alcohol baths, no disassembly, no mess.

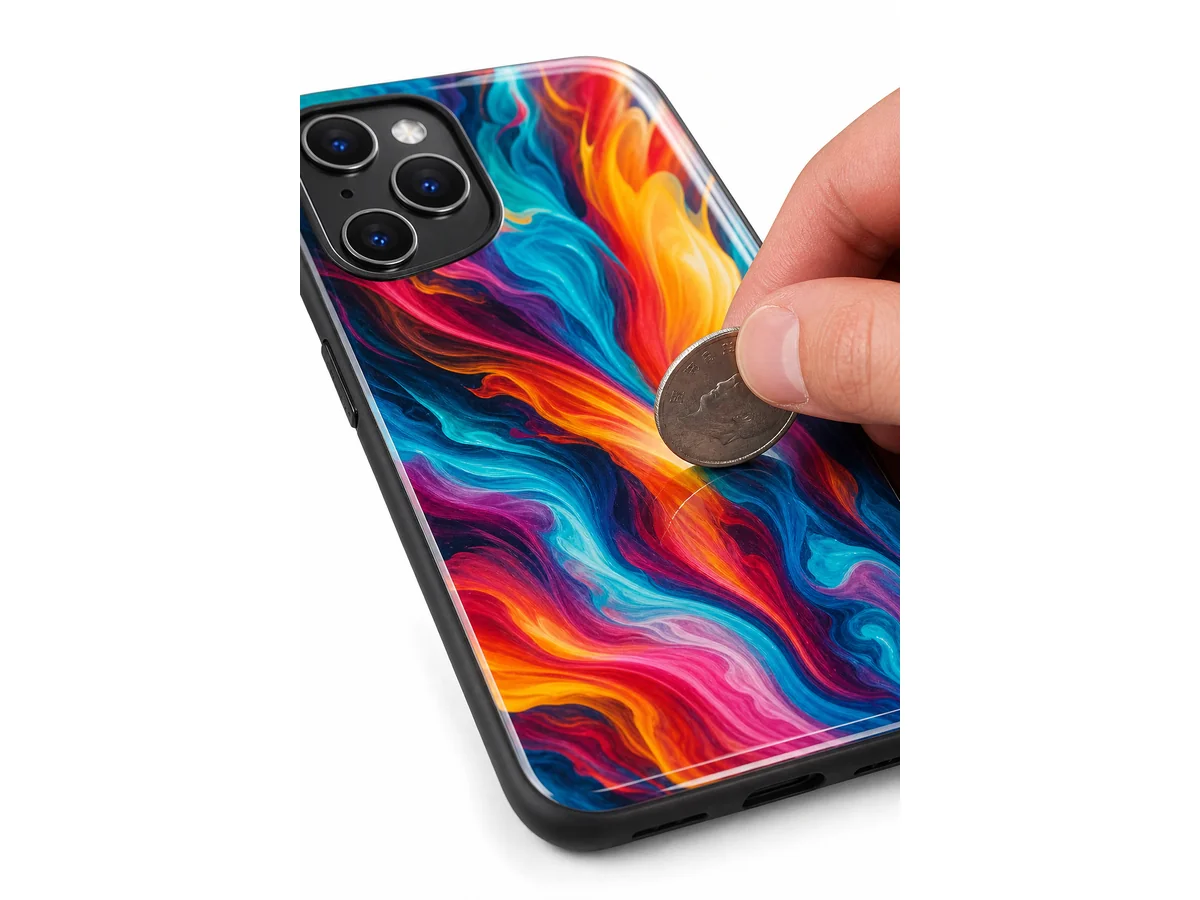

3H+ Hardness

Scratch-Resistant. Pencil hardness rated 3H+ with varnish layer. Survives daily key-rubbing in pockets and bags without surface marring.

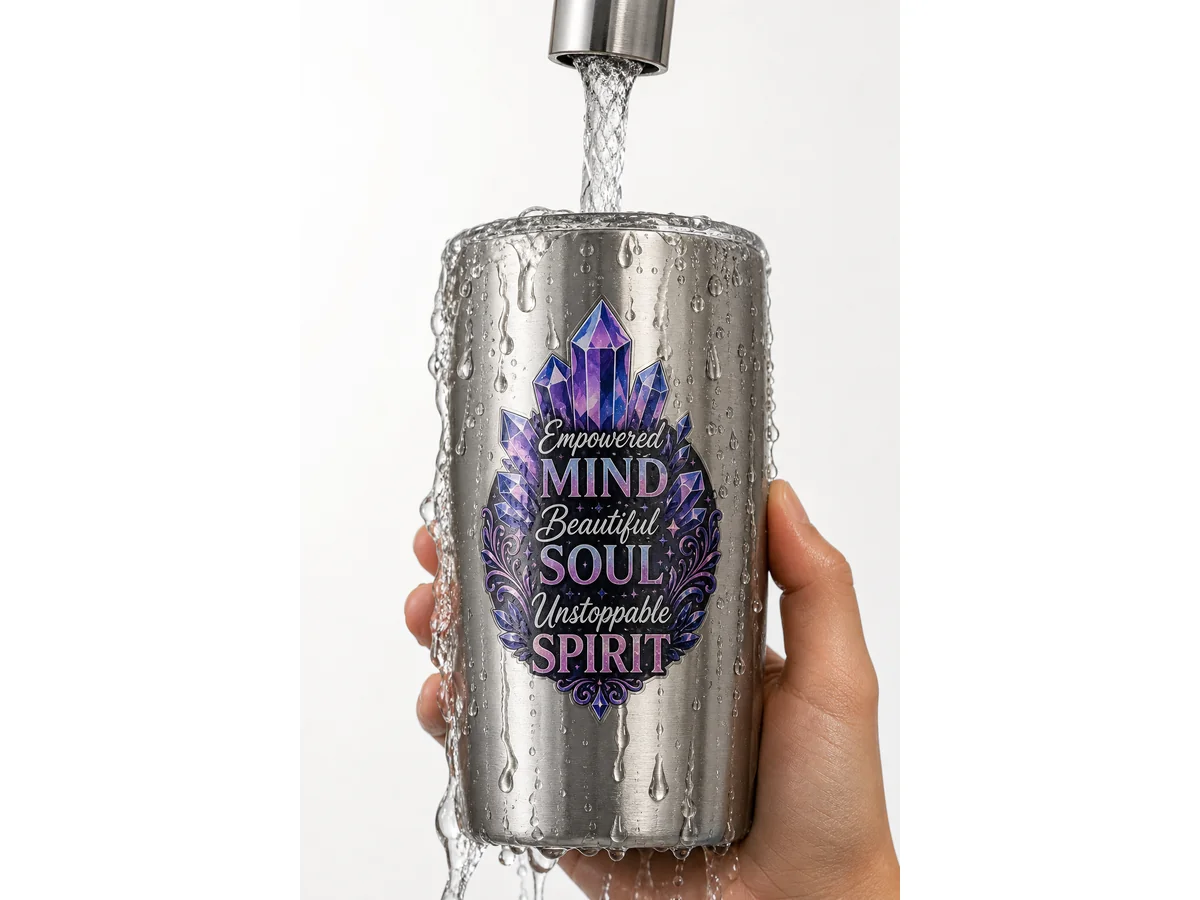

Waterproof & Weatherproof

Dishwasher-Safe. UV-cured ink is insoluble in water. UV DTF labels survive 100+ dishwasher cycles. Outdoor-rated for 2+ years UV exposure without fading.

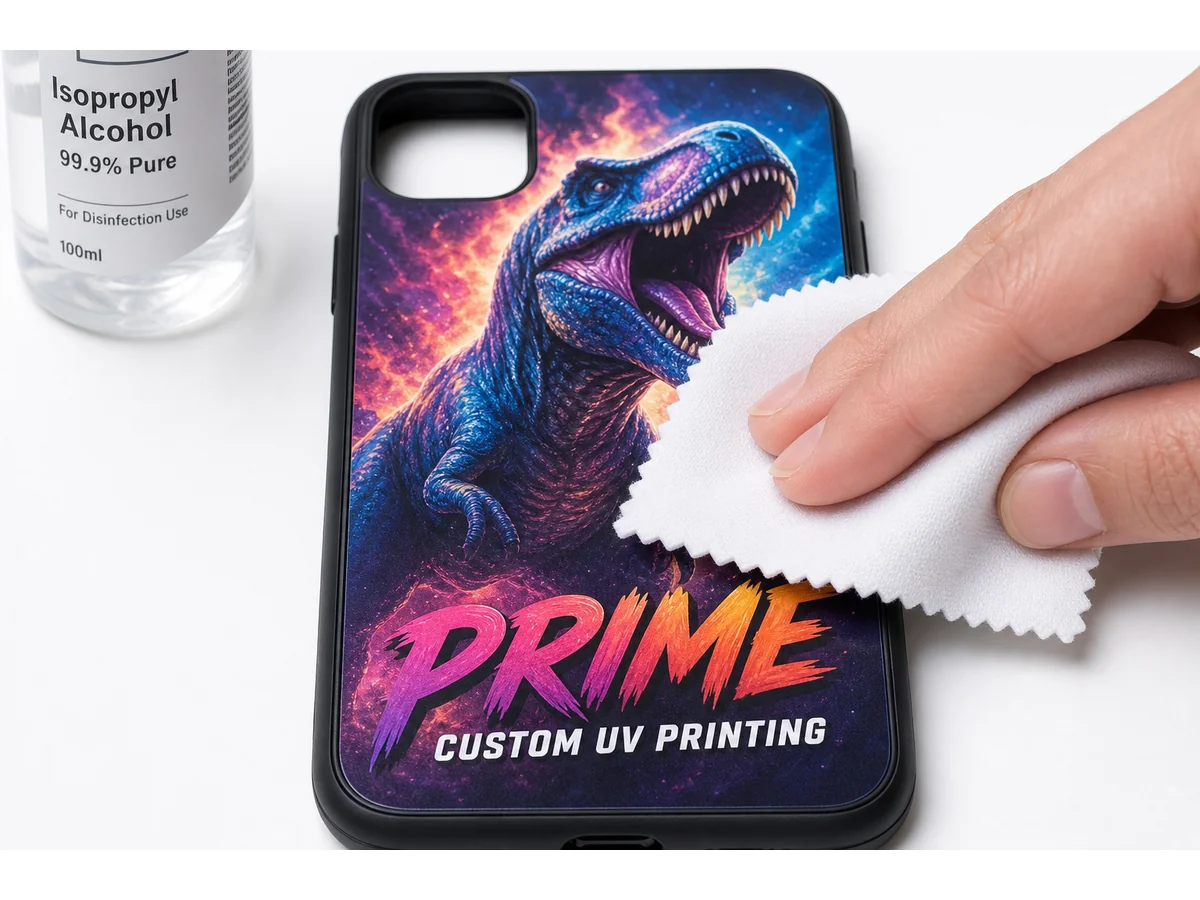

Chemical Resistant

Solvent-Proof. Resists 75% isopropyl alcohol, hand sanitizer, cleaning detergents, and common solvents. No smearing, no color shift, no edge lifting.

Case 1: The Custom Phone Case Brand

Problem: A direct-to-consumer phone case brand relied on heat-transfer sublimation, which only worked on pre-coated cases. They could not offer clear cases, rugged TPU cases, or wooden bumper cases — losing 35% of potential SKUs. Each sublimation batch also required 24 hours of drying time, creating a production bottleneck.

Our Solution: We deployed a 60x90cm UV flatbed printer with rotary attachment. The UV flatbed prints directly on PC, TPU, acrylic, and wood — no pre-coating needed. LED instant curing eliminated the 24-hour drying wait. ICC profiles were tuned separately for each case material to ensure color consistency across the entire catalog.

Result: The brand expanded from 12 to 40+ case SKUs within 60 days, including clear cases and wood bumpers that sublimation could not handle. Production time per batch dropped from 48 hours to 4 hours. Monthly output reached 8,000+ cases at a 75% gross margin, and customer satisfaction improved with the scratch-resistant UV varnish finish.

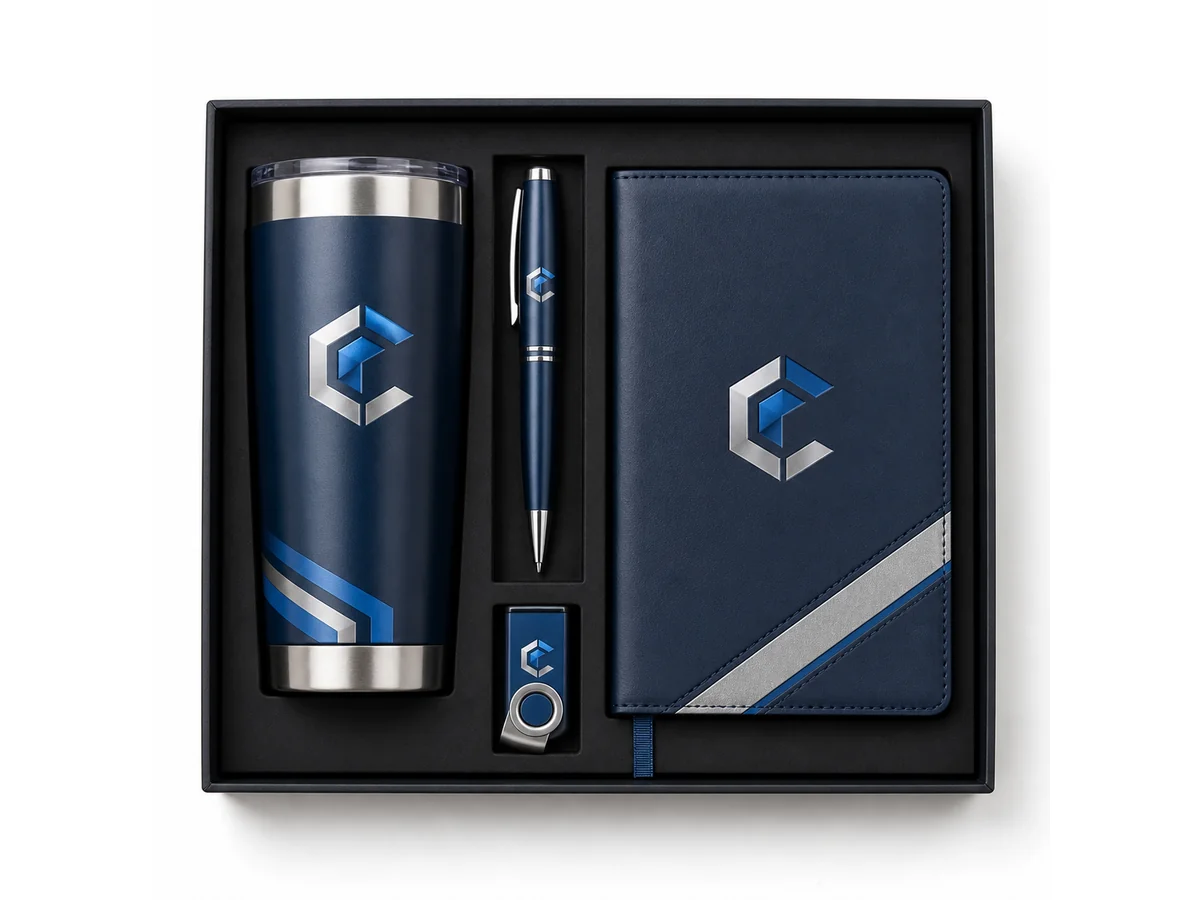

Case 2: The Corporate Gift Distributor

Problem: A corporate gift distributor sourced branded tumblers, pens, and USB drives from three different suppliers using pad printing, laser engraving, and screen printing respectively. Inconsistent color matching, split shipments, and high minimum order quantities per item type made small-batch corporate orders unprofitable.

Our Solution: We paired a UV DTF crystal label printer with a small UV flatbed. The UV DTF line handles all curved items — tumblers, pens, USB drives — with identical 3D crystal label branding. The UV flatbed covers flat items like notebooks and acrylic awards. Both machines use the same ICC color standard, ensuring brand consistency across every product in a corporate gift set.

Result: The distributor consolidated to one supplier, cut minimum order quantity from 500 to 50 per item, and reduced lead time from 21 days to 7 days per batch. Average order value nearly doubled as clients added more product types to each gift set. The 3D crystal label finish became their premium upsell — clients perceived it as molded silicone branding, not printing.

ADHESION ENGINEERING

Substrate-specific ICC profiles and primer matching for 15+ materials

FACTORY SETUP

1-on-1 factory setup guidance from our engineers

LIFETIME SUPPORT

Lifetime WhatsApp support group with real humans
