Advantages
Equipped with an automatic white ink circulation system, it prevents ink sedimentation and solidification, fundamentally avoiding nozzle clogging. Supports long-term, uninterrupted batch production, significantly improving production continuity and efficiency.
Quick Specifications
Product Specifications
| Parameter | Value |
|---|---|
| Model | DTG-2WS-4HI3200 |

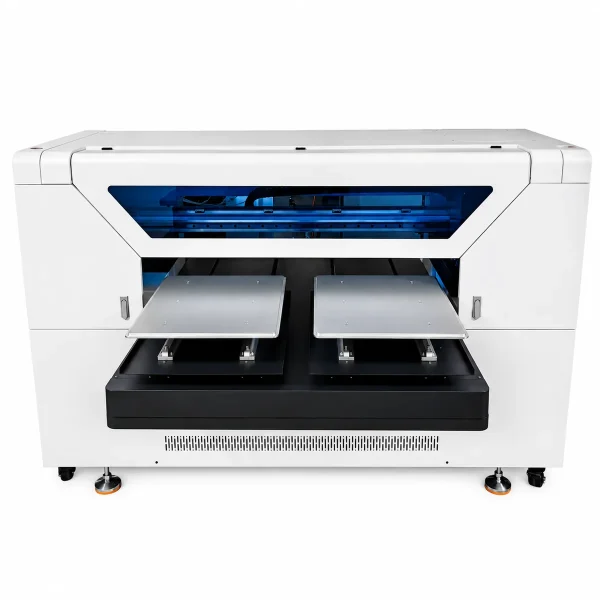

| Product Overview | This Direct-to-Garment (DTG) printer features a compact body. It simplifies the entire printing process, saves working hours and labor, and improves production stability. Ideal for custom T-shirt printing, on-demand printing, and small & medium-sized garment printing production. |
| Product Highlights. Dual-Station Design | Equipped with two working stations for alternating operation, which greatly boosts production capacity and reduces waiting time between processes. |
| Product Highlights. Epson i3200-A1 Printheads | Fitted with 4 pieces of Epson i3200-A1 printheads. Delivers precise alignment of white ink and color ink, vivid colors, and stable printing quality. |
| Product Highlights. Honson Intelligent Control System | Adopts Honson main control board to ensure smooth machine operation, reliable data transmission, and long-term system stability. |
| Product Highlights. Intelligent Protection & Easy Operation | Equipped with printhead anti-collision protection, automatic carriage lifting, intelligent humidification, infrared positioning, voice alert for ink shortage, negative pressure white ink circulation, and waste ink alarm. Reduces manual operation and makes daily use more convenient. |
| Main Technical Specifications. Model | DTG-2WS-4HI3200 |
| Main Technical Specifications. Print Format | 45 × 55 cm |
| Main Technical Specifications. Maximum Thickness of Medium | 20 mm |
| Main Technical Specifications. Print Head | 4 pcs Epson i3200-A1 |
| Main Technical Specifications. RIP Software | RIIN |
| Main Technical Specifications. Working Temperature / Humidity | 20℃–30℃ / 60%–70% RH |
| Main Technical Specifications. Power Supply / Current | 220V/110V; 5A/10A; 50Hz/60Hz |
| Main Technical Specifications. Net Weight | 495 kg |
| Main Technical Specifications. Gross Weight | 550 kg |
| Main Technical Specifications. Machine Dimensions (L×W×H) | 2,153 × 1,236 × 1,406 mm |
| Main Technical Specifications. Package Dimensions (L×W×H) | 2,303 × 1,376 × 1,600 mm |
| Printhead Parameters. Quantity of Printheads | 4 pcs I3200 |
| Printhead Parameters. Printhead Height | 2–3 mm |
| Printhead Parameters. Printhead Functions | Anti-blocking flash spray, automatic moisturizing |
| Printhead Parameters. Cleaning System | Fully automatic cleaning |
| Ink System. Ink Type | Special DTG textile ink |
| Ink System. Color Configuration | 4 Colors (C/M/Y/K, CMYK+White) / 4/8 Colors (CMYK+LC, LM, LK, LLK) |
| Ink System. Ink Cartridge Capacity | 1,000ml per color |
| Ink System. Supply Mode | Siphon & positive pressure ink bag |
| Working Environment. Standard Working Temperature | 18℃–25℃ |
| Working Environment. Standard Humidity | 35%–65% RH |
| Working Environment. Extended Working Temperature | 40℃–100℃ |
| Working Environment. Extended Humidity | 20%–80% RH |
| Interface & Software. Printing Interface | USB 3.0, Gigabit network port |
| Interface & Software. Supported OS | Windows XP (64-bit), Win7, Win10 |
| Interface & Software. Operation Language | Chinese, English |
| Interface & Software. Control System | Printer Manager |
| Interface & Software. RIP Software | Maintop, Photoprint, Flexi, Riin |
| Power Parameters. Rated Voltage | 110V/220V, 50Hz/60Hz |
| Power Parameters. Voltage Tolerance | AC 110V ±10%, AC 220V ±10% |
| Power Parameters. Rated Current | 16A |
| Power Parameters. Total Machine Power | 32W (Min) / 2,300W (Max) |
| Power Parameters. External Heating Power | 1,200W |
| Noise Level | <32 dB (min), ≤65 dB (max) |
| Structural Advantages 1 | Widened base cabinet with space reserved for placing a computer on the right side |
| Structural Advantages 2 | Equipped with adjustable variable frequency motor |
| Structural Advantages 3 | Extra wide and thick main beam with dual THK silent guide rails for stable equipment operation |
| Warranty. Full Machine | 12 months |
| Warranty. Main Board | 12 months |
| Warranty. Consumables Exclusion | Printheads, dampers, cables and ink caps are consumables and not covered |
| Warranty. Special Notice | Ink system, printheads and ink caps of F1/F2/F4 series not included |
| After-Sales. Service Items 1 | Free standard spare parts provided |
| After-Sales. Service Items 2 | Professional engineering team offers online technical support |
| After-Sales. Service Items 3 | Over 18 years of experience in printing equipment industry |
| After-Sales. Service Items 4 | Pre-sales team provides quotations and customized solutions for DTG, UV DTF, ECO solvent, sublimation, UV flatbed and DTF printers |
| After-Sales. Service Items 5 | Free on-site practical training at factory for customer technicians |
| After-Sales. Delivery & Payment 1 | Lead Time: 3–10 working days after deposit; regular models always in stock |
| After-Sales. Delivery & Payment 2 | Payment: T/T, D/P, Western Union, Credit Card, Alibaba Trade Assurance |
| After-Sales. Delivery & Payment 3 | Spare Parts: Full range of original spare parts; return damaged parts for replacements; spare parts package recommended |
| Brand | FuJia |
| Origin | Guangzhou, China |
Product Details
Engineered with premium components for industrial-grade reliability.

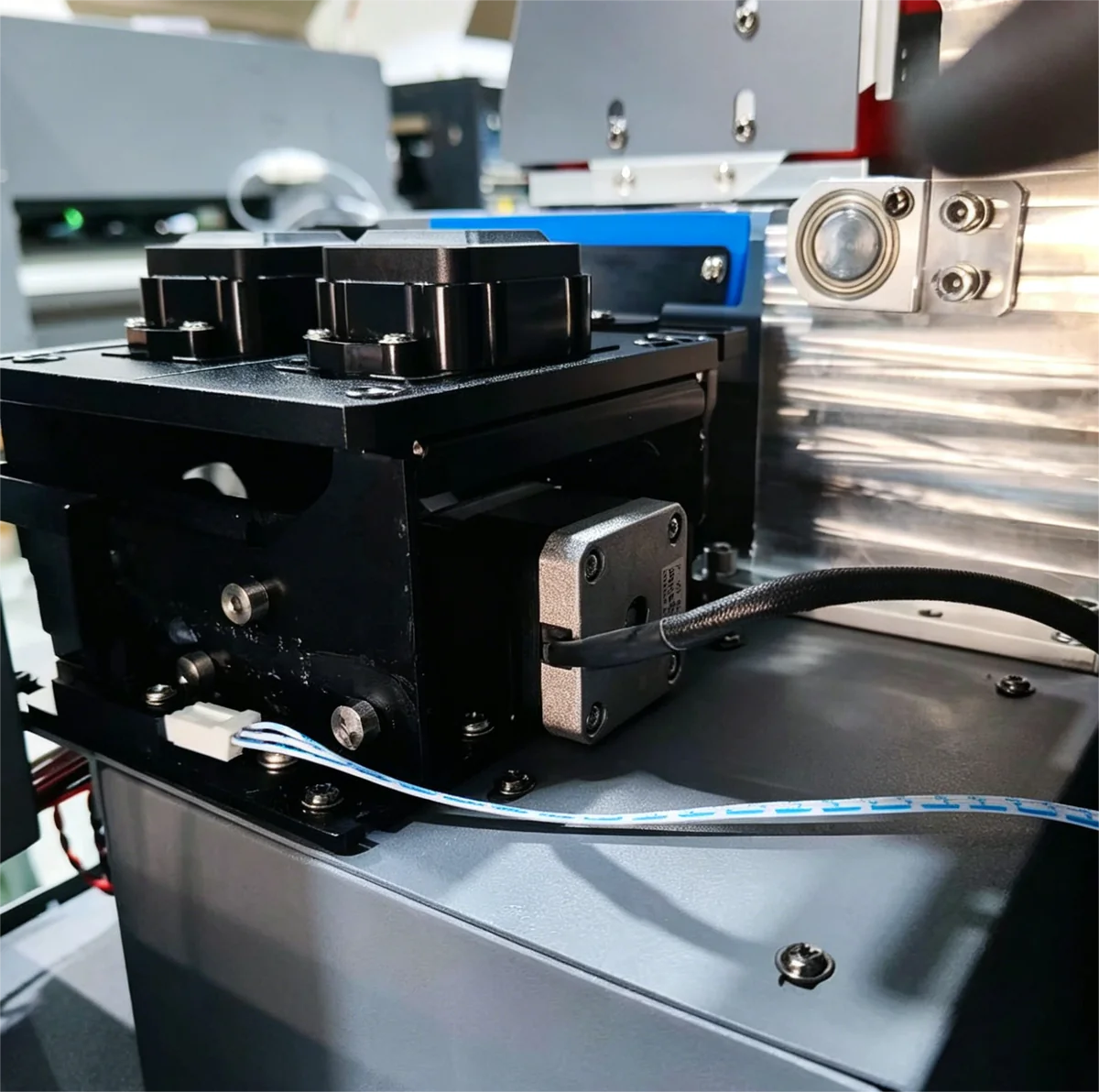

Our smart moisturizing ink cartridge delivers
Our smart moisturizing ink cartridge delivers superior sealing and prolonged moisture retention.
It adopts automatic ink pumping for print head cleaning and moisturizing.
With dual automatic & manual lift functions, it safeguards your print head against dry-out and clogging.
Equipped with dual-direction Leadshine integrated brushless
Equipped with dual-direction Leadshine integrated brushless servo motors and high-precision linear decoding drive, this unit features high accuracy, low vibration, tiny tolerance and outstanding stability. It ensures consistent power for print head and paper movement.
A premium ink pump comes with
A premium ink pump comes with every ink pad. It drains waste ink in time to avoid clogging, and is also used for print head cleaning.
Fitted with anti-collision bumpers on both
Fitted with anti-collision bumpers on both sides of the carriage bracket. It shuts down instantly when blocked by paper, abnormal air flow or debris, effectively safeguarding the print head.
Dual-motor system manages PET film and
Dual-motor system manages PET film and paper reeling. Accurate tension control and speed sync keep the media running smoothly.

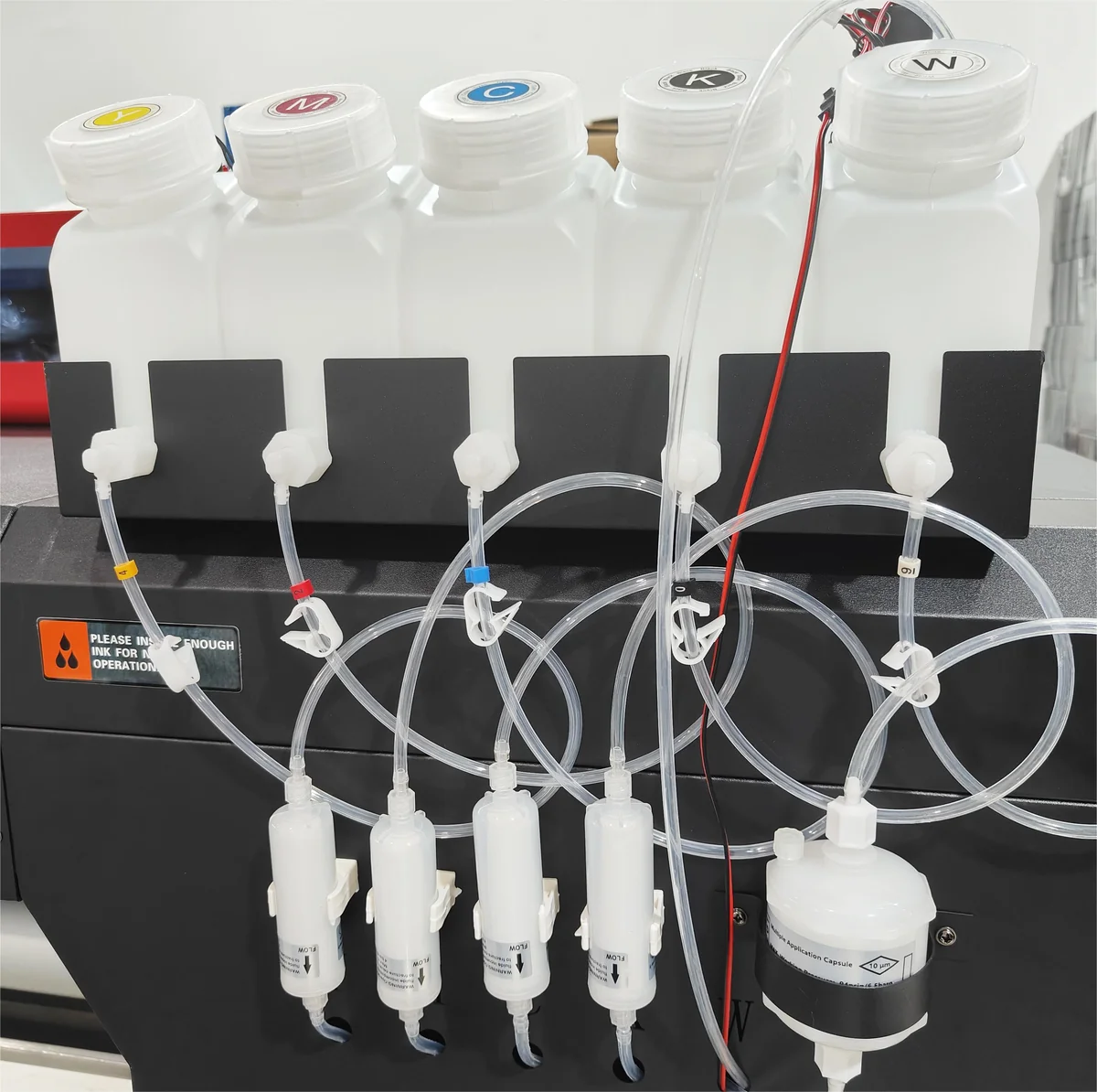

Integrated white ink circulation, agitation and
Integrated white ink circulation, agitation and filtration systems ensure steady DTF ink flow. They effectively avoid print head clogging and keep the machine operating reliably at all times.
Featuring an advanced smart control panel
Featuring an advanced smart control panel for one-touch operation of paper handling and print head maintenance. Built-in smart sensors track temperature and humidity round the clock, keeping the printer running reliably at all times.

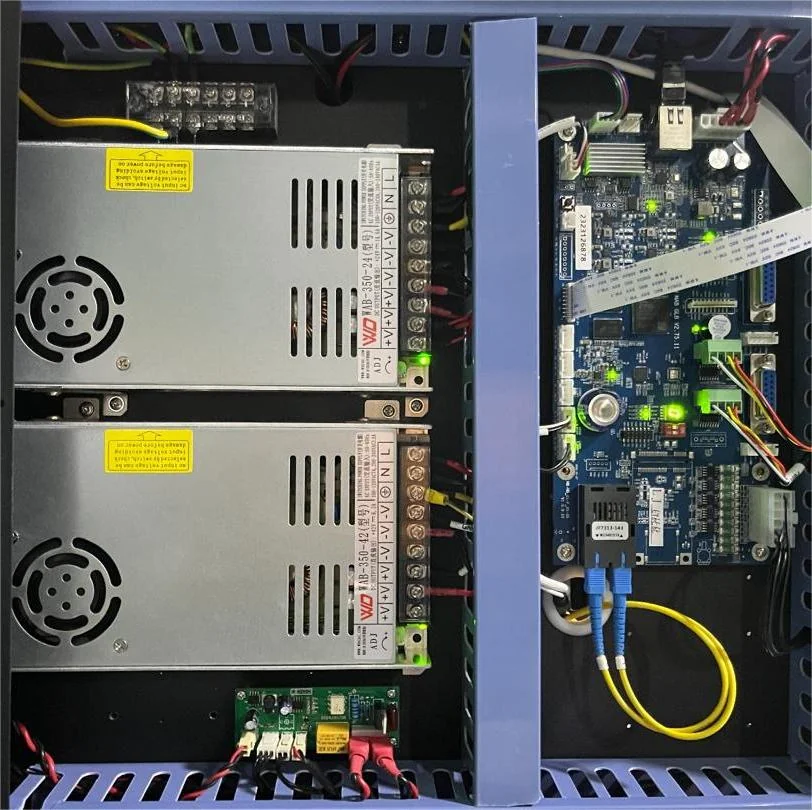

Fitted with Honson control board and
Fitted with Honson control board and Mean Well power unit for superior accuracy and stable performance.
How to Choose Your DTG Printer
Compare our dual-station DTG printer with other models in the FuJia lineup.
| Feature | DTG Dual-Station | DTG Single-Station |
|---|---|---|
| Print Stations | 2 | 1 |
| Print Head | Epson I3200 | XP600 |
| Productivity | 2x output | Standard |
| Best For | Mid-volume shops | Entry-level |
DTG Printing Process
1. Fabric Pretreatment
Spray treatment solution and dry to enhance ink adhesion.
2. Image Layout
Color layering of images, separating white and color ink files.
3. Garment Mounting
Garment is flattened and fixed in position on the printing platform.
4. Inkjet Printing
First, apply a white ink base, then print the pattern with color ink.
5. Hot Press Fixing
High-temperature drying and setting, ensuring the finished product is washable.
Applications
Applications: Digital printing on garments with a cotton content greater than 80%
What's in the Box
Compatible Consumables
Use FuJia-certified consumables. Browse all DTG consumables.
| Consumable | Specification | Replacement Cycle |
|---|---|---|
| DTG White Ink | Water-based, 1,000ml bottle | As consumed |
| DTG CMYK Inks | Water-based, 1,000ml bottle | As consumed |
| Pretreatment Liquid | 1L bottle | As consumed |
OEM & ODM Customization
Custom Branding
Logo printing on machine body, control panel, packaging, and user manuals.
Hardware Customization
Adjustable print width, printhead configuration, color options, voltage specs.
Software Customization
Pre-installed RIP software, custom UI language packs, operation manuals.
Packaging Design
Custom-branded wooden cases, foam inserts, and accessory packaging.
After-Sales Service
Global Shipping & Fast Delivery
- Export to 60+ countries worldwide
- Wooden case packaging
- Sea, air, rail & express
- EXW / FOB / CIF / CFR
- Fast lead time
- Full logistics tracking
Technical Support
- Dedicated representative
- 7×24 online support
- Spare parts inventory
- Firmware upgrades
- Free on-site training
- OEM/ODM project support
Warranty Terms
Main machine & mainboard covered.
Consumables excluded: printheads, dampers, cables, ink caps.
About FuJia
DTF, UV, DTG, ECO Solvent, Sublimation.
Sea, air, rail and express shipping.
Standard models stocked year-round.
Free on-site training at Guangzhou factory.

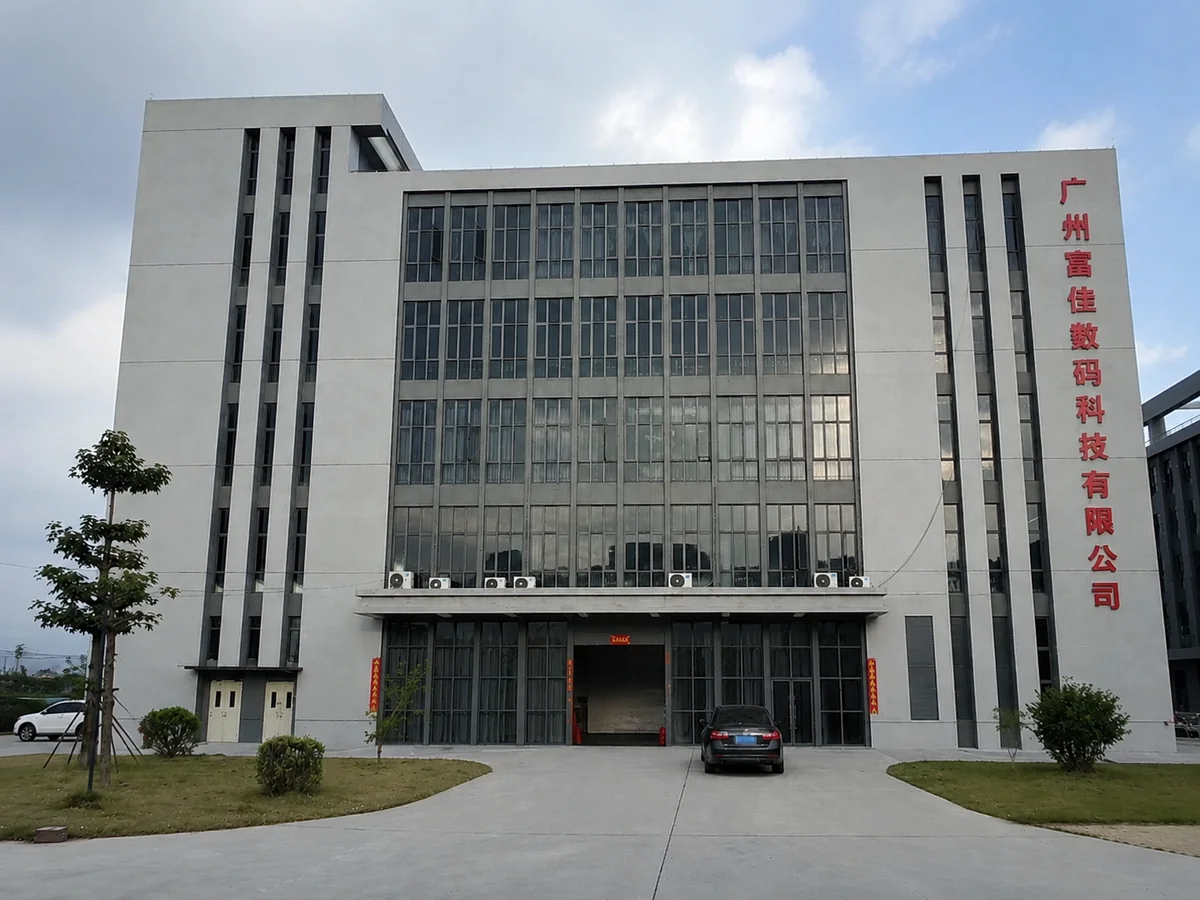

Factory Entrance
Headquarters

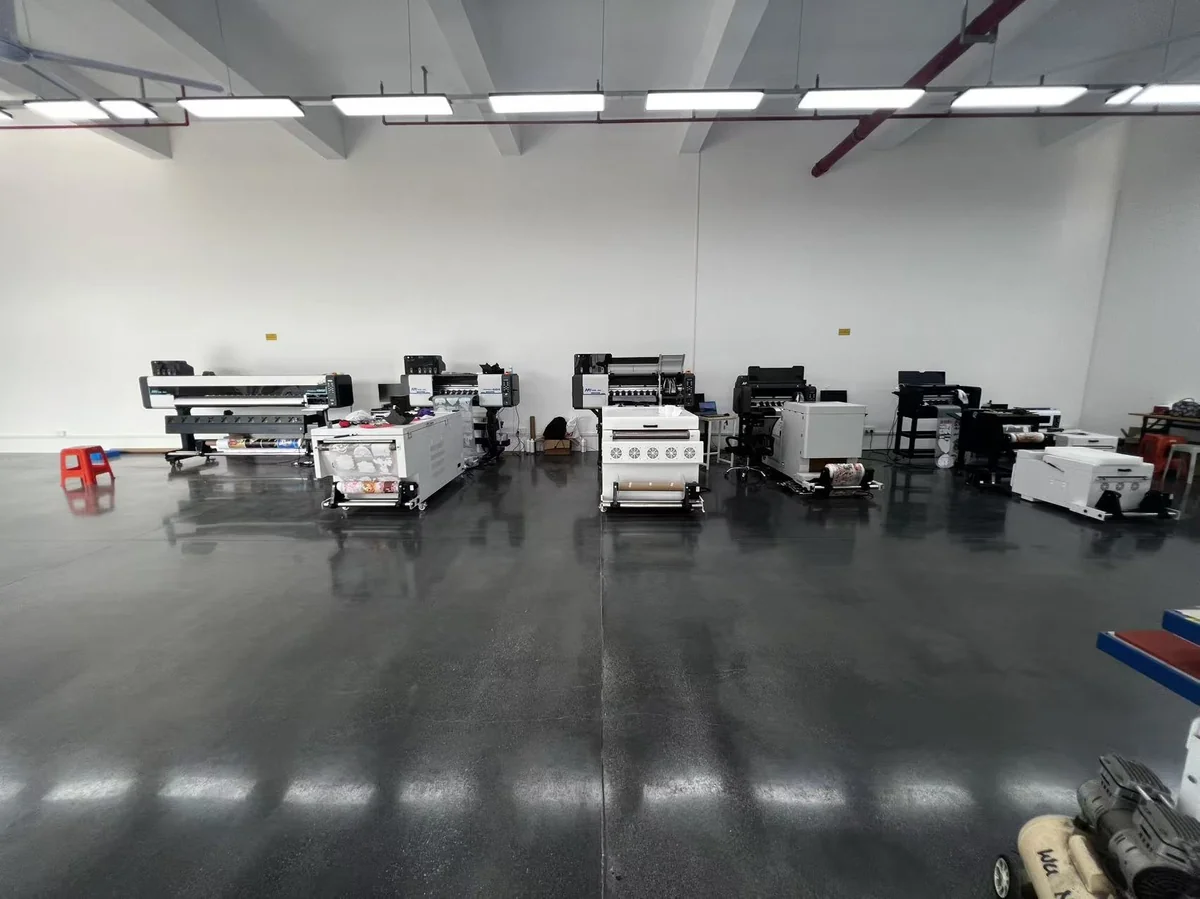

Showroom
Our TeamQuality Assurance & Factory Tour
Every FuJia printer undergoes rigorous testing before shipment.
Assembly

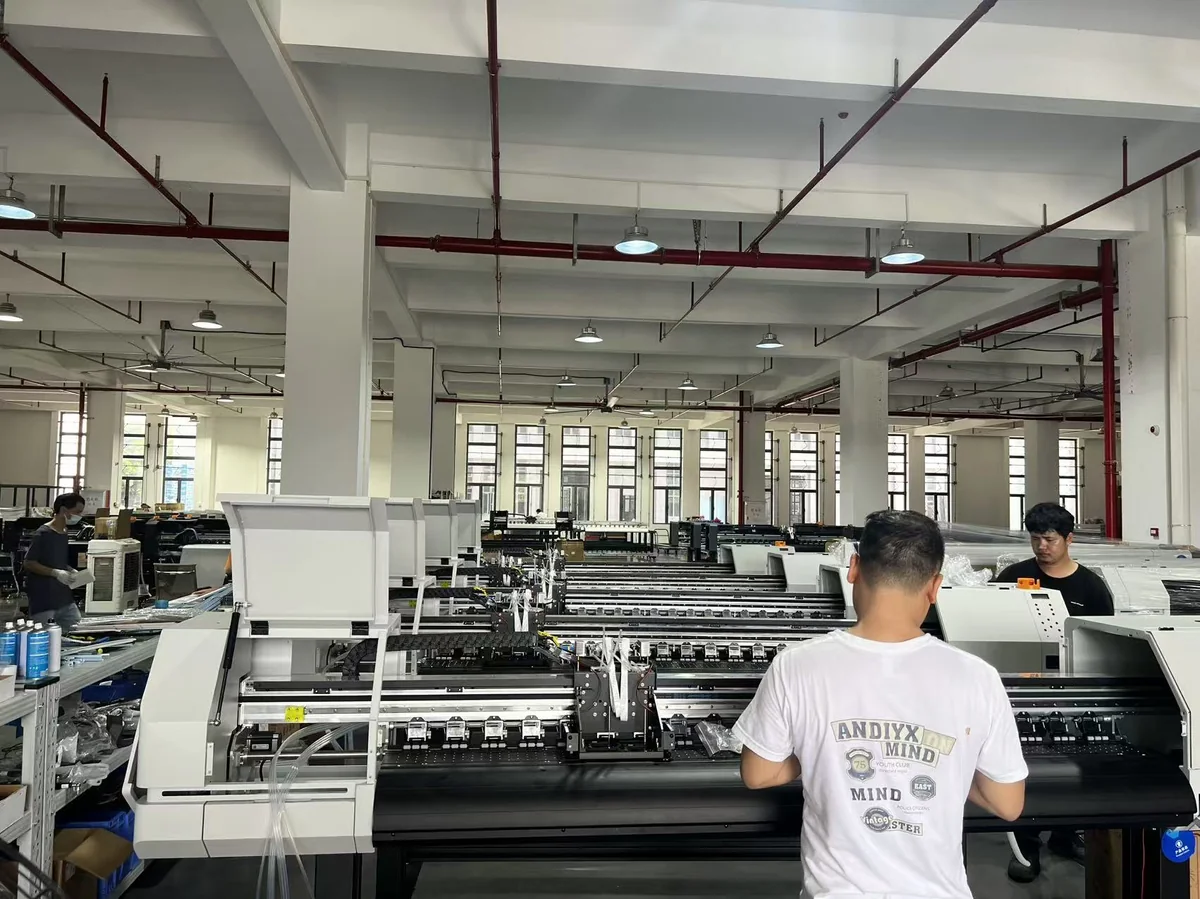

QC

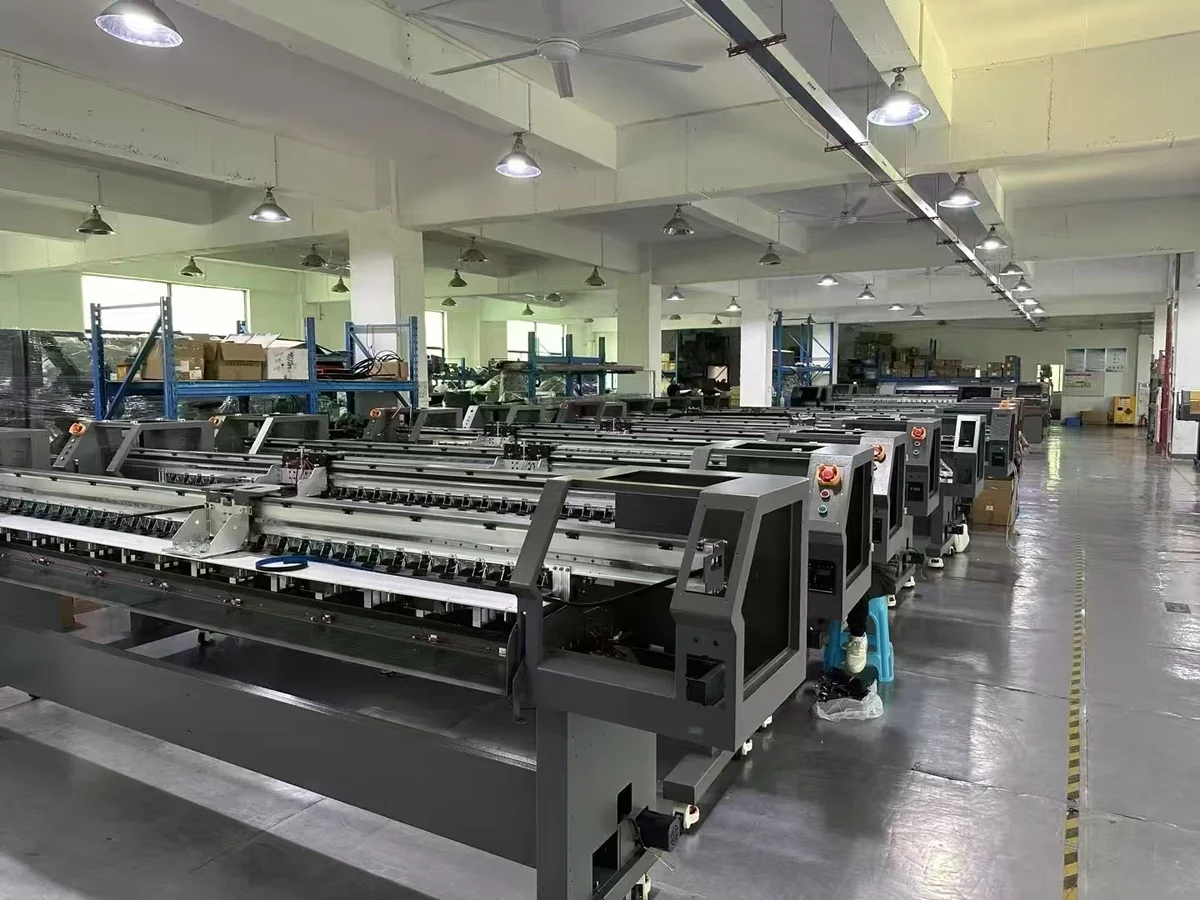

Testing
Pre-Shipment

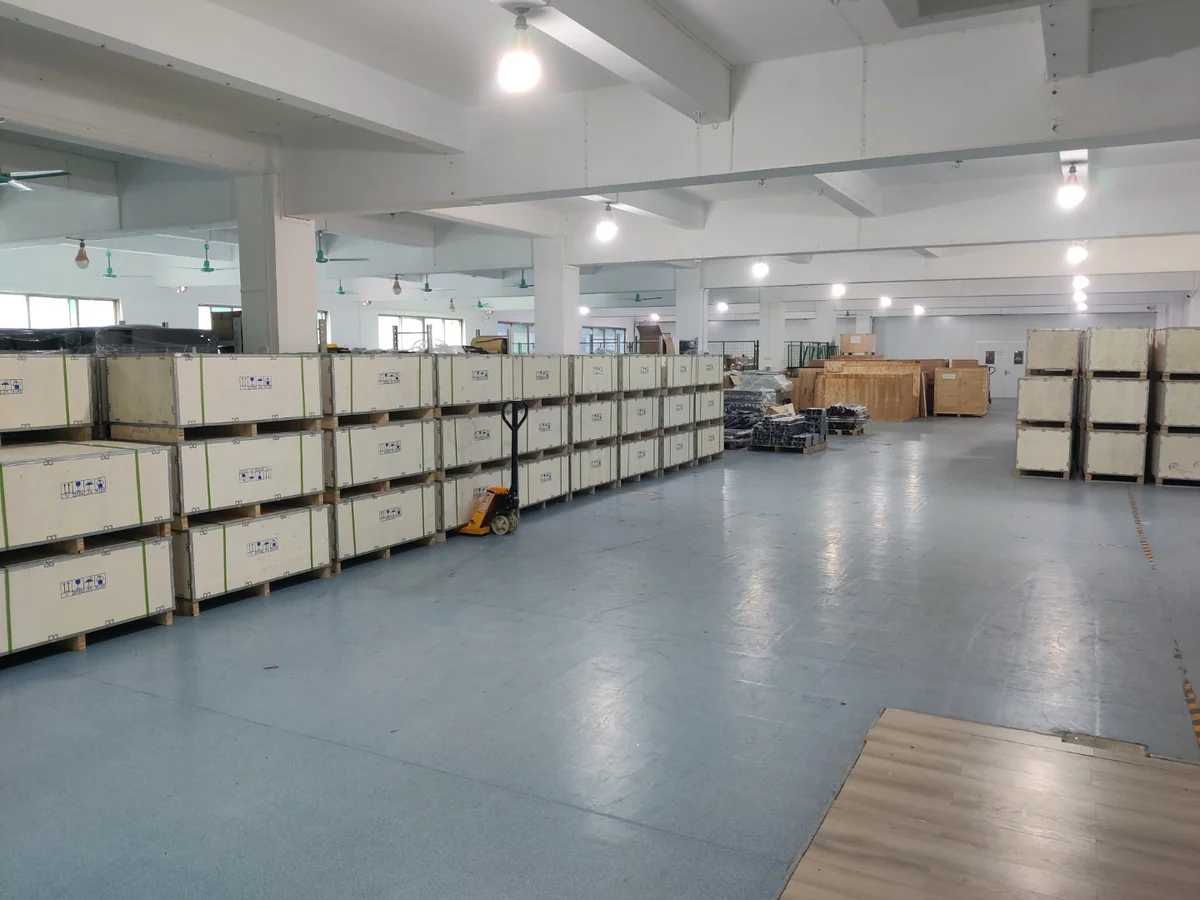

Warehouse

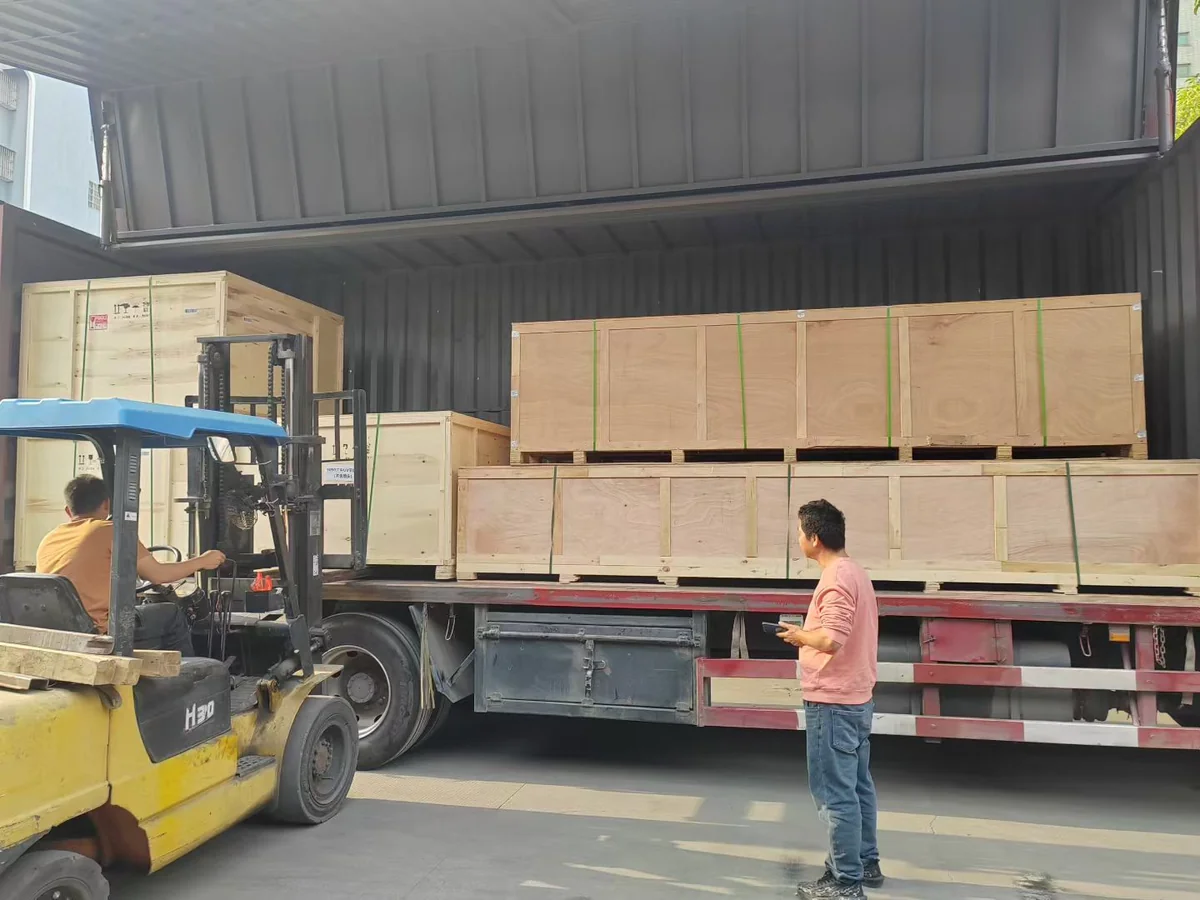

PackagingCertifications & Compliance
FuJia products meet international quality and safety standards.
Comply with EU standards.
Certified quality management.
Verified supplier.
Independent verification.
Learn More
Frequently Asked Questions
What is the main advantage of the dual-station design?
Load/unload garments on one station while printing on the other. Improves production efficiency and reduces downtime during high-volume jobs.
What printhead does this model use?
4 Epson i3200-A1 printheads for fast speed and stable commercial-quality DTG printing.
What businesses is this suitable for?
Medium and large garment printing enterprises, printing factories, and apparel fulfillment centers with high daily output needs.
What fabrics and inks are compatible?
DTG textile ink. Works with cotton and blended fabrics. Light and dark T-shirts with standard pre-treatment.
How about maintenance and technical support?
Runs stably with low maintenance. Efficient ink circulation system. Remote support, maintenance guidance, and full spare parts supply.
What is the delivery time?
3–10 working days after deposit. Stocked year-round.
What payment methods?
T/T, D/P, Western Union, Credit Card, Alibaba Trade Assurance.
How to get technical support?
7×24 online support. Send problem details, photos or videos for remote assistance.
What if parts are damaged?
Full spare parts supplied. Send damaged parts for replacement. Spare parts package recommended.
Can our technicians attend training?
Yes, free professional training at our Guangzhou factory.
Do you supply consumables and spare parts?
Yes, high-quality consumables and spare parts for stable operation.
