Advantages
Premium Transmission System, High Speed & Ultra Accuracy Equipped with Honson mainboard, Leadshine servo motor and silent THK guide rail. The high-end transmission system ensures low-noise and stable operation. It delivers precise positioning and sharp pattern outlines without blurring or dislocation even during high-speed printing.
Dual White Ink Protection, No Clogging & Cost Saving The standard automatic power-off white ink circulation system prevents ink precipitation and nozzle blockage, supporting long-term uninterrupted mass production. Built-in front white ink shaking function enables the reuse of expired DTF white ink, greatly cutting consumable procurement costs.
Dual-section Constant Temperature Control, Wide Compatibility Featured with front and rear dual-section heating and real-time temperature & humidity monitoring. With stable and accurate temperature control, it is compatible with all mainstream DTF consumables. The printed patterns feature excellent transfer fastness and consistent mass production quality.
Multiple Intelligent Protection, Lower Production Waste Equipped with a high-precision ranging grating and automatic ink shortage alarm system. It realizes real-time material monitoring and early warning, effectively avoiding empty printing and material waste, reducing production scrap rate and operational costs.
Integrated & Reinforced Frame, Stable, Silent & Space-saving The reinforced body structure reduces operating vibration greatly, ensuring silent, stable and high-precision printing with uniform and delicate output in long-term production. The integrated printer and powder shaker design saves more working space with a compact structure.
Quick Specifications
Product Specifications
| Parameter | Value |
|---|---|

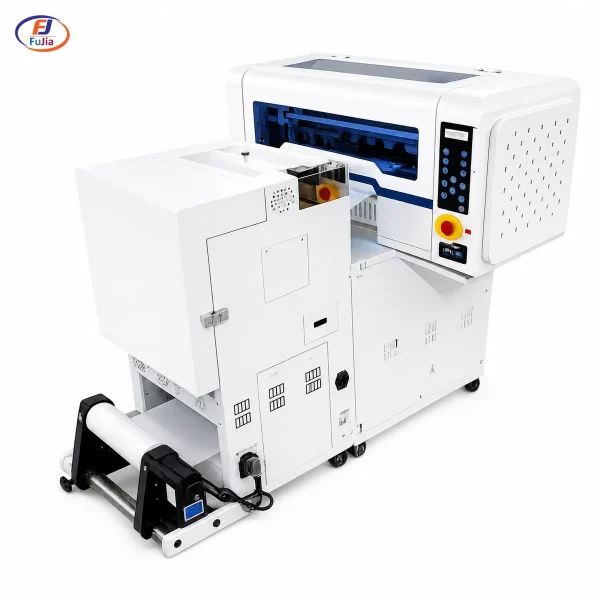

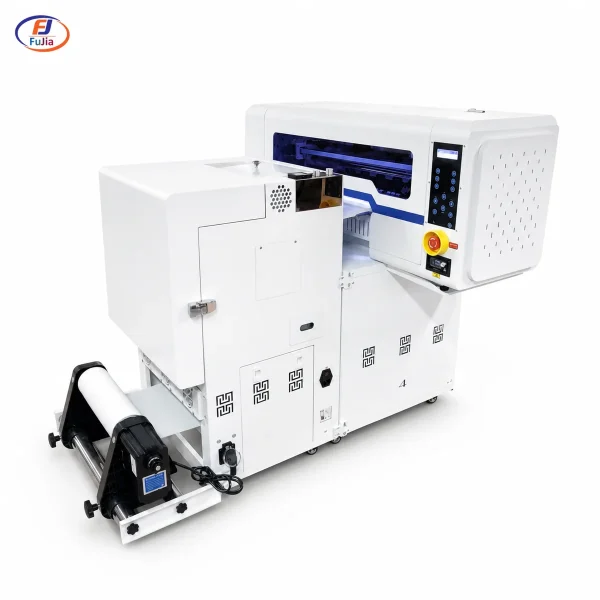

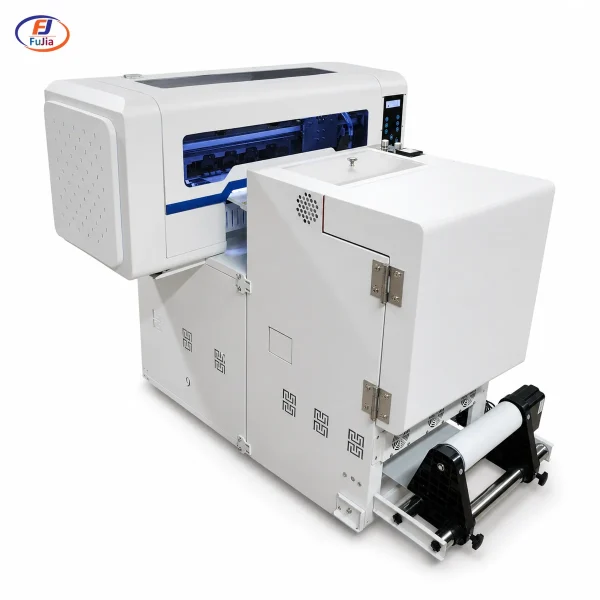

| Model | A3-2Head DTF Printer |
| Print System. Print Head | 2 Epson XP600 / I1600 |
| Print System. Print Head Qty | 2 |
| Print System. Print Width | A3 / 300–350mm (13 inch) |
| Print System. Print Speed | 4Pass: 8 sqm/hr | 6Pass: 6 sqm/hr | 8Pass: 4 sqm/hr |
| Print System. Resolution | 720×720 dpi / 720×1080 dpi / 720×1440 dpi |
| Print System. Print Height | 2–10 mm |
| Ink System. Ink Type | DTF water-based ink (FuJia dedicated) |
| Ink System. Ink Colors | CMYK + White + LC + LM (4/6 colors) |
| Ink System. Ink Cartridge Capacity | 500ml per color (CISS) |
| Ink System. Ink Supply Mode | Siphon + positive pressure |
| Ink System. Moisturizing | Automatic sealed moisturizing and cleaning |
| Media & Consumables. Printable Media | PET DTF Transfer Film |
| Media & Consumables. Compatible Fabrics | Cotton, polyester, sportswear, flags, various fabrics |
| Media & Consumables. Media Feeding | Auto Feed |
| Media & Consumables. Supported Image Formats | TIFF, JPG, EPS, PDF |
| Media & Consumables. Operating Temperature | 15℃–30℃ |
| Media & Consumables. Operating Humidity | 25%–50% |
| Heating System | Front & rear dual external heating; shaker with IR drying system |
| Connectivity. Interface | USB 2.0 + Gigabit Ethernet |
| Connectivity. RIP Software | Maintop, Photoprint, RIIN, Flexi |
| Connectivity. PC Requirements | 64-bit Windows 10, NTFS, C drive 100GB+ free, WD500G, ATI GPU 4GB+, Intel Quad-Core Gen5/i7, dual drive, Gigabit NIC |
| Body & Power. Power Supply | 110V/220V, 50Hz/60Hz (AC 110V ±10%, AC 220V ±10%) |
| Body & Power. Printer Power | 230W |
| Body & Power. Shaker Heating Power | 1,200W |
| Body & Power. Printer Weight | 73 kg (net) / 83 kg (gross) |
| Body & Power. Printer Dimensions | 96 × 61 × 64 cm |
| Body & Power. Printer Package Dimensions | 102 × 65 × 68 cm |
| Body & Power. Shaker Weight | 34 kg (net) / 50 kg (gross) |
| Body & Power. Shaker Dimensions | 70 × 50 × 50 cm |
| Body & Power. Shaker Package Dimensions | 75 × 55 × 50 cm |
| General. Packaging | Wooden case |
| General. Brand | FuJia |
| General. Printing Type | Roll-to-Roll, Full-color, Fully Automatic |
| General. OS Support | 64-bit Windows 10/11 |
| General. Origin | Guangzhou, China |
| Machine Features 1 | New integrated cleaning and moisturizing stack module |
| Machine Features 2 | Staggered trolley base plate design for easy adjustment and higher printing precision |
| Machine Features 3 | Epson printheads, print speed up to 4–11 sqm/hr |
| Machine Features 4 | Gigabit network data transmission for high-definition image output |
| Machine Features 5 | Imported components: THK silent guide rails, Japanese NSK bearings, German igus cable chains, Leisai integrated servo motors |
| Machine Features 6 | Automatic tension rewinder with anti-scratch design to protect printheads |
| Printhead Parameters. Printhead Qty | 2 XP600/I1600/I3200 printheads |
| Printhead Parameters. Printhead Height | 2–3 mm |
| Printhead Parameters. Printhead Functions | Anti-clog flash spray, automatic moisturizing |
| Printhead Parameters. Cleaning System | Fully automatic cleaning |
| Working Environment. Standard Temperature | 18℃–25℃ |
| Working Environment. Standard Humidity | 35%–65% RH |
| Working Environment. Extended Temperature | 40℃–100℃ |
| Working Environment. Extended Humidity | 20%–80% RH |
| Interface & Software. Print Interface | USB 3.0, Gigabit network port |
| Interface & Software. Supported OS | 64-bit Windows XP, Win7, Win10 |
| Interface & Software. Operation Language | Chinese, English |
| Interface & Software. Control System | Printer Manager |
| Interface & Software. Color Management Software | Maintop, Photoprint, Flexi, RIIN |
| Power Parameters. Rated Voltage | 110V/220V, 50Hz/60Hz |
| Power Parameters. Voltage Tolerance | AC 110V ±10%, AC 220V ±10% |
| Noise Level | <32 dB (min), ≤65 dB (max) |
| Structural Advantages 1 | Widened base |
| Structural Advantages 2 | Equipped with adjustable variable-frequency motor |
| Structural Advantages 3 | Ultra-wide reinforced beam with dual THK silent guide rails for stable operation |
| Warranty. Main Machine | 12 months |
| Warranty. Mainboard | 12 months |
| Warranty. Consumables Excluded | Printheads, dampers, cables, ink caps are consumables not covered by warranty |
| Warranty. Special Notice | Ink system, printheads, ink caps of F1/F2/F4 series not covered |
| After-Sales. Service 1 | Free standard spare parts provided |
| After-Sales. Service 2 | Professional engineering team online technical support |
| After-Sales. Service 3 | 18+ years industry experience |
| After-Sales. Service 4 | Pre-sales team provides quotes for DTG, UV DTF, eco-solvent, sublimation, UV flatbed and DTF printers |
| After-Sales. Service 5 | Free on-site practical training at Guangzhou factory for customer technicians |
| After-Sales. Delivery & Payment 1 | Delivery: 3–10 working days after deposit; regular models stocked year-round |
| After-Sales. Delivery & Payment 2 | Payment: T/T, D/P, Western Union, credit card, Alibaba Trade Assurance |
| After-Sales. Delivery & Payment 3 | Spare Parts: Full range of original parts supplied; return damaged parts for new replacements; spare parts kit recommended |
Product Details
Engineered with premium components for industrial-grade reliability.

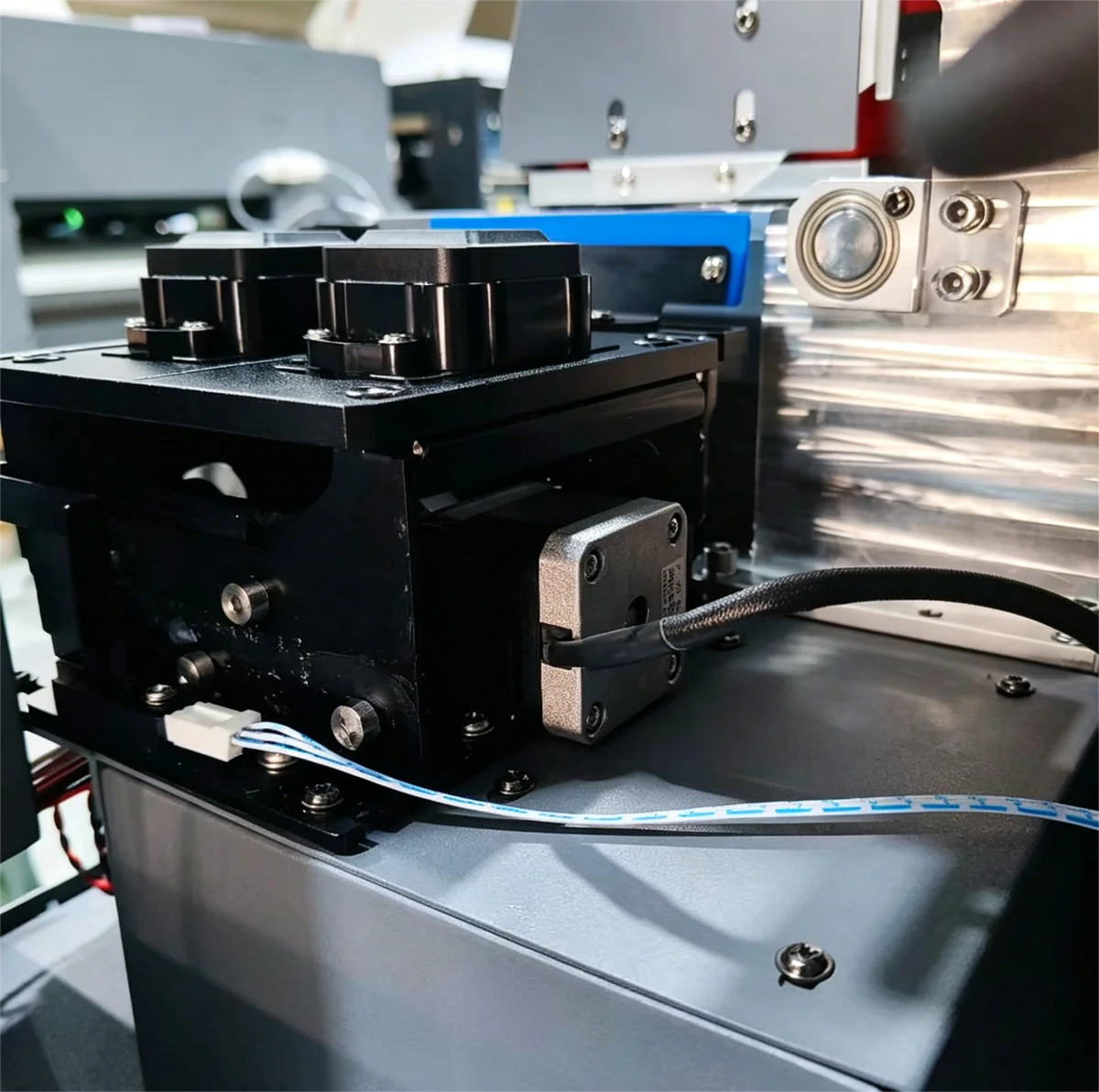

Our smart moisturizing ink cartridge delivers
Our smart moisturizing ink cartridge delivers superior sealing and prolonged moisture retention.
It adopts automatic ink pumping for print head cleaning and moisturizing.
With dual automatic & manual lift functions, it safeguards your print head against dry-out and clogging.

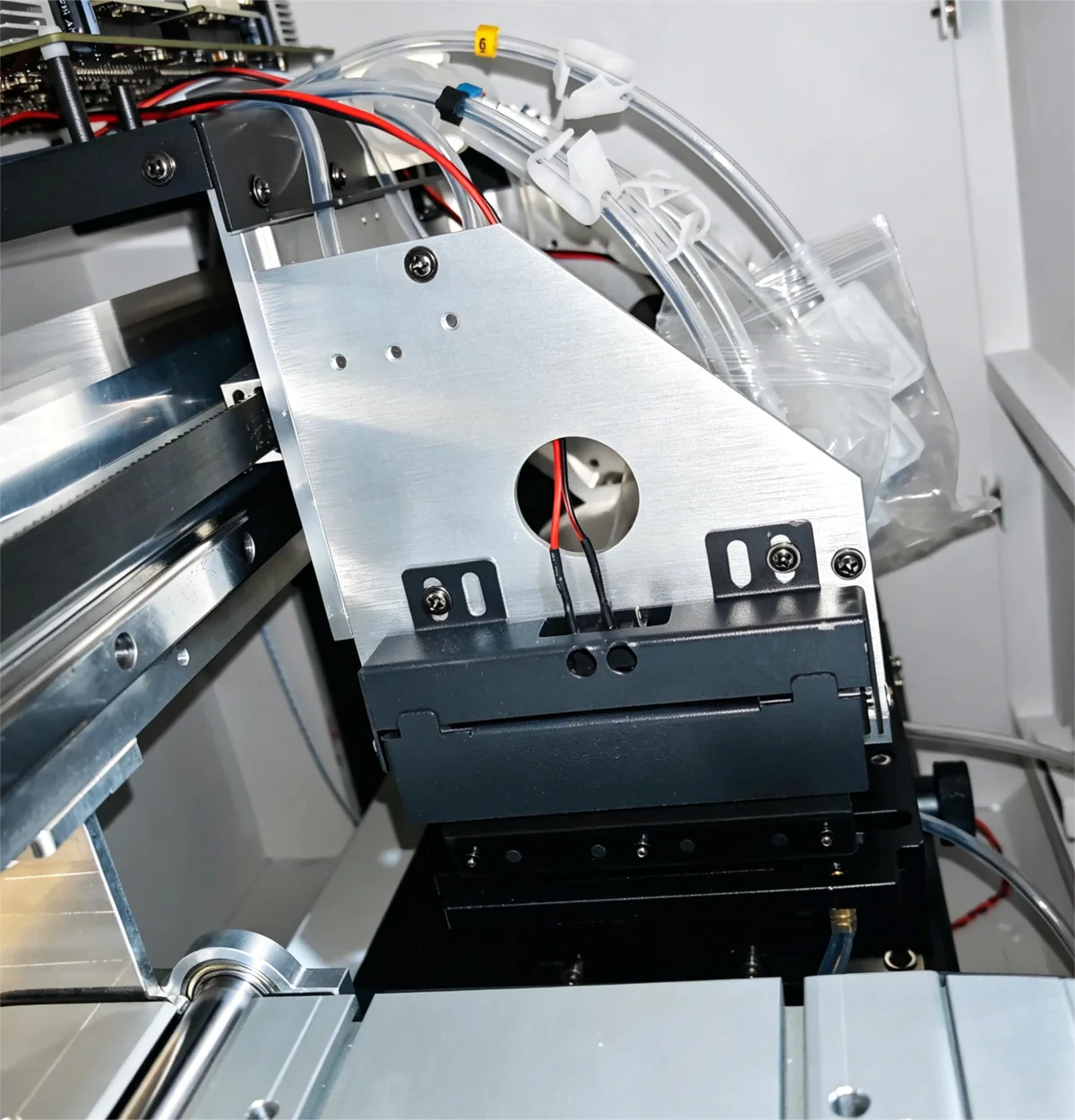

Equipped with dual-direction Leadshine integrated brushless
Equipped with dual-direction Leadshine integrated brushless servo motors and high-precision linear decoding drive, this unit features high accuracy, low vibration, tiny tolerance and outstanding stability. It ensures consistent power for print head and paper movement.

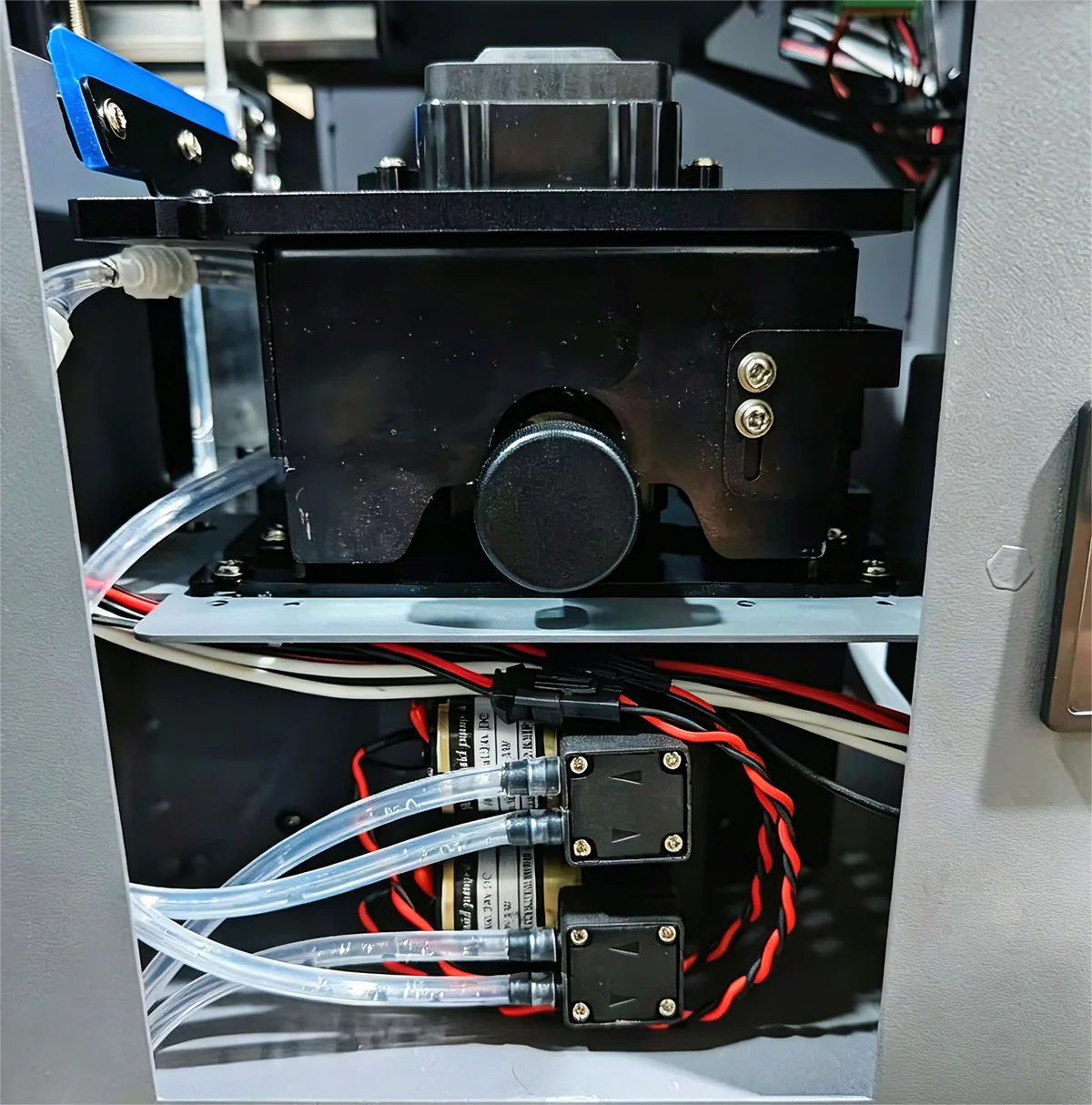

A premium ink pump comes with
A premium ink pump comes with every ink pad. It drains waste ink in time to avoid clogging, and is also used for print head cleaning.
Fitted with anti-collision bumpers on both
Fitted with anti-collision bumpers on both sides of the carriage bracket. It shuts down instantly when blocked by paper, abnormal air flow or debris, effectively safeguarding the print head.
Dual-motor system manages PET film and
Dual-motor system manages PET film and paper reeling. Accurate tension control and speed sync keep the media running smoothly.
Built-in 2mm suction holes and powerful
Built-in 2mm suction holes and powerful fan ensure exceptionally stable paper movement. The imported adjustable press wheels reduce static and ink splashing. They fit various media, stop paper shifting, and maintain consistent printing performance.

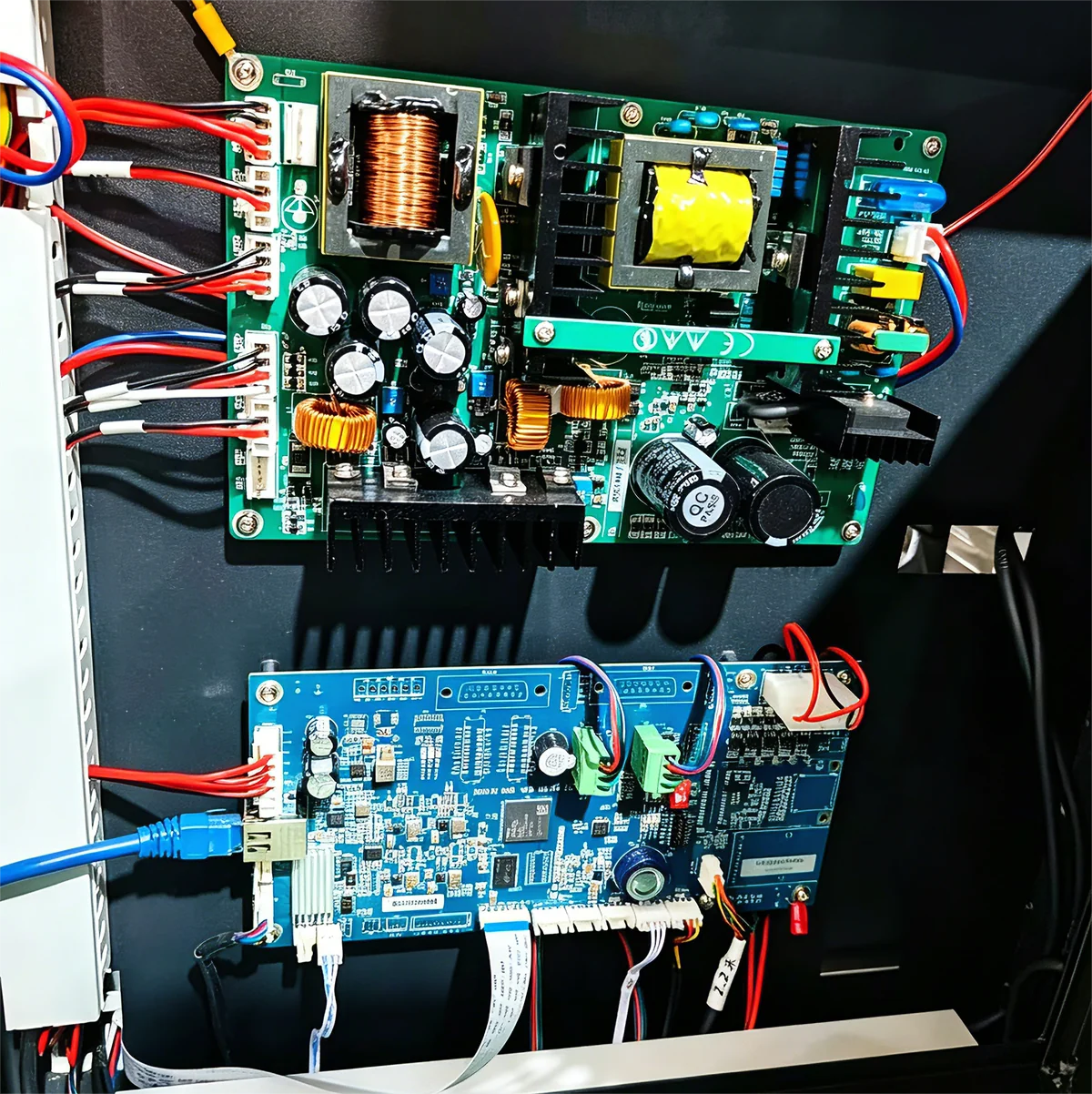

This printer adopts Honson mainboard and
This printer adopts Honson mainboard and Mean Well power supply. These high-quality components deliver outstanding print precision and reliable long-term operation.

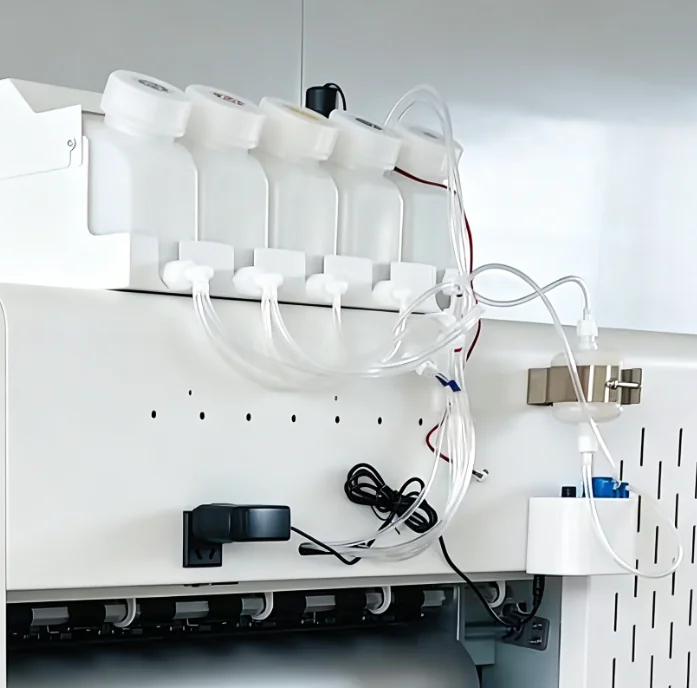

Featuring a high-end white ink circulator
Featuring a high-end white ink circulator that operates continuously during power outages. With built-in agitation and filtration, it delivers consistent DTF ink flow, avoids head clogging and guarantees reliable performance round the clock.
How to Choose Your DTF Printer
Compare our A3 DTF Printer with other models in the FuJia lineup.
| Feature | A3 2-Head | A1 4-Head | A1 2-Head | A2 2-Head |
|---|---|---|---|---|
| Print Head | 2x Epson I1600 | 4/5x I3200 | 2x I3200 | 2x I3200 |
| Print Width | 330mm | 650mm | 650mm | 450mm |
| Max Speed | 8 sqm/hr | 27 sqm/hr | 15 sqm/hr | 15 sqm/hr |
| Ink Capacity | 500ml | 1,500ml | 1,000ml | 500ml |
| White Ink Circulation | Manual | Auto | Auto | Manual |
| Best For | Entry-level | High-volume | Mid-volume | Small studios |
DTF Printing Process
Preliminary Preparation & Document Processing
DTF Printer Parameter Settings
Add DTF Ink, DTF Film, and DTF Hot Melt Powder
Powder Dispensing & Curing
Heat Transfer Printing & Pressing
Film Removal & Quality Inspection
Applications
Applications include: T-shirts, sweatshirts, canvas bags, sportswear, swimwear, jeans, leather goods, tote bags, sweaters, scarves, etc.
What's in the Box
Compatible Consumables
Use FuJia-certified consumables. Browse all DTF consumables.
| Consumable | Specification | Replacement Cycle |
|---|---|---|
| DTF Inks | Water-based, 1,000ml bottle | As consumed |
| DTF Film | A3 width, 100m roll | As consumed |
| DTF Hot Melt Adhesive Powder | Fine grade, 1kg bag | As consumed |
OEM & ODM Customization
Custom Branding
Logo printing on machine body, control panel, packaging, and user manuals.
Hardware Customization
Adjustable print width, printhead configuration, color options, voltage specs.
Software Customization
Pre-installed RIP software, custom UI language packs, operation manuals.
Packaging Design
Custom-branded wooden cases, foam inserts, and accessory packaging.
After-Sales Service
Global Shipping & Fast Delivery
- Export to 60+ countries worldwide
- Wooden case packaging
- Sea, air, rail & express
- EXW / FOB / CIF / CFR
- Fast lead time
- Full logistics tracking
Technical Support
- Dedicated representative
- 7×24 online support
- Spare parts inventory
- Firmware upgrades
- Free on-site training
- OEM/ODM project support
Warranty Terms
Main machine & mainboard covered.
Consumables excluded: printheads, dampers, cables, ink caps.
About FuJia
DTF, UV, DTG, ECO Solvent, Sublimation.
Sea, air, rail and express shipping.
Standard models stocked year-round.
Free on-site training at Guangzhou factory.

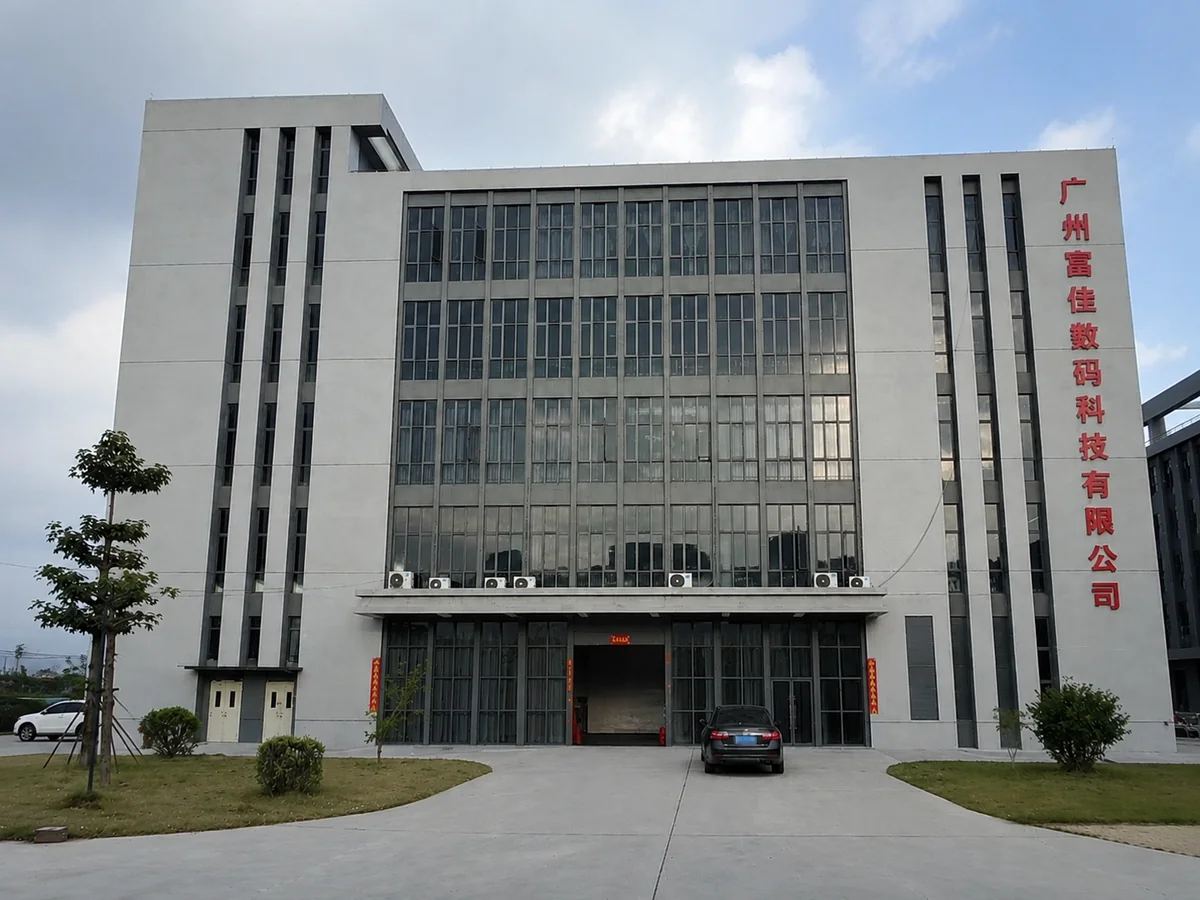

Factory Entrance
Headquarters

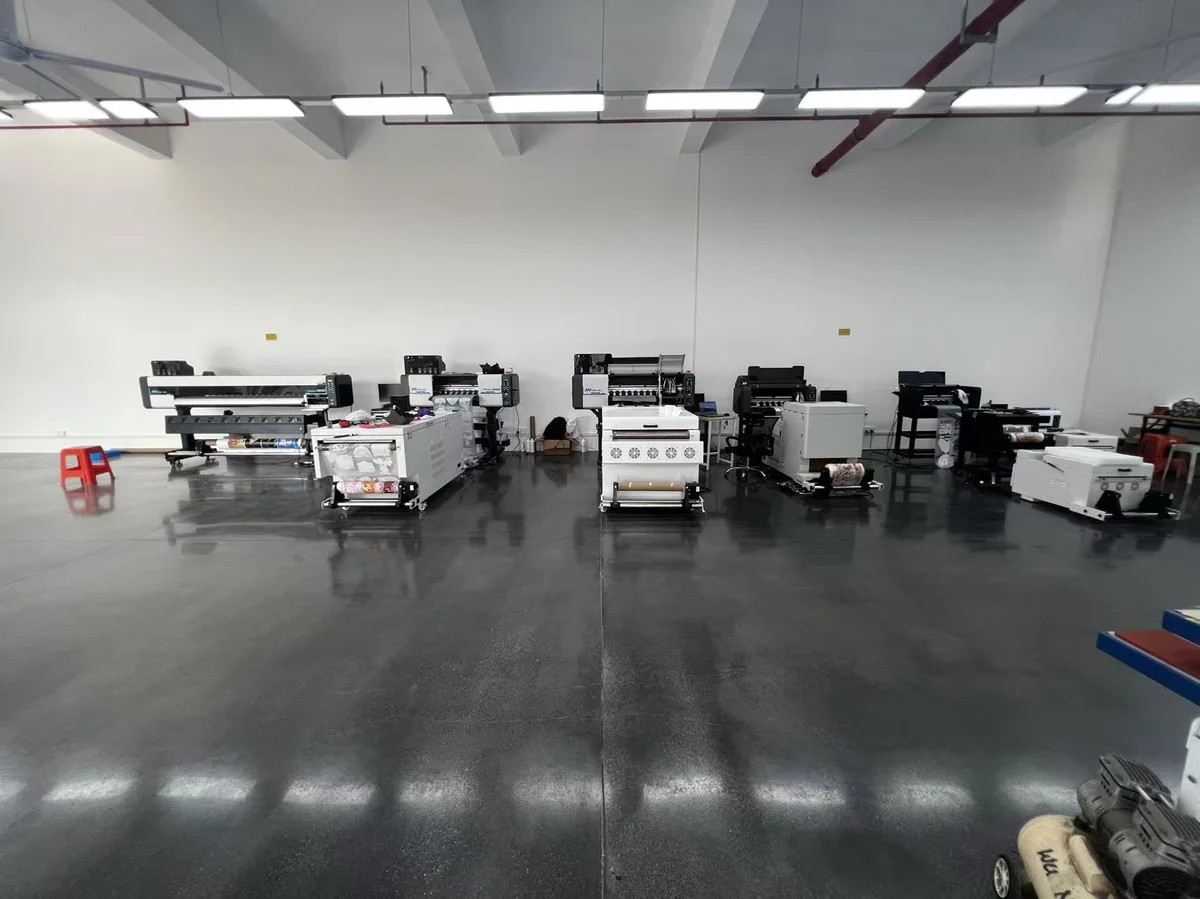

Showroom
Our TeamQuality Assurance & Factory Tour
Every FuJia printer undergoes rigorous testing before shipment.
Assembly

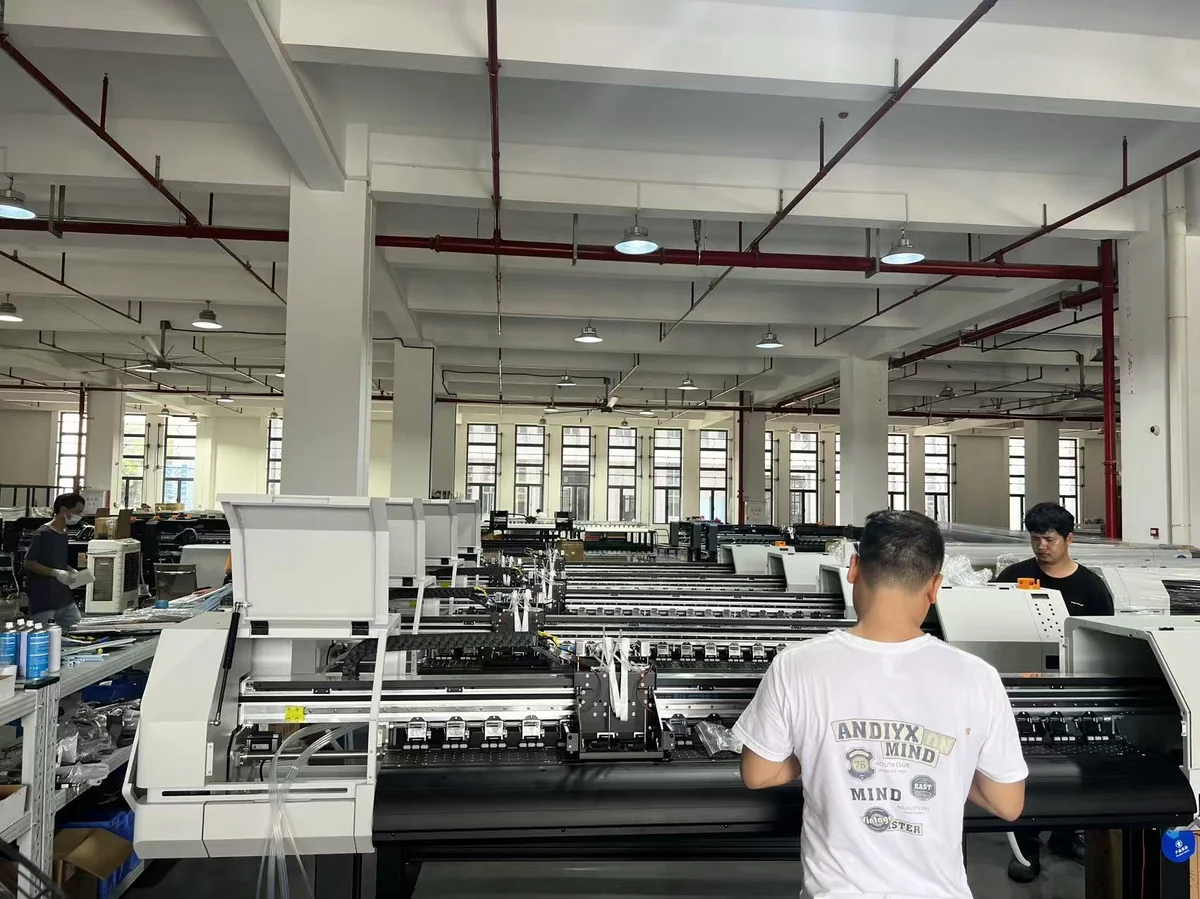

QC
Testing
Pre-Shipment

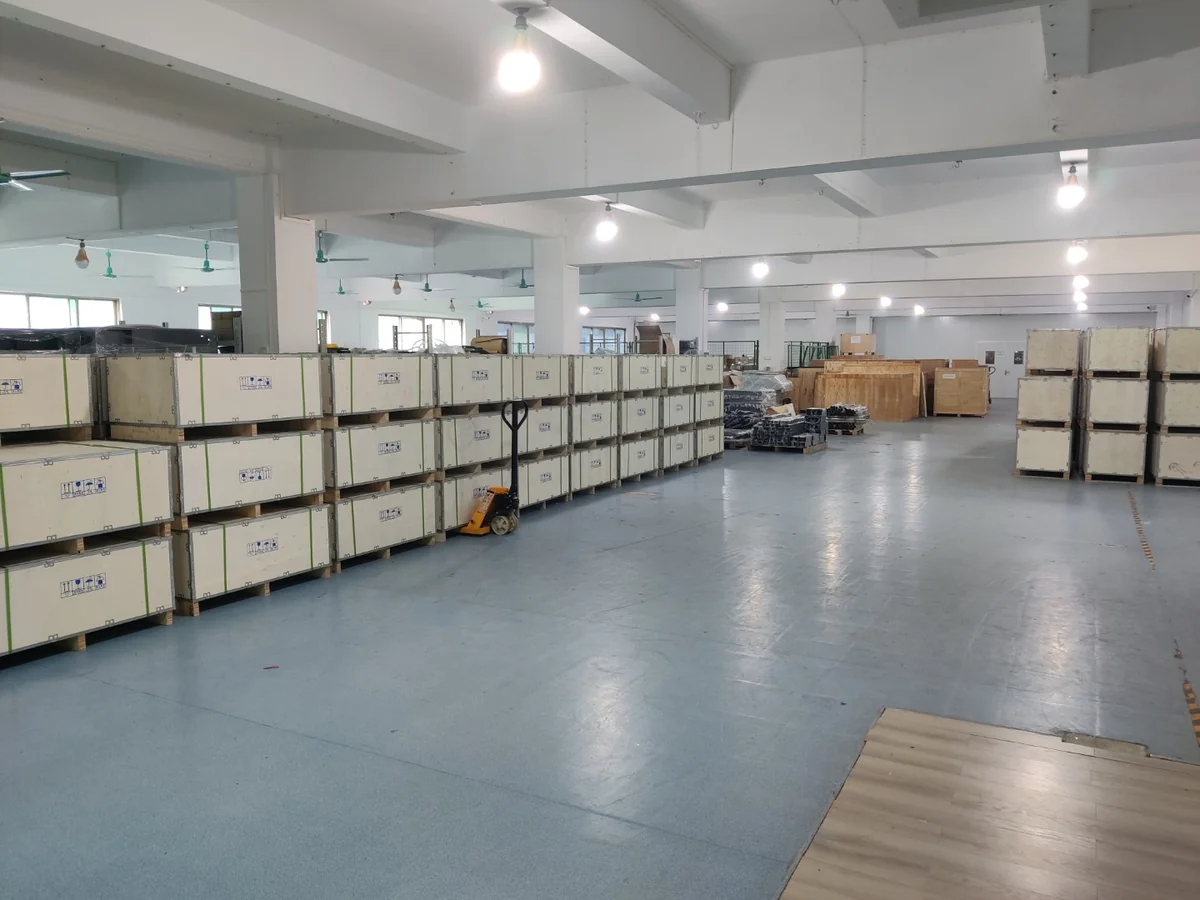

Warehouse
PackagingCertifications & Compliance
FuJia products meet international quality and safety standards.
Comply with EU standards.
Certified quality management.
Verified supplier.
Independent verification.
Learn More
Frequently Asked Questions
What are the main advantages of the A3-2Head DTF Printer?
Lowers DTF printing barrier with minimum procurement cost. Meets small-batch in-house production needs for garment factories.
What printhead does this model use?
Epson XP600/I1600/I3200 printheads — fast speed and stable performance for high-quality small-batch custom apparel printing.
What businesses is this suitable for?
Small garment printing enterprises, startups, and large apparel companies handling small custom sample orders.
What fabrics and inks are compatible?
DTF ink compatible with a wide range of garment fabrics.
How is maintenance handled?
Stable operation, low maintenance. Efficient ink circulation system. Remote technical support, maintenance guidance, and full spare parts supply.
What is the delivery time?
3–10 working days after deposit. Some models stocked year-round.
What payment methods?
T/T, D/P, Western Union, credit card, Alibaba Trade Assurance.
How to get technical support?
7×24 online support. Send problem details, photos or videos for remote diagnosis.
Can spare parts be replaced?
Full spare parts supplied. Return damaged for replacement. Spare parts kit recommended.
Can technicians visit for training?
Yes, free professional training at our Guangzhou factory.
Do you provide consumables and accessories?
Yes, highest quality consumables and accessories for stable operation.
