Advantages
Premium Transmission & Premium Drying System — Equipped with Honson mainboard, Leadshine servo motor and silent THK guide rail for low-noise and ultra-stable operation. Matched with a high-quality drying system, it ensures excellent printing curing effect and consistent output quality.
Dual I3200 Printheads, 60cm Wide High-speed & High-precision Printing — Fitted with dual original I3200 printheads to deliver fast and ultra-precise printing. The 60cm wide printing format meets small-batch sublimation printing needs perfectly, balancing high productivity and delicate printing quality.
Space-saving Design, Perfect for Startups & Small Businesses — Compact footprint saves much workspace without requiring large professional venues. It is tailor-made for startups and small enterprises with low order volume, ideal for cost-effective small-batch production.
Solid Mechanical Structure, Silent & Accurate Printing — The optimized solid mechanical structure ensures jitter-free and silent operation throughout the printing process. It effectively improves overall printing accuracy and avoids blurring, offset and other printing defects.
Reinforced Vibration-damping Body, Stable Long-term Production — The reinforced body structure greatly reduces operational vibration. It supports long-term continuous mass production with stable and silent running, delivering uniform, delicate prints consistently.
Quick Specifications
Product Specifications
| Parameter | Value |
|---|---|

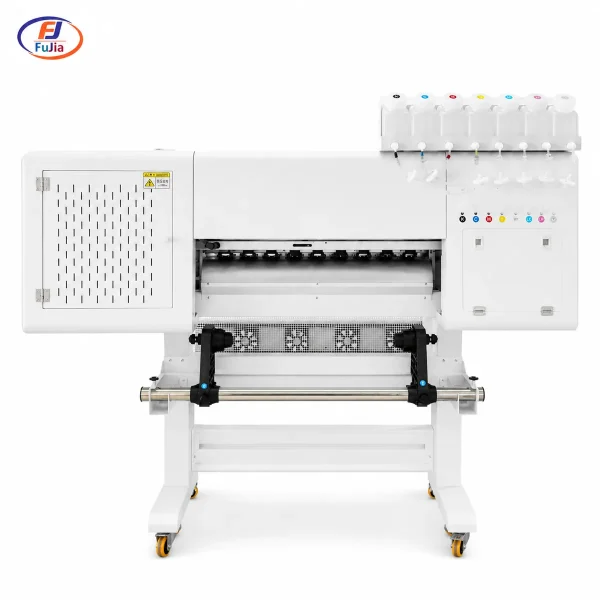

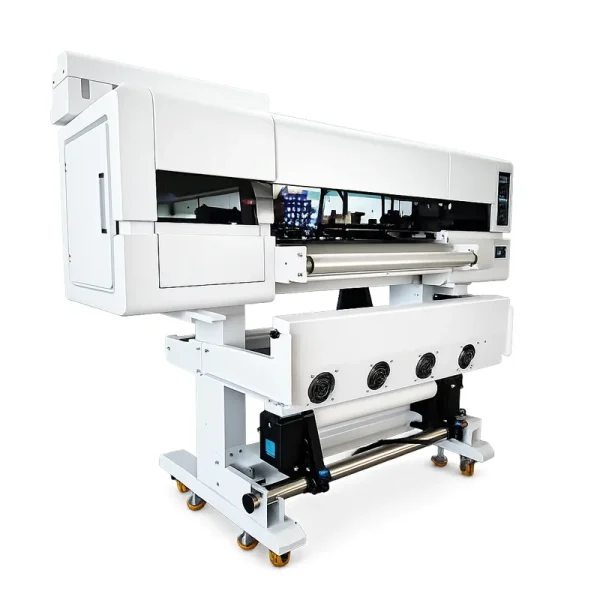

| Model | A1-2Head Sublimation Printer |
| Machine Features 1 | Adopts a new integrated ink stack module with cleaning and moisturizing functions |
| Machine Features 2 | Trolley base plate designed in staggered layout for easy adjustment and higher printing precision |
| Machine Features 3 | Equipped with Epson printheads, maximum printing speed reaches 40 sqm/hr |
| Machine Features 4 | Built with Gigabit network data transmission port for stable output and fast transmission of high-definition images |
| Machine Features 5 | Fitted with imported components: THK ultra-quiet guide rails, Japanese NSK bearings, German igus cable chains, Leisai integrated servo motors |
| Machine Features 6 | Comes with automatic tension rewinder; rolls up media quickly, supports automatic paper measuring, anti-scratch design to prevent paper curling and protect printheads |
| Product Specifications. Model | A1-2Head Printer |
| Product Specifications. Application | Paper printing, garment printing, small custom sublimation printing |
| Product Specifications. Printing Interface | USB 2.0 |
| Product Specifications. Printing Width | 60–63 cm |
| Product Specifications. Color Configuration | 4 Colors (Cyan, Magenta, Yellow, Black) |
| Product Specifications. Printing Speed | Up to 40 sqm/hr |
| Product Specifications. Supported Image Formats | TIFF, JPG, EPS, PDF |
| Product Specifications. Machine Weight | 165 kg |
| Product Specifications. Total Package Weight | 195 kg |
| Product Specifications. Machine Dimensions (L×W×H) | 166 × 75 × 61 cm |
| Product Specifications. Package Dimensions (L×W×H) | 175 × 85 × 68 cm |
| Product Specifications. Power Rating for Heating | 1,200W (Drying & Heating) |
| Product Specifications. Transport Package | Wooden Case |
| Product Specifications. Brand | FuJia |
| Product Specifications. Printing Type | Roll-to-Roll Printing |
| Product Specifications. Color Mode | Full-color Printing |
| Product Specifications. Automation Grade | Fully Automatic |
| Product Specifications. Supported System | 64-bit Windows 10 / Windows 11 |
| Product Specifications. Ink Type | Sublimation Ink, FuJia Special Sublimation Ink |
| Product Specifications. Print Head | 1 / 2 / 4 Epson Printheads |
| Product Specifications. Heating System | Intelligent Embedded Segmented Heating System |
| Product Specifications. RIP Software | Maintop, Photoprint, RIIN |
| Product Specifications. Printing Media | Heat Transfer Paper |
| Product Specifications. Origin | Guangzhou, China |
| Printhead Parameters. Quantity of Printheads | 2 pcs I3200 printheads |
| Printhead Parameters. Printhead Height | 2–3 mm |
| Printhead Parameters. Printhead Functions | Anti-blocking flash spray, automatic moisturizing |
| Printhead Parameters. Cleaning System | Fully automatic cleaning |
| Ink System. Ink Type | Special sublimation textile ink |
| Ink System. Color Configuration | 4 Colors (C/M/Y/K, CMYK+White) / 4/8 Colors (CMYK+LC, LM, LK, LLK) |
| Ink System. Ink Cartridge Capacity | 1,000ml per color |
| Ink System. Supply Mode | Siphon & positive pressure ink bag |
| Working Environment. Standard Working Temperature | 18℃ – 25℃ |
| Working Environment. Standard Humidity | 35% – 65% RH |
| Working Environment. Extended Working Temperature | 40℃ – 100℃ |
| Working Environment. Extended Humidity | 20% – 80% RH |
| Interface & Software. Printing Interface | USB 3.0, Gigabit network port |
| Interface & Software. Supported OS | Windows XP (64-bit), Win7, Win10 |
| Interface & Software. Operation Language | Chinese, English |
| Interface & Software. Control System | Printer Manager |
| Interface & Software. RIP Software | Maintop, Photoprint, Flexi, Riin |
| Power Parameters. Rated Voltage | 110V/220V, 50Hz/60Hz |
| Power Parameters. Voltage Tolerance | AC 110V ±10%, AC 220V ±10% |
| Power Parameters. Rated Current | 16A |
| Power Parameters. Total Machine Power | 32W (Min) / 2,300W (Max) |
| Power Parameters. External Heating Power | 1,200W |
| Noise Level | Minimum: <32dB, Maximum: ≤65dB |
| Structural Advantages 1 | Widened base frame |
| Structural Advantages 2 | Equipped with adjustable variable frequency motor |
| Structural Advantages 3 | Extra wide and thick main beam with dual THK silent guide rails for stable operation |
| Warranty. Full Machine | 12 months |
| Warranty. Main Board | 12 months |
| Warranty. Consumables Exclusion | Printheads, dampers, cables and ink caps are consumables and not covered |
| Warranty. Special Notice | Ink system, printheads and ink caps of F1/F2/F4 series excluded |
| After-Sales. Service Items 1 | Free standard spare parts provided |
| After-Sales. Service Items 2 | Professional engineering team online technical support |
| After-Sales. Service Items 3 | Over 18 years of experience |
| After-Sales. Service Items 4 | Pre-sales team provides quotations and customized solutions |
| After-Sales. Service Items 5 | Free on-site practical training at factory |
| After-Sales. Delivery & Payment 1 | Lead Time: 3–10 working days after deposit; regular models always in stock |
| After-Sales. Delivery & Payment 2 | Payment: T/T, D/P, Western Union, Credit Card, Alibaba Trade Assurance |
| After-Sales. Delivery & Payment 3 | Spare Parts: Full range of original spare parts; return defective for replacements; spare parts package recommended |
Product Details
Engineered with premium components for industrial-grade reliability.

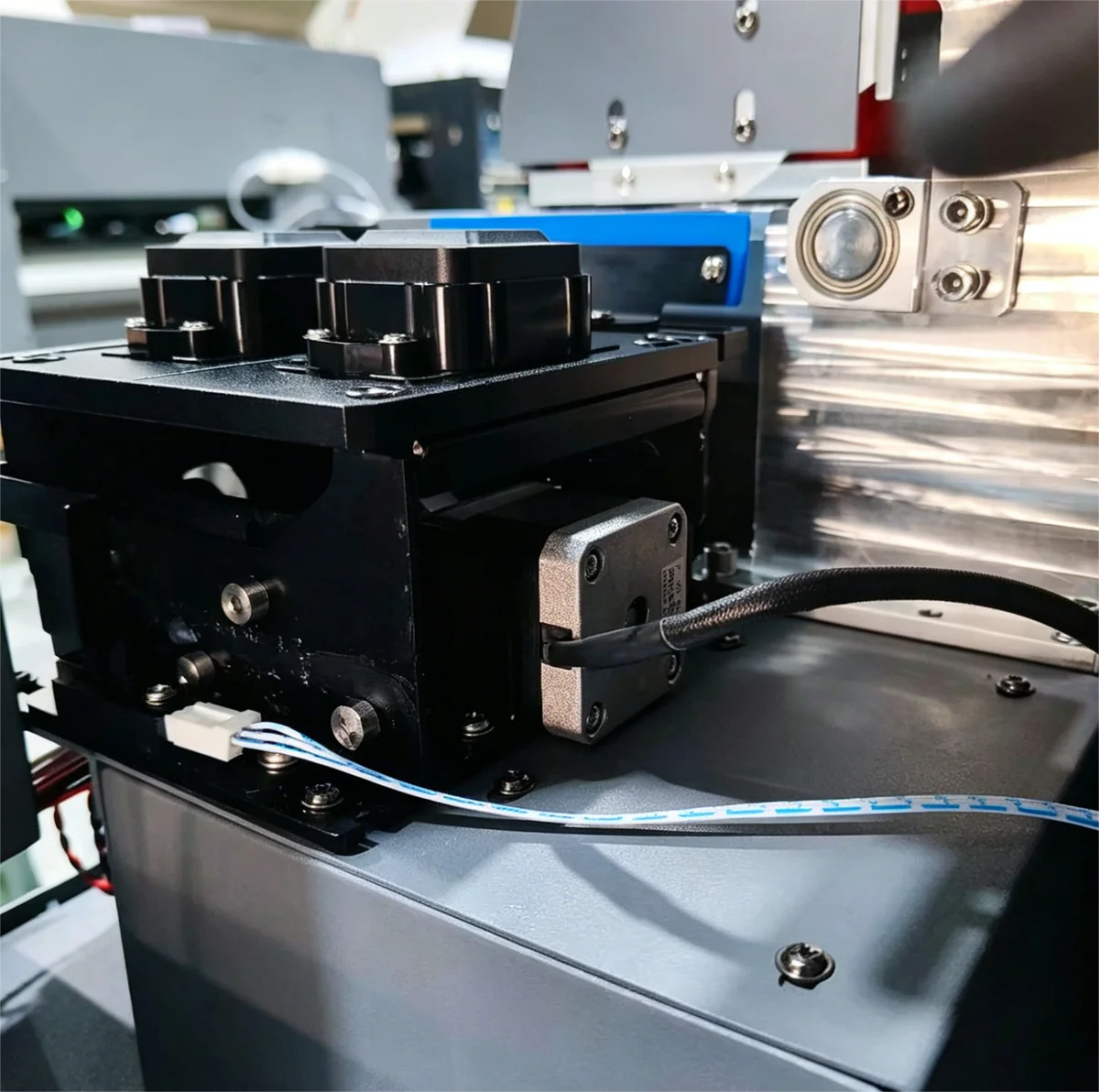

Our smart moisturizing ink cartridge delivers
Our smart moisturizing ink cartridge delivers superior sealing and prolonged moisture retention.
It adopts automatic ink pumping for print head cleaning and moisturizing.
With dual automatic & manual lift functions, it safeguards your print head against dry-out and clogging.

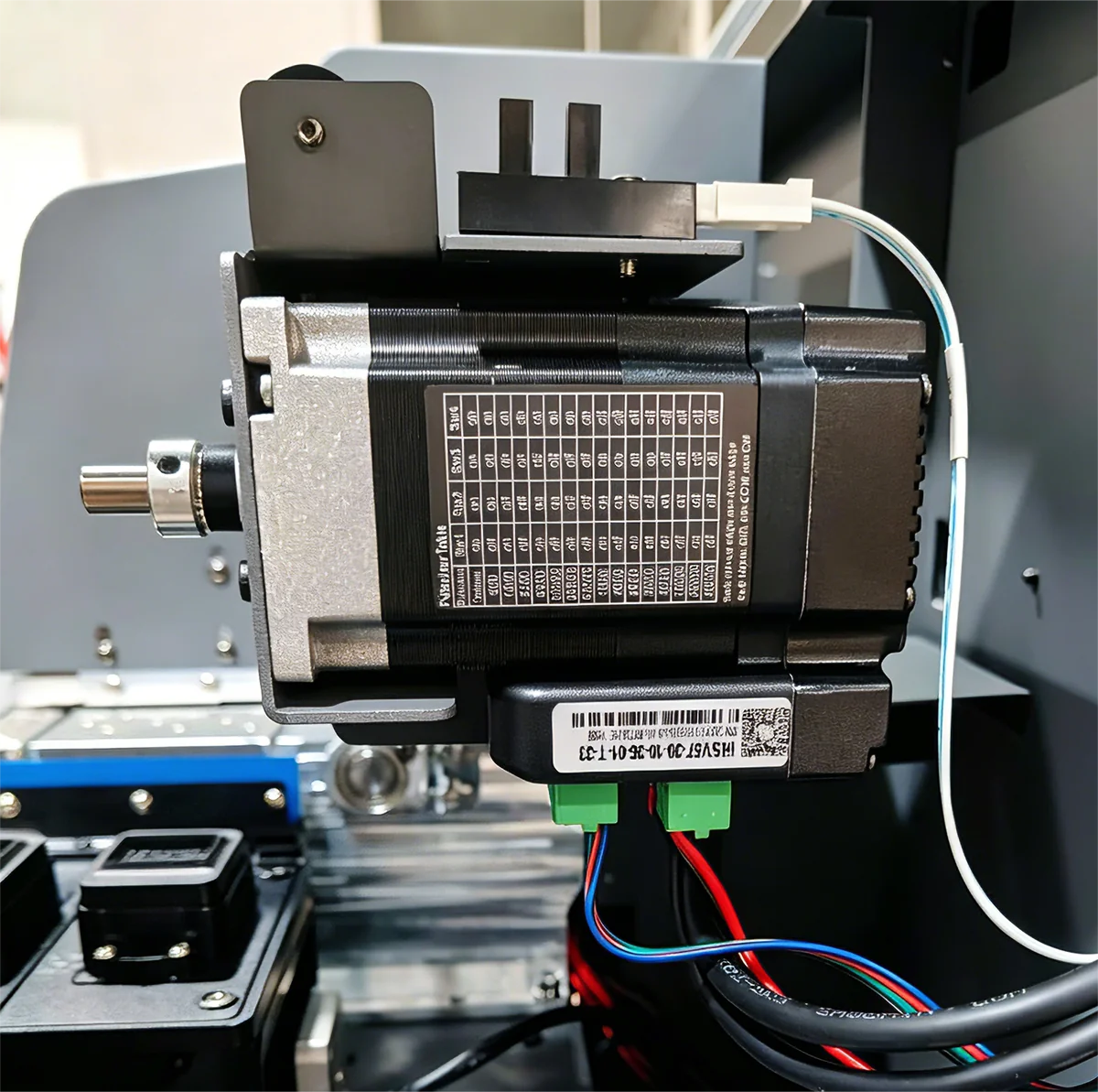

Equipped with dual-direction Leadshine integrated brushless
Equipped with dual-direction Leadshine integrated brushless servo motors and high-precision linear decoding drive, this unit features high accuracy, low vibration, tiny tolerance and outstanding stability. It ensures consistent power for print head and paper movement.

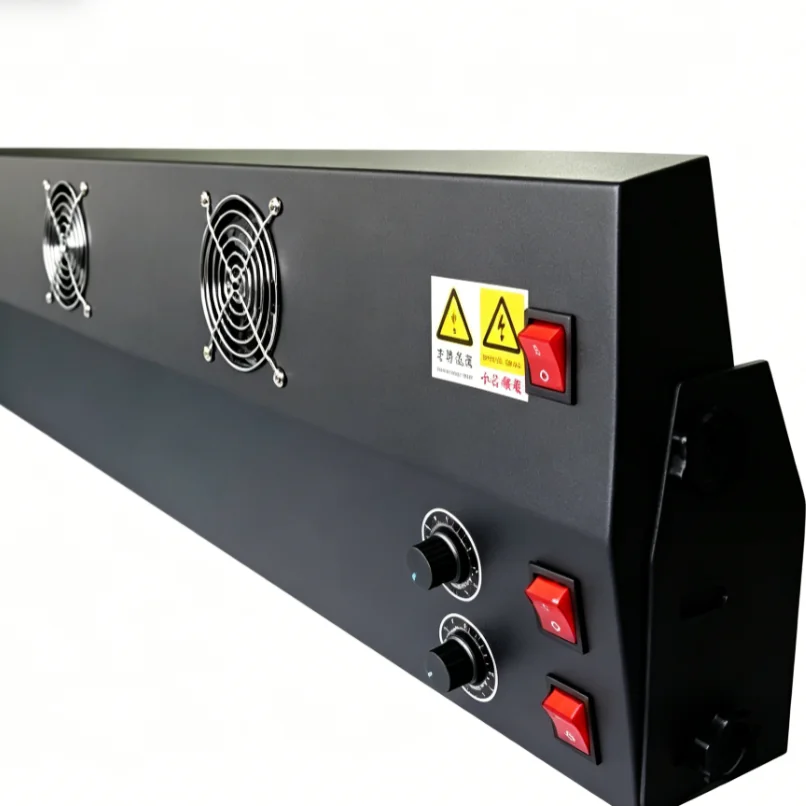

The high-speed intelligent drying system cures
The high-speed intelligent drying system cures printing materials rapidly. With adjustable temperature settings, it also helps save power consumption.
Fitted with anti-collision bumpers on both
Fitted with anti-collision bumpers on both sides of the carriage bracket. It shuts down instantly when blocked by paper, abnormal air flow or debris, effectively safeguarding the print head.

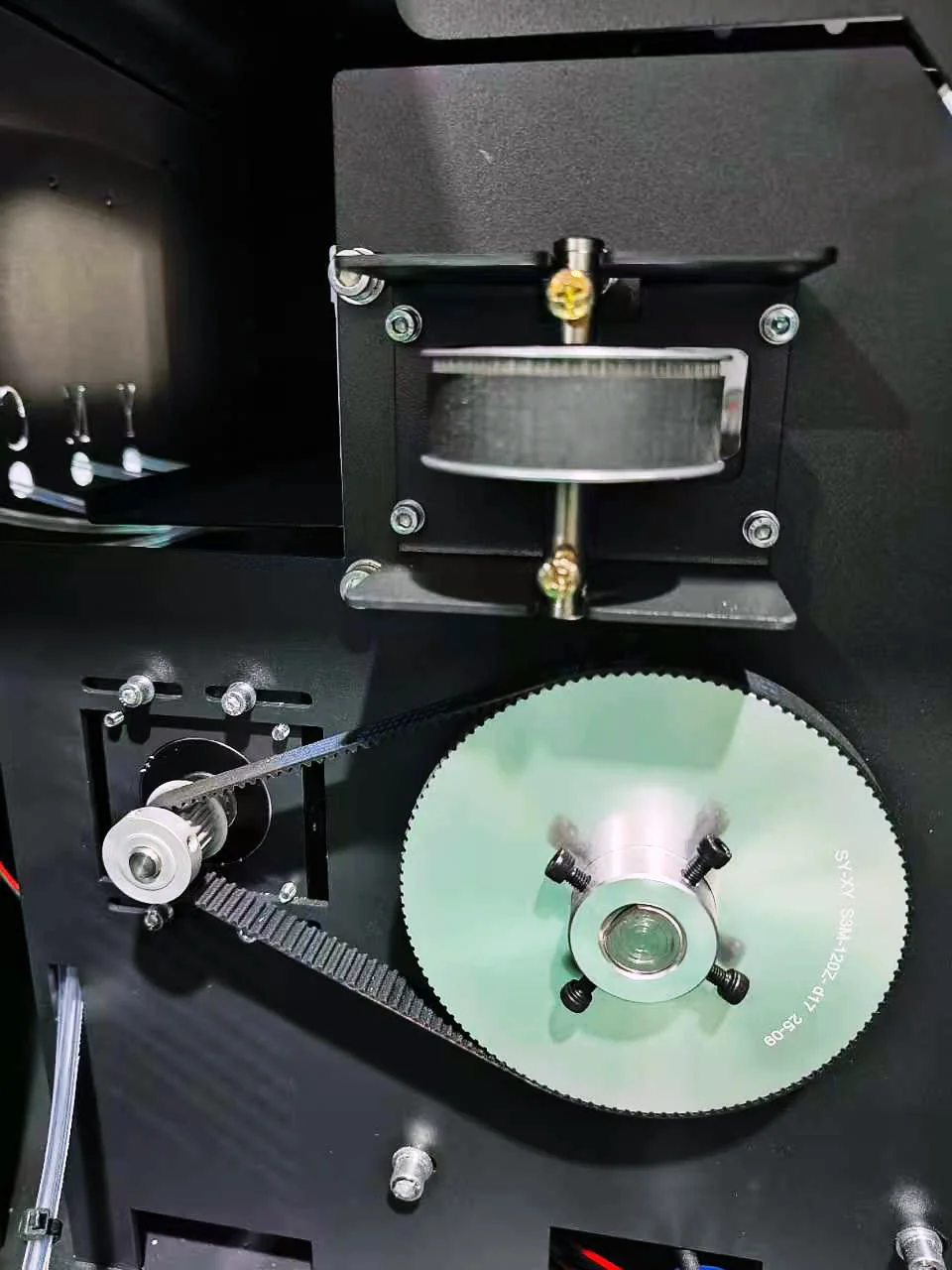

Dual-motor system manages PET film and
Dual-motor system manages PET film and paper reeling. Accurate tension control and speed sync keep the media running smoothly.

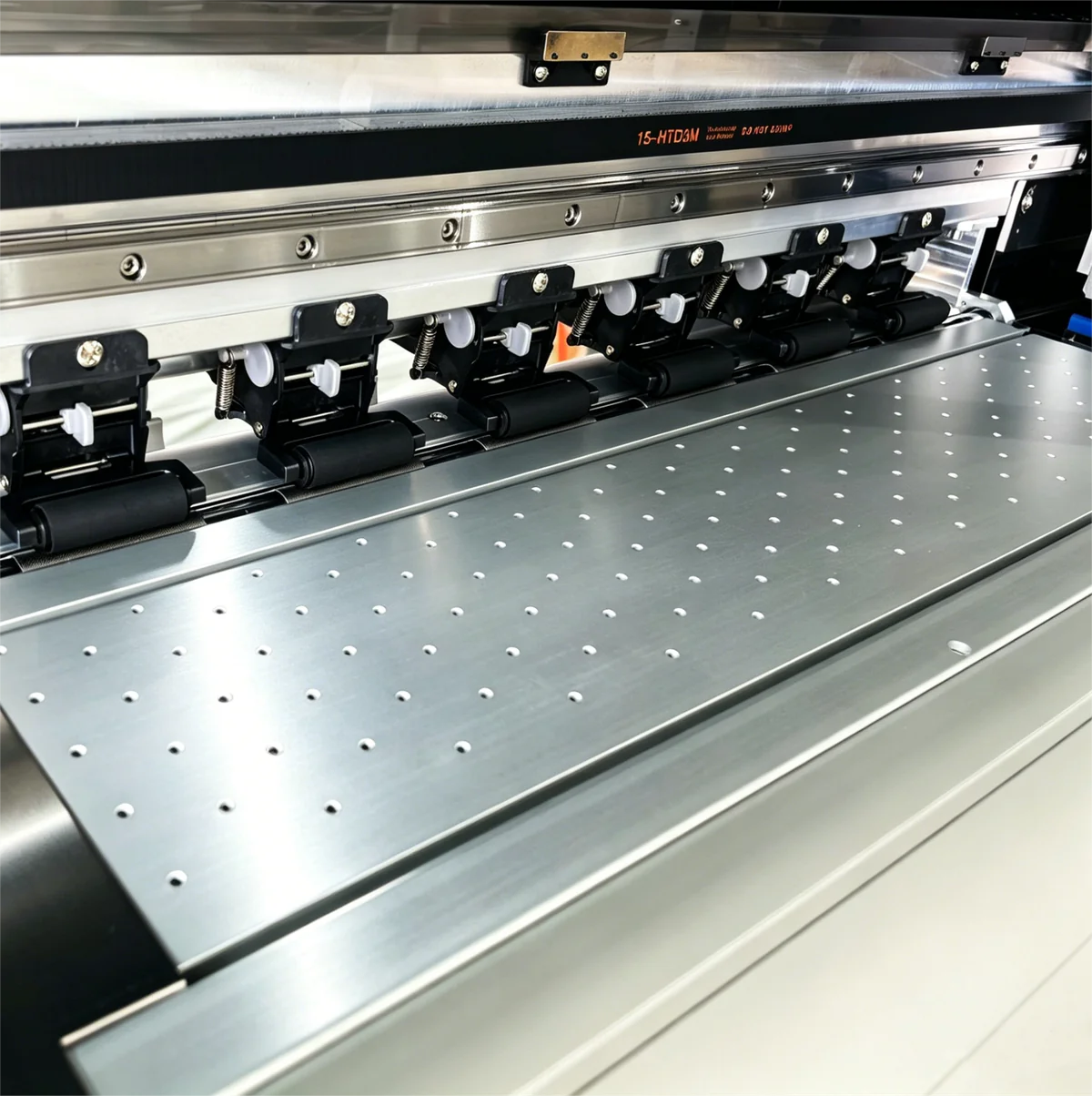

Built-in 2mm suction holes and powerful
Built-in 2mm suction holes and powerful fan ensure exceptionally stable paper movement. The imported adjustable press wheels reduce static and ink splashing. They fit various media, stop paper shifting, and maintain consistent printing performance.

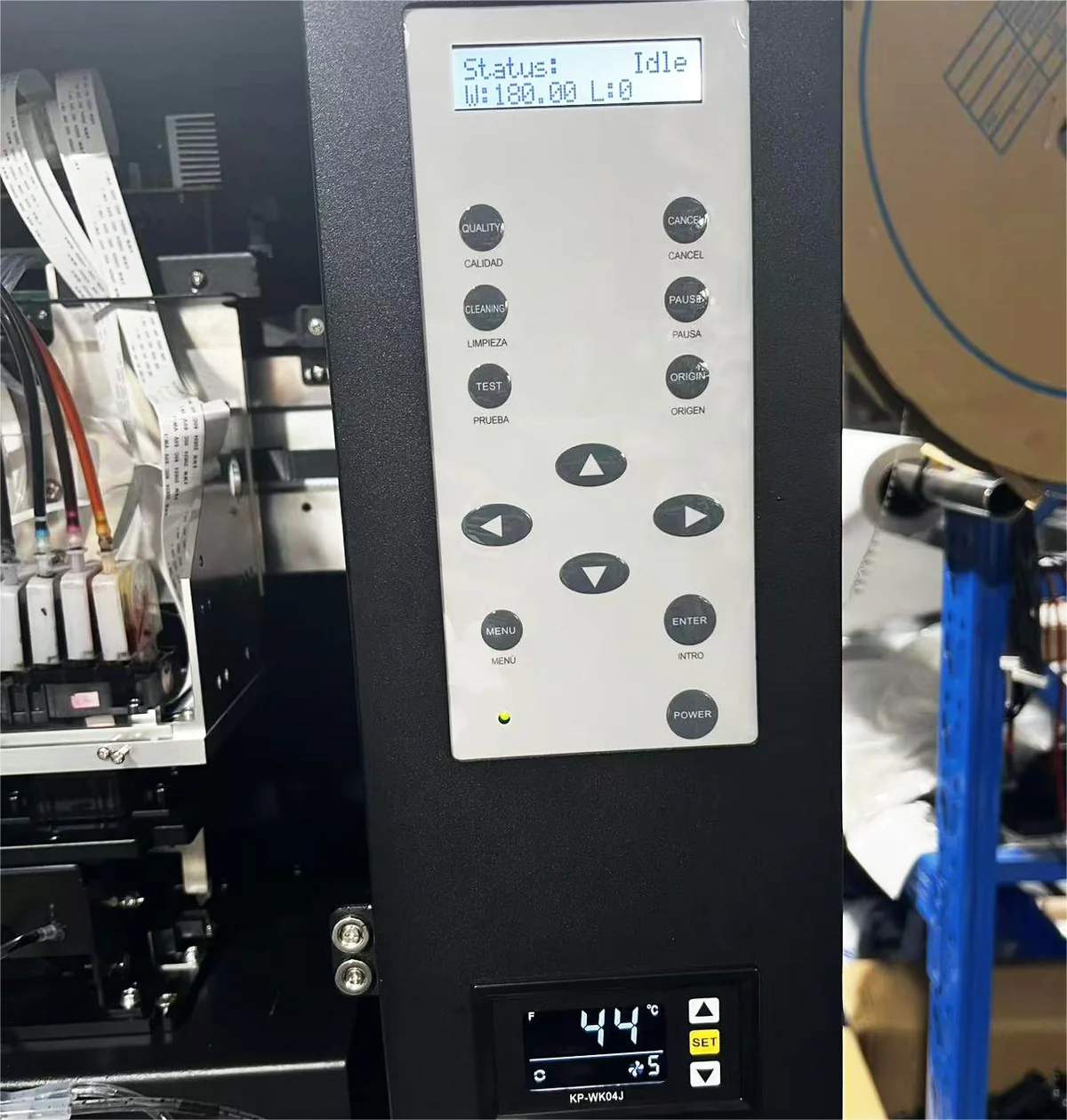

Featuring an advanced smart control panel
Featuring an advanced smart control panel for one-touch operation of paper handling and print head maintenance. Built-in smart sensors track temperature and humidity round the clock, keeping the printer running reliably at all times.

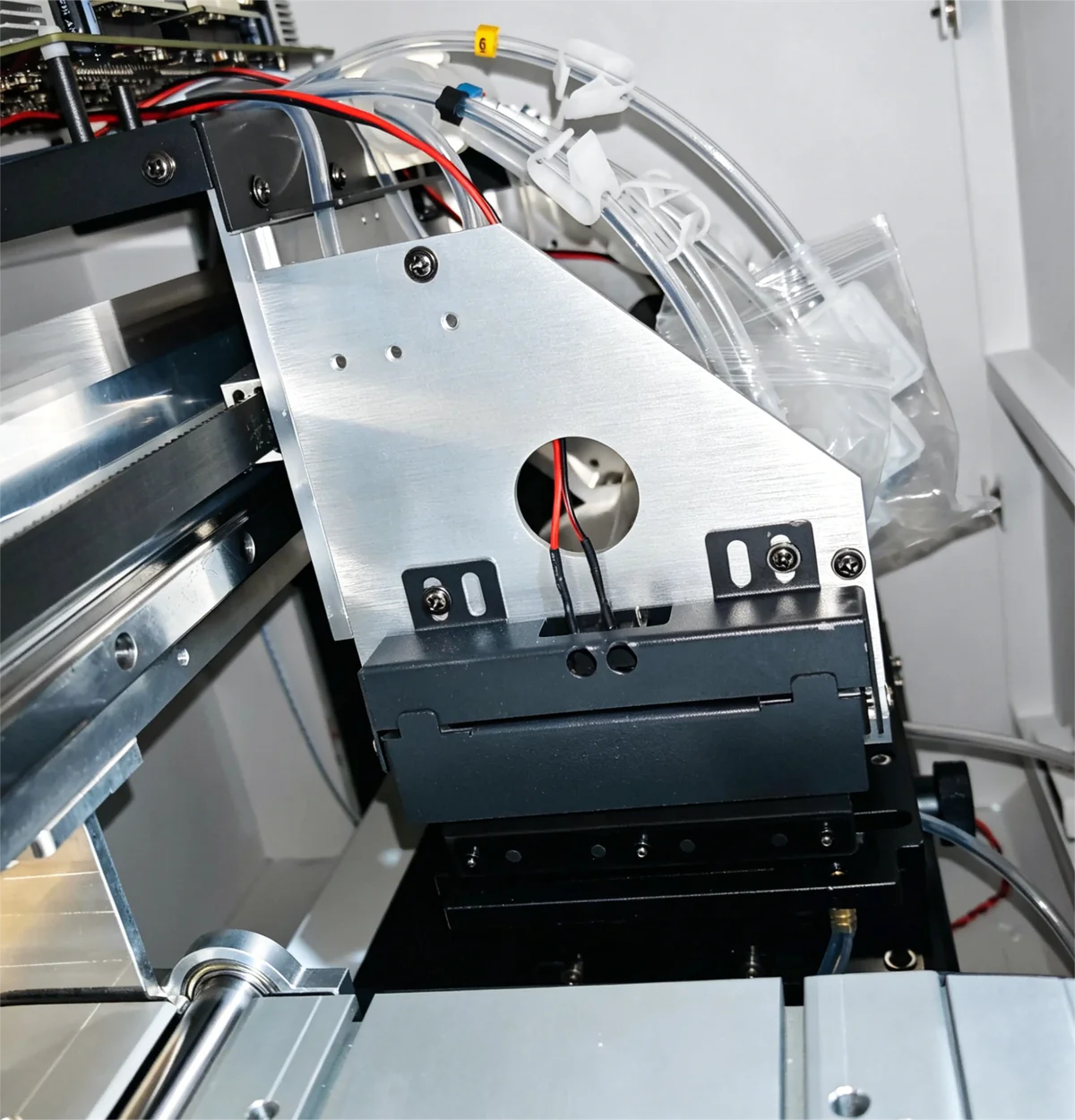

This printer adopts Honson mainboard and
This printer adopts Honson mainboard and Mean Well power supply. These high-quality components deliver outstanding print precision and reliable long-term operation.
How to Choose Your Sublimation Printer
Compare our A1 Sublimation printer with other models in the FuJia lineup.
| Feature | SUB A1 2-Head | SUB A3 1-Head |
|---|---|---|
| Print Head | 2x Epson I3200 | 1x XP600 |
| Print Width | 650mm | 330mm |
| Max Speed | 40 sqm/hr | 15 sqm/hr |
| Best For | Mid-volume textile | Entry-level |
Sublimation Printing Process
1. Manuscript layout
Image color correction, output of a mirror image specifically for heat transfer printing
2. Digital printing
Sublimation inkjet printing onto transfer paper
3. Fabric preparation
Flattening, cutting, and positioning of synthetic fiber fabrics
4. High-temperature heat transfer
Attaching the transfer paper to the fabric, applying heat and pressure using a hot press
5. Finished product
Cooling and peeling off the paper, allowing the ink to penetrate the fabric and set the shape.
Applications
Applications include: sportswear, banners and advertising, bag fabrics, ceramic mugs, glass cups, metal panels, and other high-temperature resistant materials.
What's in the Box
Compatible Consumables
Use FuJia-certified consumables. Browse all Sublimation consumables.
| Consumable | Specification | Replacement Cycle |
|---|---|---|
| Sublimation Ink | 1,000ml bottle | As consumed |
| Heat Transfer Paper | Roll | As consumed |
OEM & ODM Customization
Custom Branding
Logo printing on machine body, control panel, packaging, and user manuals.
Hardware Customization
Adjustable print width, printhead configuration, color options, voltage specs.
Software Customization
Pre-installed RIP software, custom UI language packs, operation manuals.
Packaging Design
Custom-branded wooden cases, foam inserts, and accessory packaging.
After-Sales Service
Global Shipping & Fast Delivery
- Export to 60+ countries worldwide
- Wooden case packaging
- Sea, air, rail & express
- EXW / FOB / CIF / CFR
- Fast lead time
- Full logistics tracking
Technical Support
- Dedicated representative
- 7×24 online support
- Spare parts inventory
- Firmware upgrades
- Free on-site training
- OEM/ODM project support
Warranty Terms
Main machine & mainboard covered.
Consumables excluded: printheads, dampers, cables, ink caps.
About FuJia
DTF, UV, DTG, ECO Solvent, Sublimation.
Sea, air, rail and express shipping.
Standard models stocked year-round.
Free on-site training at Guangzhou factory.
Factory Entrance
Headquarters

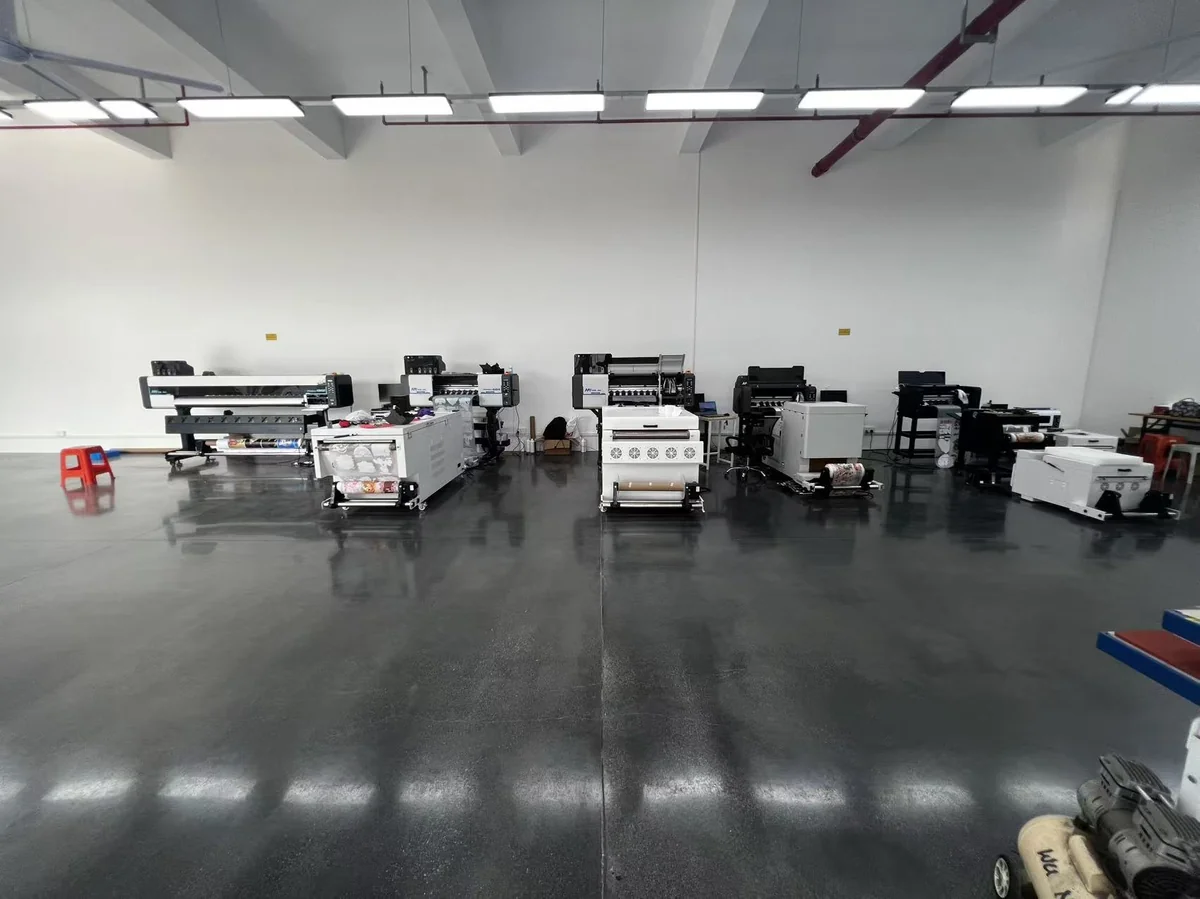

Showroom
Our TeamQuality Assurance & Factory Tour
Every FuJia printer undergoes rigorous testing before shipment.

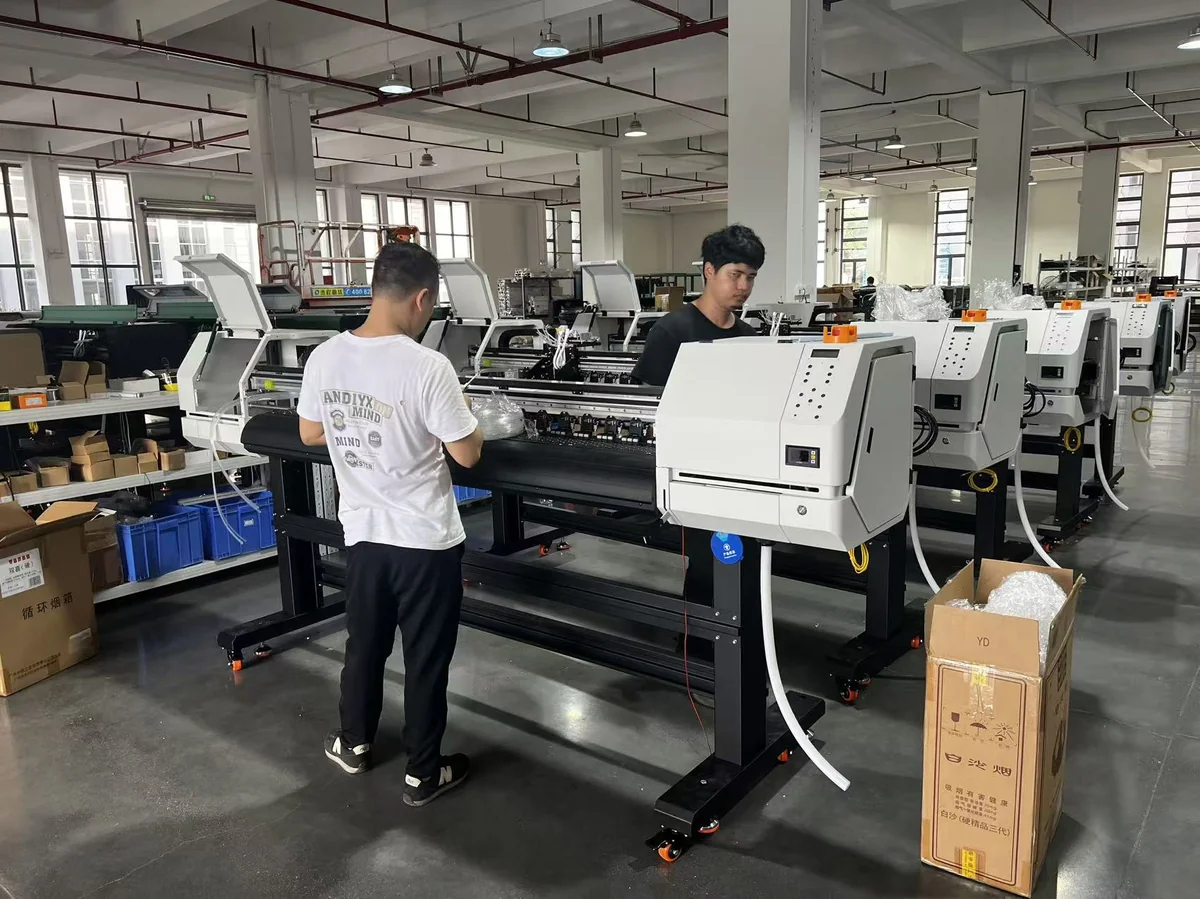

Assembly

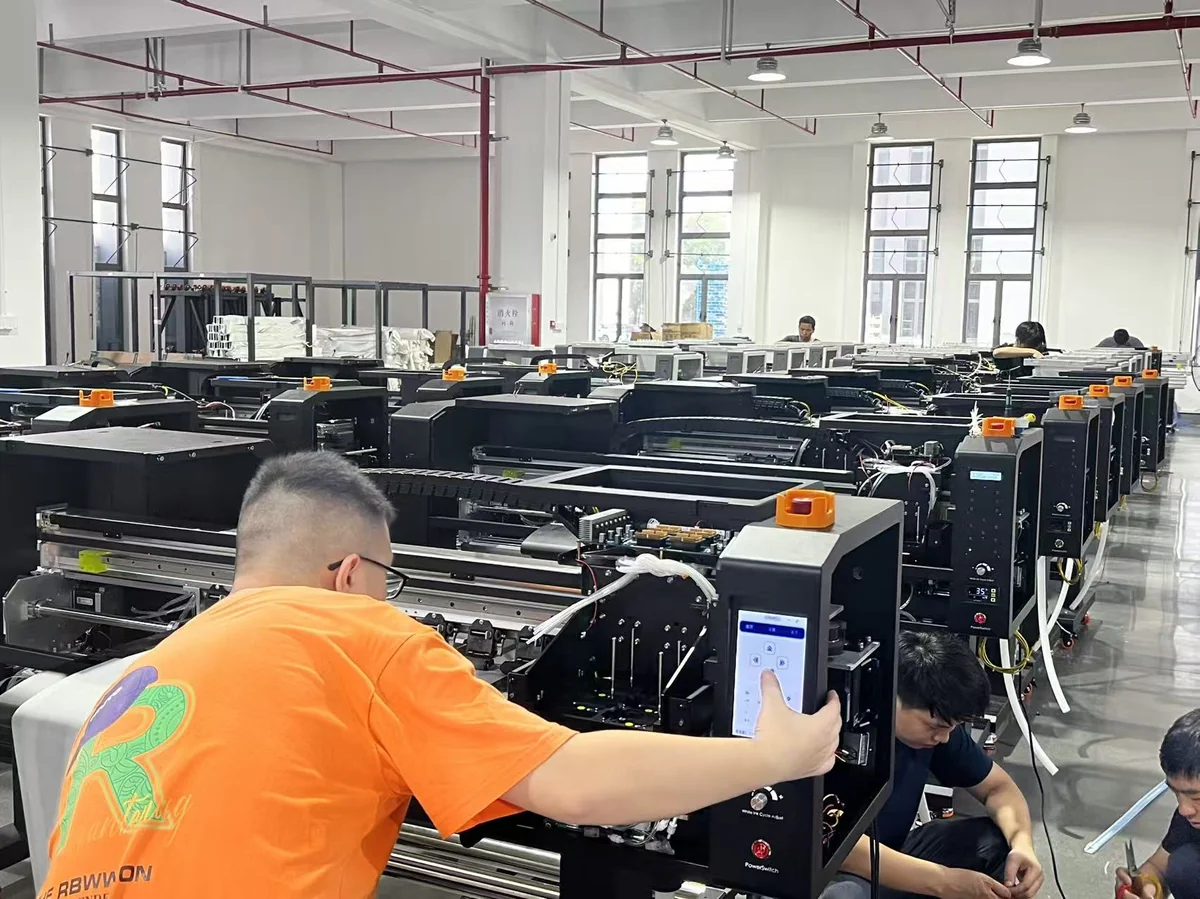

QC
Testing
Pre-Shipment

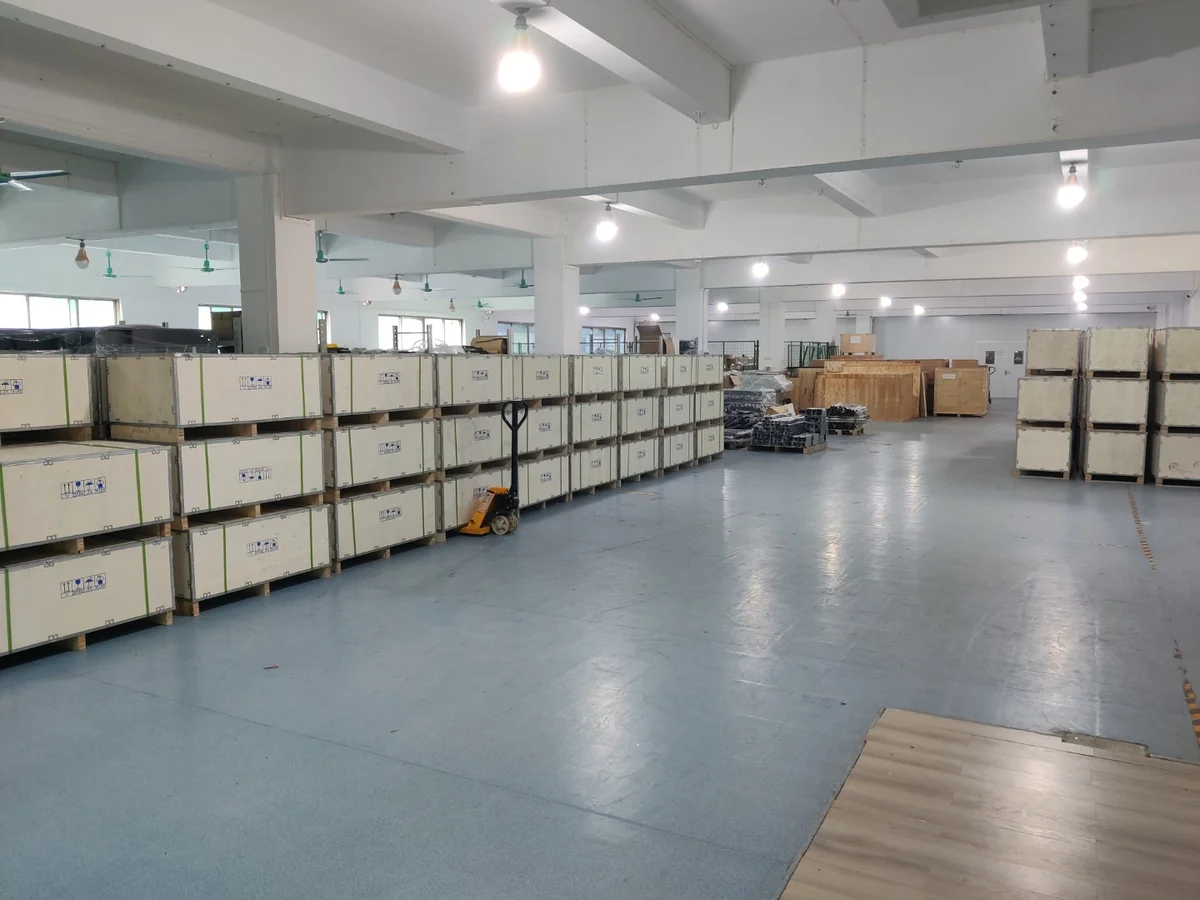

Warehouse
PackagingCertifications & Compliance
FuJia products meet international quality and safety standards.
Comply with EU standards.
Certified quality management.
Verified supplier.
Independent verification.
Learn More
Frequently Asked Questions
What are the main advantages of the A1-2Head Sublimation Printer?
Lowers entry barrier for sublimation printing. Achieve textile sublimation with minimum procurement cost. Perfect for small-batch in-house garment production.
What printhead does it use?
Epson i3200-A1 printheads — fast speed and stable performance for commercial garment printing.
What businesses is it suitable for?
Small garment printing factories, startups, and large garment enterprises handling small custom orders.
What fabrics and inks are compatible?
Special sublimation ink. Works with spandex, polyester and other fabrics. Light and dark fabrics with pre-treatment.
How about maintenance and support?
Stable operation, low maintenance. Efficient ink circulation system. Remote support, maintenance guidance, full spare parts.
What is the delivery time?
3–10 working days after deposit. Stocked year-round.
What payment methods?
T/T, D/P, Western Union, Credit Card, Alibaba Trade Assurance.
How to get technical support?
7×24 online support. Send problem details, photos or videos for remote assistance.
What if parts are damaged?
Full spare parts supplied. Return damaged for replacement. Spare parts package recommended.
Can technicians attend training?
Yes, free professional training at our Guangzhou factory.
Do you supply consumables?
Yes, high-quality consumables and spare parts for stable operation.
