Advantages
Premium Transmission System, High Speed & Precision Equipped with Honson mainboard, Leadshine servo motor and silent THK guide rail. The high-end transmission system ensures stable and low-noise operation. It delivers accurate positioning and clear pattern outlines even during high-speed printing.
Automatic White Ink Circulation, No Nozzle Clogging Standard automatic power-off white ink circulation system prevents ink precipitation and solidification, fundamentally avoiding nozzle blockage. It supports long-term uninterrupted mass production, greatly improving production continuity and efficiency.
Dual-section Constant Temperature Control, Wide Compatibility Adopts front and rear dual-section heating with real-time temperature and humidity monitoring. Featuring stable temperature control, it is compatible with various DTF consumables. The printed patterns offer excellent transfer fastness and consistent finished quality.
Multiple Intelligent Protection, Lower Production Loss Built with high-precision magnetic suction grating and automatic ink shortage alarm for accurate distance measurement and material shortage early warning. It effectively avoids empty printing and material waste, reducing consumable scrap rate and production costs.
Reinforced Stable Frame, Ultra-stable & Silent Operation The reinforced structural design reduces operating vibration effectively. It ensures silent and stable machine operation, further improving printing accuracy and maintaining delicate and uniform printing quality during long-term mass production.
Quick Specifications
Product Specifications
| Parameter | Value |
|---|---|

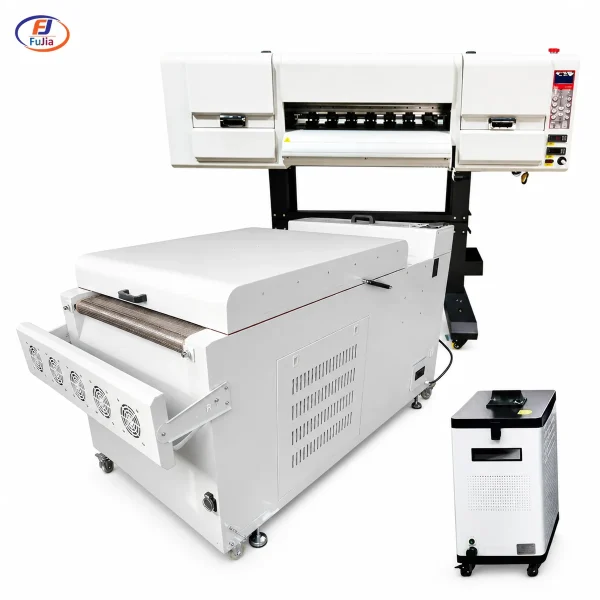

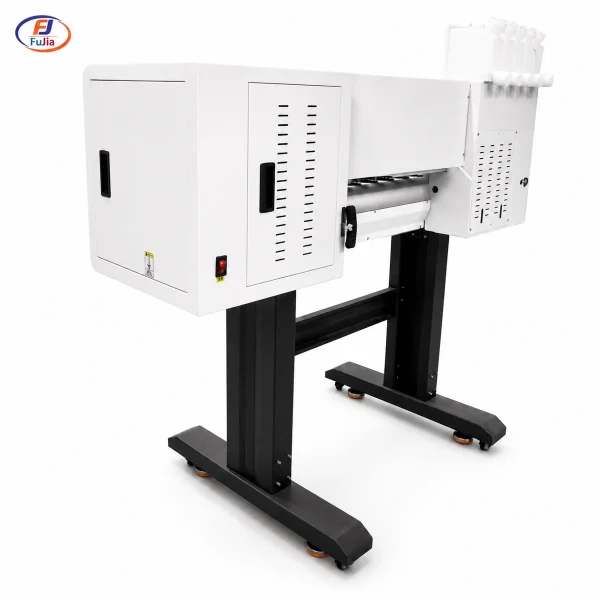

| Model | A1-4Head DTF Printer |
| Print System. Print Head | 4/5 Epson I3200 |
| Print System. Print Head Qty | 4/5 |
| Print System. Print Width | Up to 650mm (25.6 inch) |
| Print System. Print Speed (I3200A1) | 4Pass 720×1200dpi: 27 sqm/hr | 6Pass 720×1800dpi: 22 sqm/hr | 8Pass 720×2400dpi: 17 sqm/hr |
| Print System. Resolution | 720×720 dpi / 720×1080 dpi / 720×1440 dpi |
| Print System. Print Height | 2–10 mm |
| Ink System. Ink Type | DTF water-based ink (FuJia dedicated) |
| Ink System. Ink Colors | CMYK + White + LC + LM (4-color: CMYK+White / 6-color: CMYK+White+LC+LM / 8-color) |
| Ink System. Ink Cartridge Capacity | 1,000–1,500ml per color (CISS) |
| Ink System. Ink Supply Mode | Siphon + positive pressure ink cartridge supply |
| Ink System. Moisturizing | Automatic sealed moisturizing and cleaning |
| Media & Consumables. Printable Media | PET DTF Transfer Film |
| Media & Consumables. Compatible Fabrics | Cotton, polyester, sportswear, flags, various fabrics |
| Media & Consumables. Media Feeding | Auto Feed |
| Media & Consumables. Supported Image Formats | TIFF, JPG, EPS, PDF |
| Media & Consumables. Operating Temperature | 15℃–30℃ |
| Media & Consumables. Operating Humidity | 25%–50% |
| Heating System | Front & rear dual external heating; shaker with IR drying system |
| Connectivity. Interface | USB 3.0 |
| Connectivity. RIP Software | Maintop, Photoprint, RIIN, Flexi |
| Connectivity. PC Requirements | 64-bit Windows 10/11, NTFS file system, C drive 100GB+ free, WD500G HDD, ATI dedicated GPU 4GB+, Intel Quad-Core Gen5 / i7 processor, dual drive, Gigabit NIC |
| Body & Power. Power Supply | 110V/220V, 50Hz/60Hz (AC 110V ±10%, AC 220V ±10%) |
| Body & Power. Printer Power | 35W |
| Body & Power. Shaker Heating Power | 23,300W |
| Body & Power. Printer Weight | 155 kg (net) / 185 kg (gross) |
| Body & Power. Printer Dimensions | 165 × 75 × 60 cm |
| Body & Power. Printer Package Dimensions | 183 × 93 × 68 cm |
| Body & Power. Shaker Weight | 230 kg (net) / 280 kg (gross) |
| Body & Power. Shaker Dimensions | 179 × 100 × 120 cm |
| Body & Power. Shaker Package Dimensions | 184 × 105 × 135 cm |
| General. Packaging | Wooden case |
| General. Brand | FuJia |
| General. Printing Type | Roll-to-Roll, Full-color, Fully Automatic |
| General. OS Support | 64-bit Windows 10/11 |
| General. Heating System Type | Smart segmented embedded heating |
| General. Origin | Guangzhou, China |
| Machine Features 1 | Built-in printhead moisturizing function for long-term stable operation at no extra cost |
| Machine Features 2 | Precision lifting mechanism ensures stable printing process and consistent output |
| Machine Features 3 | Three professional printhead configurations (2-head, 4-head, 5-head) for flexible production capacity needs |
| Machine Features 4 | Dual heating strips on printhead base plate keep printheads at optimal temperature, prevent ink splashing, ensure even droplet deposition, and maintain DTF ink fluidity for improved print quality |
| Machine Features 5 | Intelligent electric lift + manual lift dual safety mechanism for emergency adjustments |
| Machine Features 6 | Optional smart nozzle compensation system: detects and fixes issues, reduces manual intervention, real-time nozzle status monitoring, prevents clogging |
| Printhead Parameters. Printhead Qty | 4/5 I3200 printheads |
| Printhead Parameters. Printhead Height | 2–3 mm |
| Printhead Parameters. Printhead Functions | Anti-clog flash spray, automatic moisturizing |
| Printhead Parameters. Cleaning System | Fully automatic cleaning |
| Working Environment. Standard Temperature | 18℃–25℃ |
| Working Environment. Standard Humidity | 35%–65% RH |
| Working Environment. Extended Temperature | 40℃–100℃ |
| Working Environment. Extended Humidity | 20%–80% RH |
| Interface & Software. Print Interface | USB 3.0, Gigabit network port |
| Interface & Software. Supported OS | 64-bit Windows XP, Win7, Win10 |
| Interface & Software. Operation Language | Chinese, English |
| Interface & Software. Control System | Printer Manager |
| Interface & Software. Color Management Software | Maintop, Photoprint, Flexi, RIIN |
| Power Parameters. Rated Voltage | 110V/220V, 50Hz/60Hz |
| Power Parameters. Voltage Tolerance | AC 110V ±10%, AC 220V ±10% |
| Noise Level | <32 dB (min), ≤65 dB (max) |
| Structural Advantages 1 | Widened base |
| Structural Advantages 2 | Equipped with adjustable variable-frequency motor |
| Structural Advantages 3 | Ultra-wide reinforced beam with dual THK silent guide rails for stable operation |
| Warranty. Main Machine | 12 months |
| Warranty. Mainboard | 12 months |
| Warranty. Consumables Excluded | Printheads, dampers, cables, ink caps are consumables not covered by warranty |
| Warranty. Special Notice | Ink system, printheads, ink caps of F1/F2/F4 series not covered |
| After-Sales. Service 1 | Free standard spare parts provided |
| After-Sales. Service 2 | Professional engineering team online technical support |
| After-Sales. Service 3 | 18+ years industry experience |
| After-Sales. Service 4 | Pre-sales team provides quotes for DTG, UV DTF, eco-solvent, sublimation, UV flatbed and DTF printers |
| After-Sales. Service 5 | Free on-site practical training at Guangzhou factory for customer technicians |
| After-Sales. Delivery & Payment 1 | Delivery: 3–10 working days after deposit; regular models stocked year-round |
| After-Sales. Delivery & Payment 2 | Payment: T/T, D/P, Western Union, credit card, Alibaba Trade Assurance |
| After-Sales. Delivery & Payment 3 | Spare Parts: Full range of original parts supplied; return damaged parts for new replacements; spare parts kit recommended |
Product Details
Engineered with premium components for industrial-grade reliability.

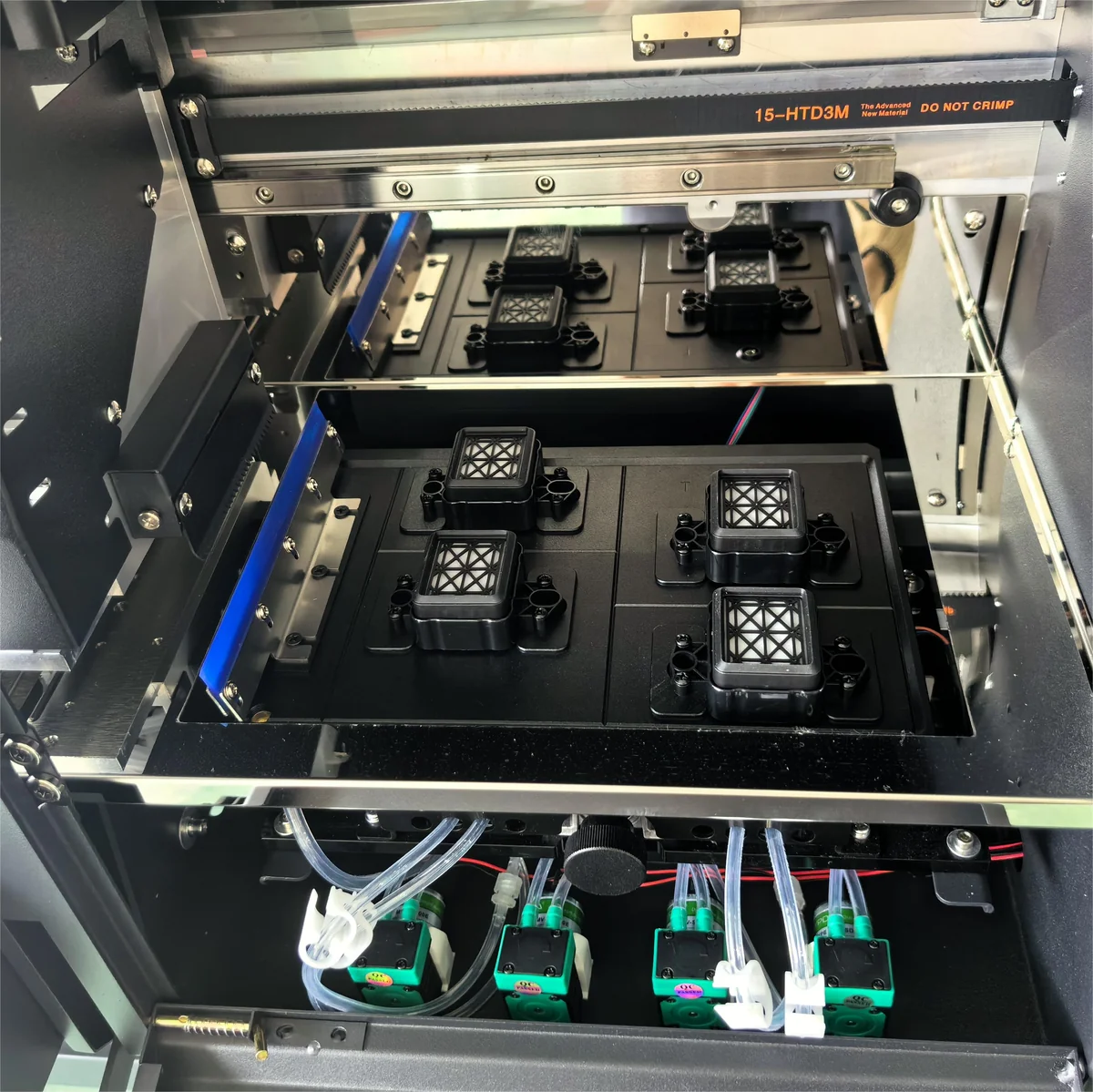

Our smart moisturizing ink cartridge delivers
Our smart moisturizing ink cartridge delivers superior sealing and prolonged moisture retention.
It adopts automatic ink pumping for print head cleaning and moisturizing.
With dual automatic & manual lift functions, it safeguards your print head against dry-out and clogging.

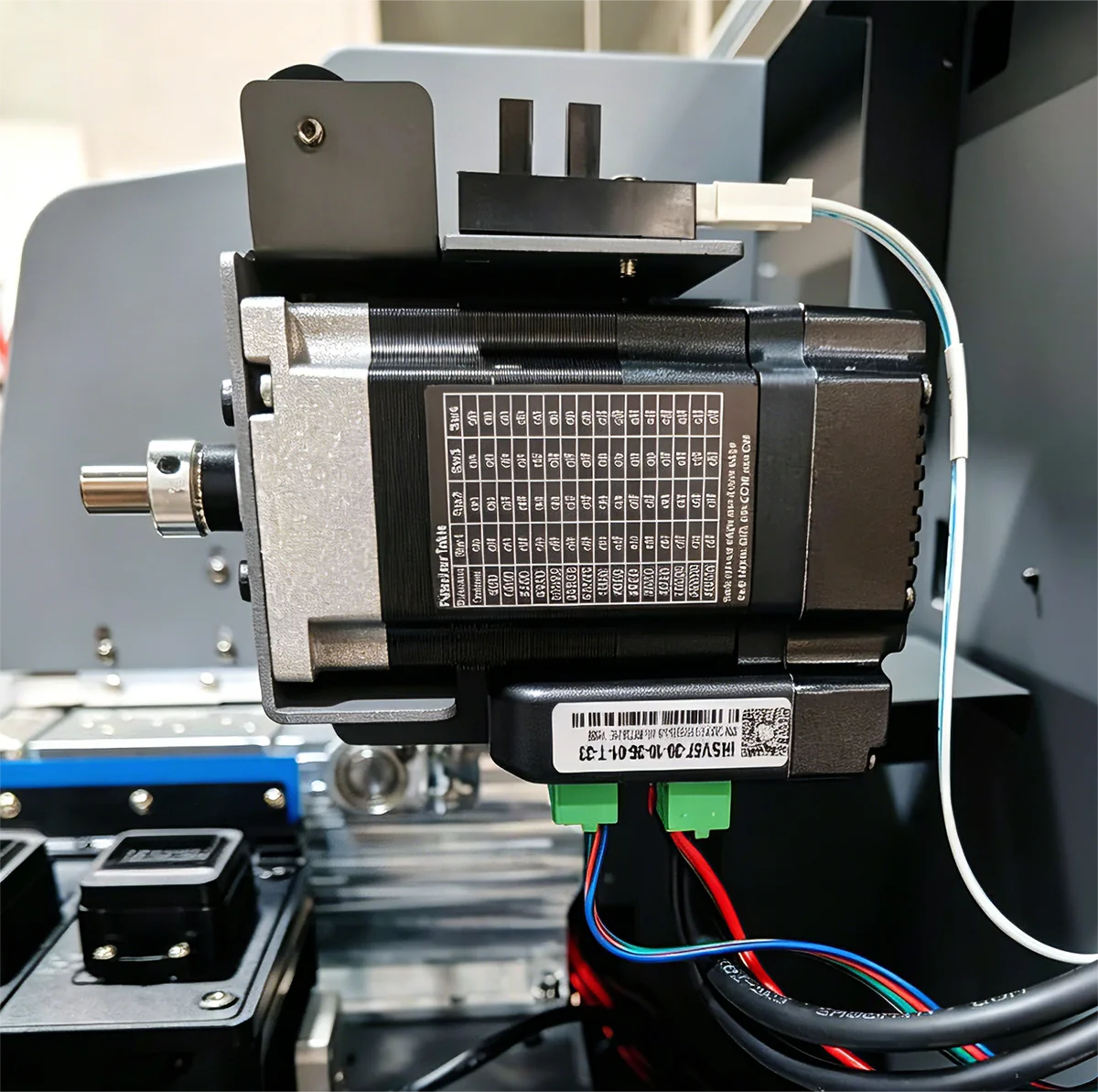

Equipped with dual-direction Leadshine integrated brushless
Equipped with dual-direction Leadshine integrated brushless servo motors and high-precision linear decoding drive, this unit features high accuracy, low vibration, tiny tolerance and outstanding stability. It ensures consistent power for print head and paper movement.
A premium ink pump comes with
A premium ink pump comes with every ink pad. It drains waste ink in time to avoid clogging, and is also used for print head cleaning.

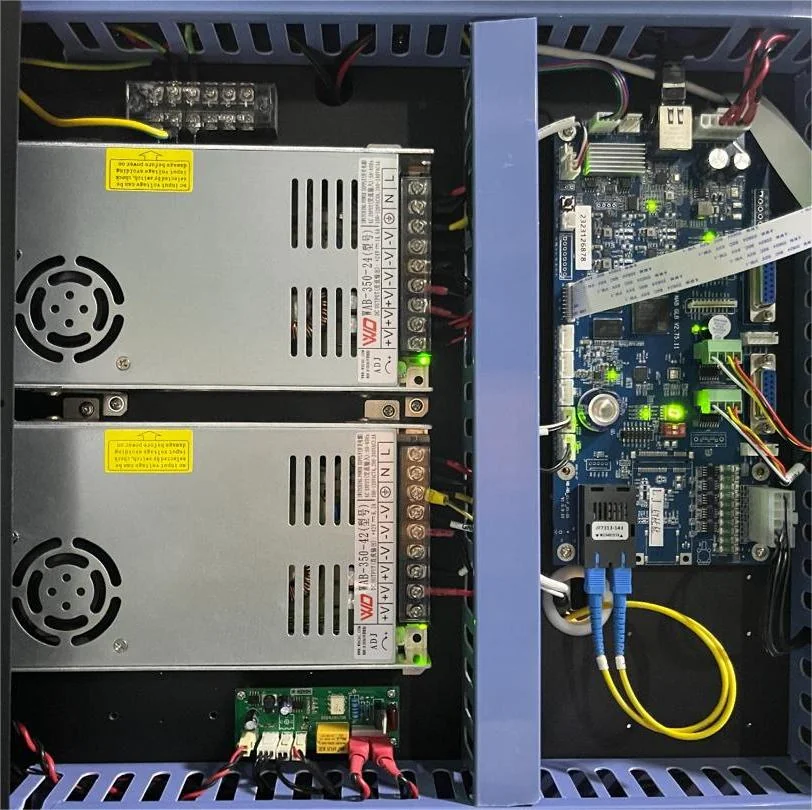

Fitted with Honson control board and
Fitted with Honson control board and Mean Well power unit for superior accuracy and stable performance.

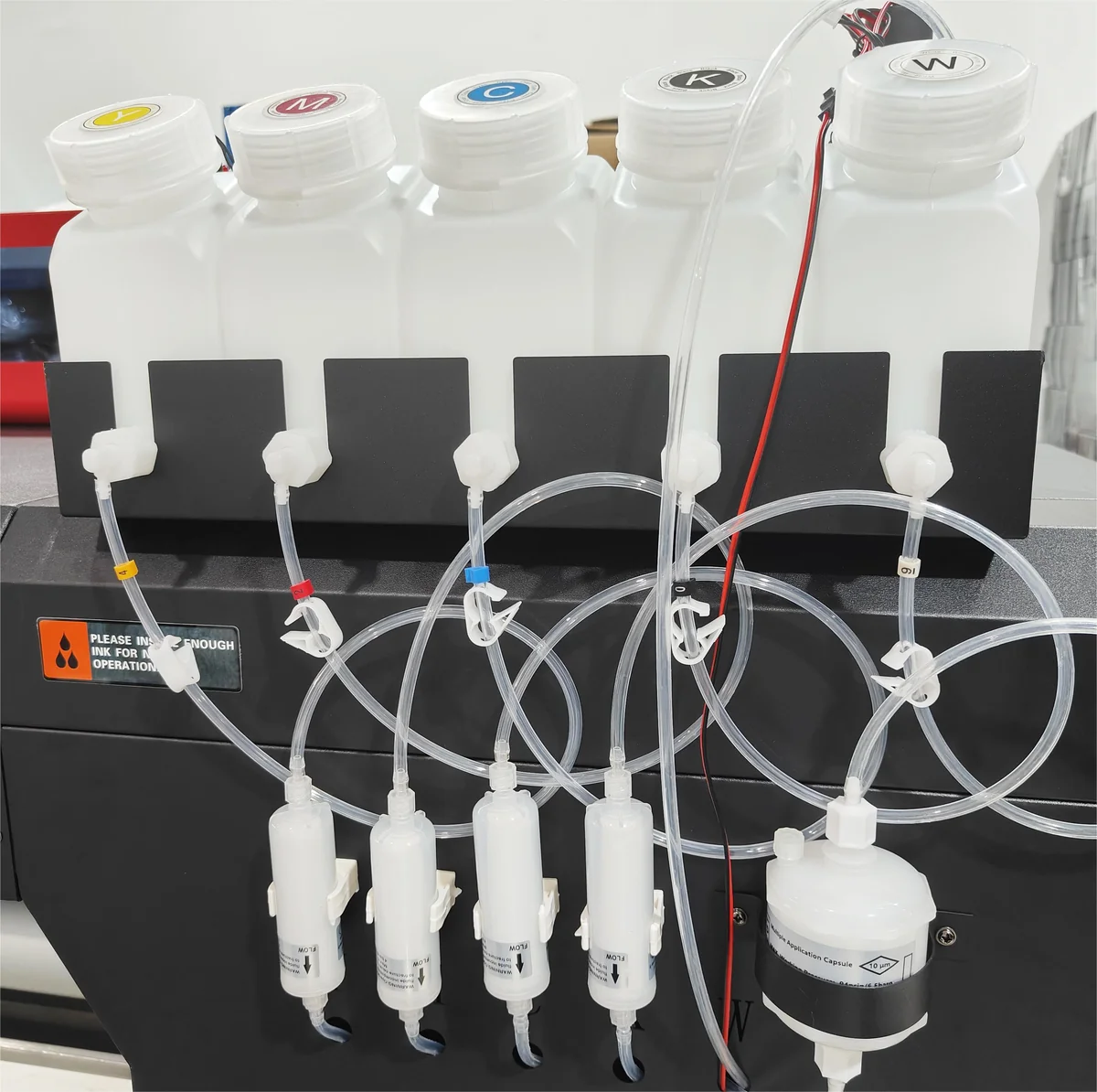

Featuring a high-end white ink circulator
Featuring a high-end white ink circulator that operates continuously during power outages. With built-in agitation and filtration, it delivers consistent DTF ink flow, avoids head clogging and guarantees reliable performance round the clock.

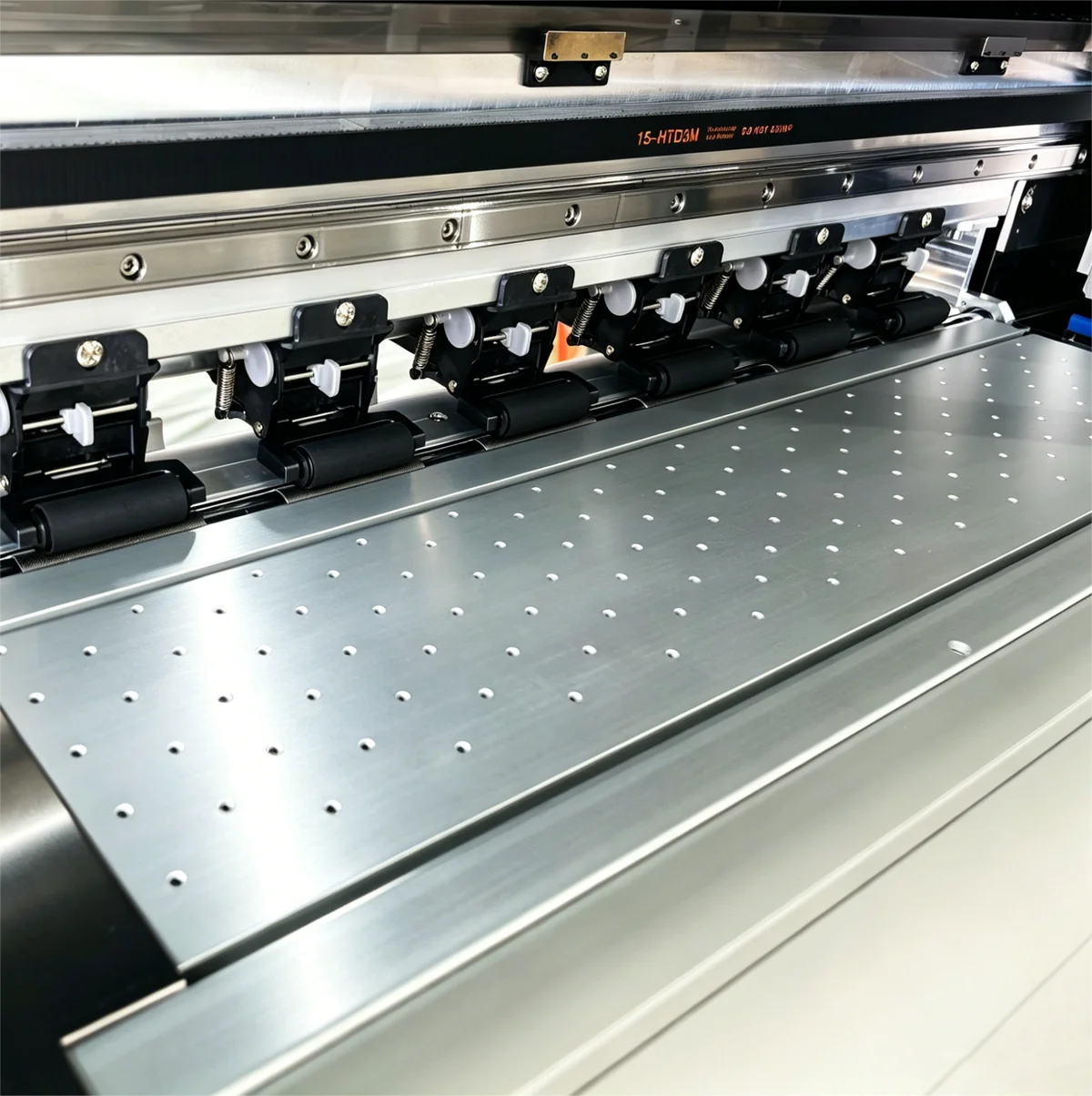

Built-in 2mm suction holes and powerful
Built-in 2mm suction holes and powerful fan ensure exceptionally stable paper movement. The imported adjustable press wheels reduce static and ink splashing. They fit various media, stop paper shifting, and maintain consistent printing performance.

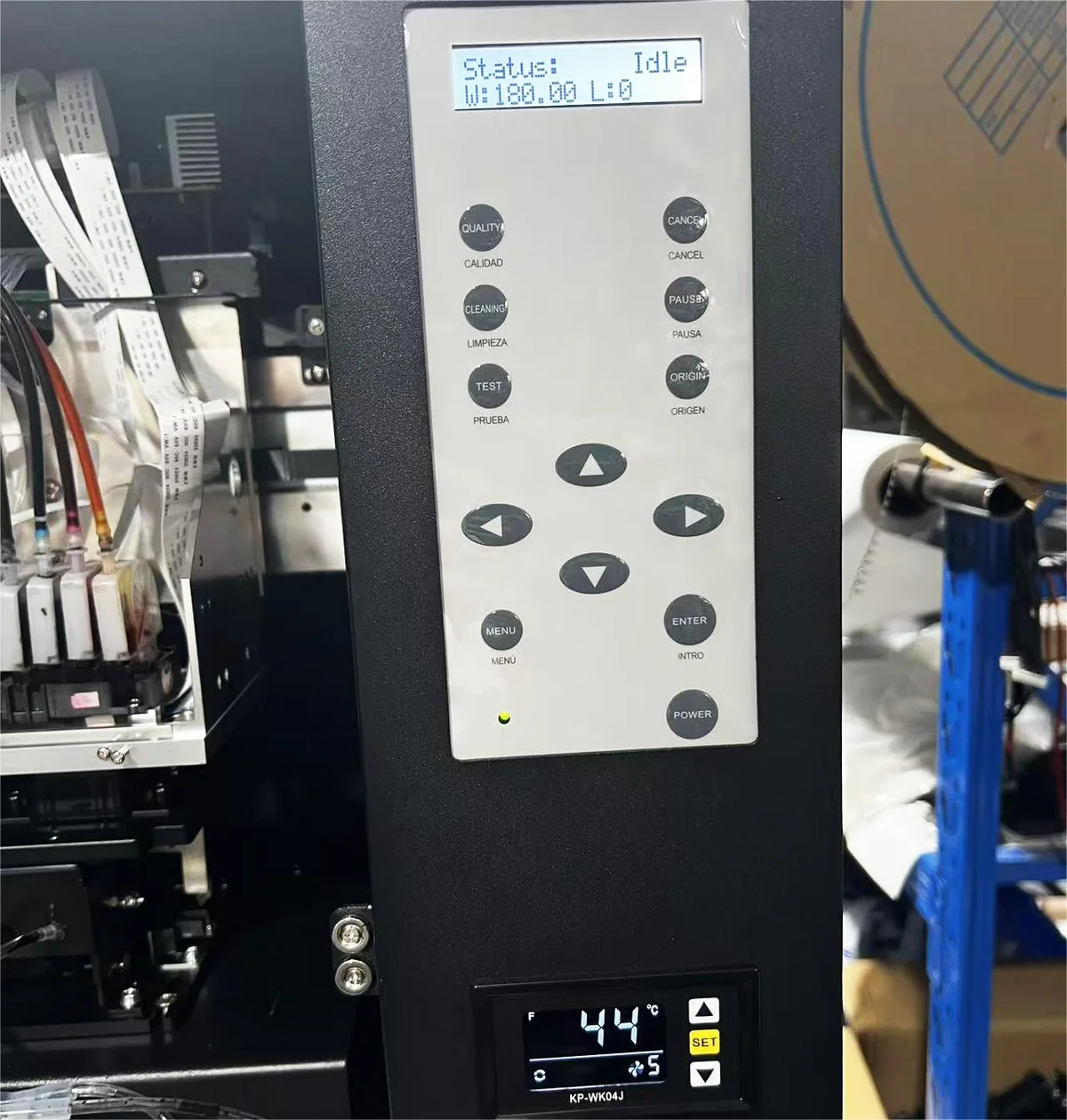

Featuring an advanced smart control panel
Featuring an advanced smart control panel for one-touch operation of paper handling and print head maintenance. Built-in smart sensors track temperature and humidity round the clock, keeping the printer running reliably at all times.

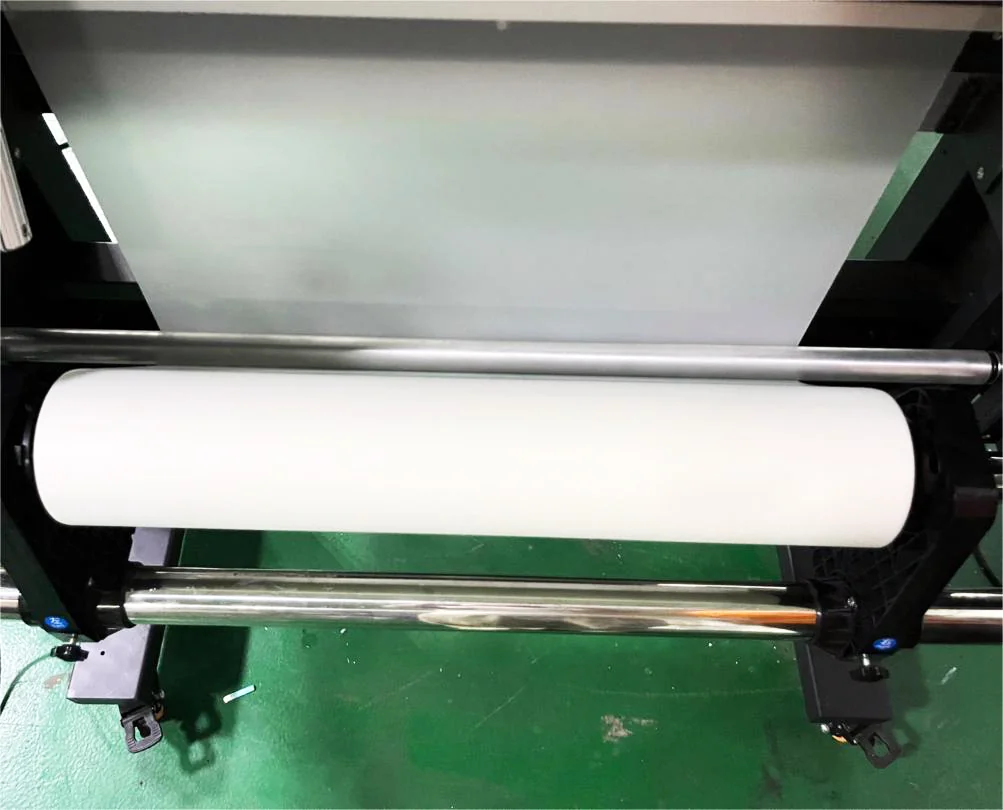

Equipped with a paper tension balance
Equipped with a paper tension balance bar for consistent feeding. It eliminates printing errors resulting from irregular paper travel.
How to Choose Your DTF Printer
Compare our DTF Printer with other models in the FuJia lineup.
| Feature | A1 4-Head | A1 4-Head | A1 2-Head | A2 2-Head |
|---|---|---|---|---|
| Print Head | 4/5x Epson I3200 | 4/5x I3200 | 2x I3200 | 2x I3200 |
| Print Width | 650mm | 650mm | 650mm | 450mm |
| Max Speed | 27 sqm/hr | 27 sqm/hr | 15 sqm/hr | 15 sqm/hr |
| Ink Capacity | 1,500ml | 1,500ml | 1,000ml | 500ml |
| White Ink Circulation | Auto | Auto | Auto | Manual |
| Best For | High-volume | High-volume | Mid-volume | Small studios |
DTF Printing Process
Preliminary Preparation & Document Processing
DTF Printer Parameter Settings
Add DTF Ink, DTF Film, and DTF Hot Melt Powder
Powder Dispensing & Curing
Heat Transfer Printing & Pressing
Film Removal & Quality Inspection
Applications
Applications include: T-shirts, sweatshirts, canvas bags, sportswear, swimwear, jeans, leather goods, tote bags, sweaters, scarves, etc.
What’s in the Box
Compatible Consumables
Use FuJia-certified consumables. Browse all DTF consumables.
| Consumable | Specification | Replacement Cycle |
|---|---|---|
| DTF Inks | Water-based, 1,000ml bottle | As consumed |
| DTF Film | DTF PET Film roll | As consumed |
| DTF Hot Melt Adhesive Powder | Fine grade, 1kg bag | As consumed |
OEM & ODM Customization
Custom Branding
Logo printing on machine body, control panel, packaging, and user manuals.
Hardware Customization
Adjustable print width, printhead configuration, color options, voltage specs.
Software Customization
Pre-installed RIP software, custom UI language packs, operation manuals.
Packaging Design
Custom-branded wooden cases, foam inserts, and accessory packaging.
After-Sales Service
Global Shipping & Fast Delivery
- Export to 60+ countries worldwide
- Wooden case packaging
- Sea, air, rail & express
- EXW / FOB / CIF / CFR
- Fast lead time
- Full logistics tracking
Technical Support
- Dedicated representative
- 7×24 online support
- Spare parts inventory
- Firmware upgrades
- Free on-site training
- OEM/ODM project support
Warranty Terms
Main machine & mainboard covered.
Consumables excluded: printheads, dampers, cables, ink caps.
About FuJia
18+ YearsIndustry Experience
DTF, UV, DTG, ECO Solvent, Sublimation.
60+ CountriesGlobal Export
Sea, air, rail and express shipping.
50+ Sets/MonthProduction Capacity
Standard models stocked year-round.
7×24 SupportEngineering Team
Free on-site training at Guangzhou factory.
Factory Entrance
Headquarters
Showroom
Our TeamQuality Assurance & Factory Tour
Every FuJia printer undergoes rigorous testing before shipment.

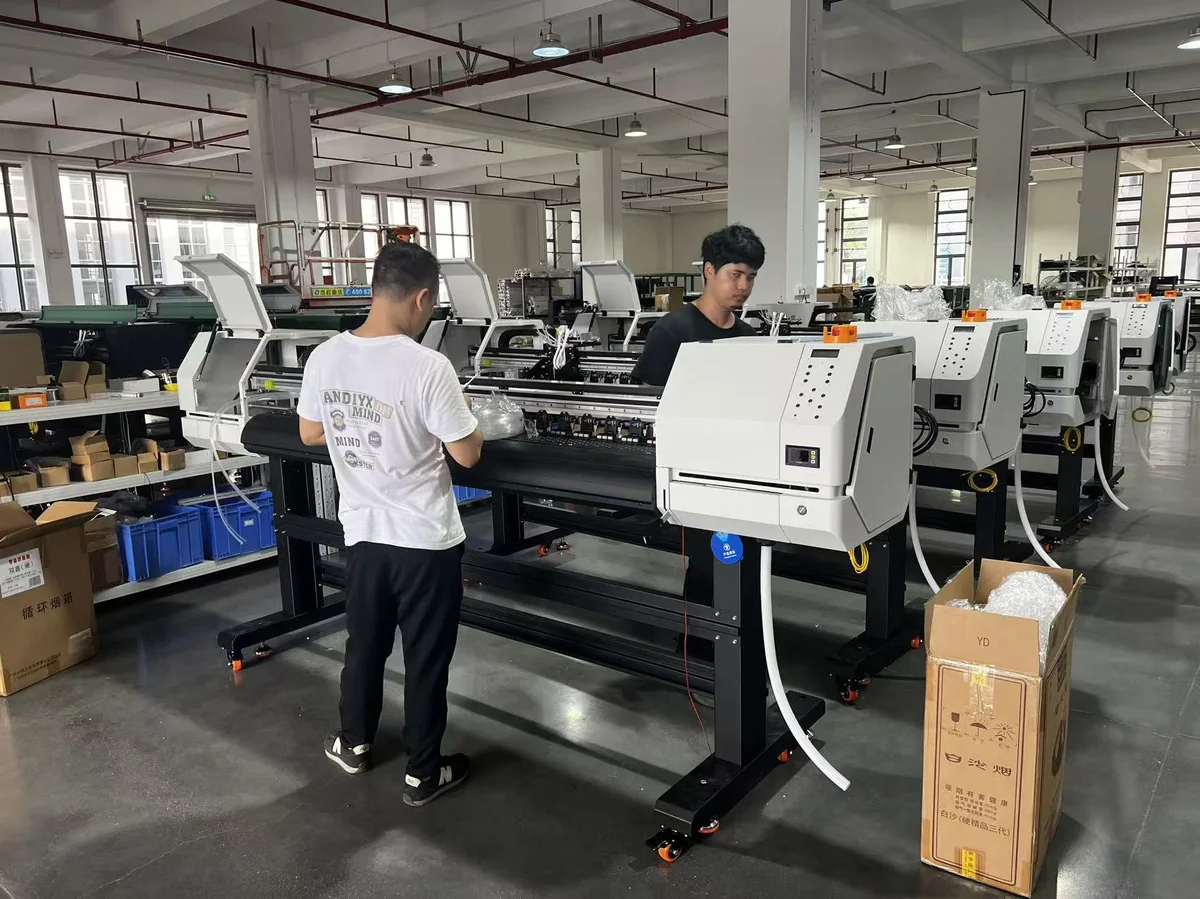

Assembly

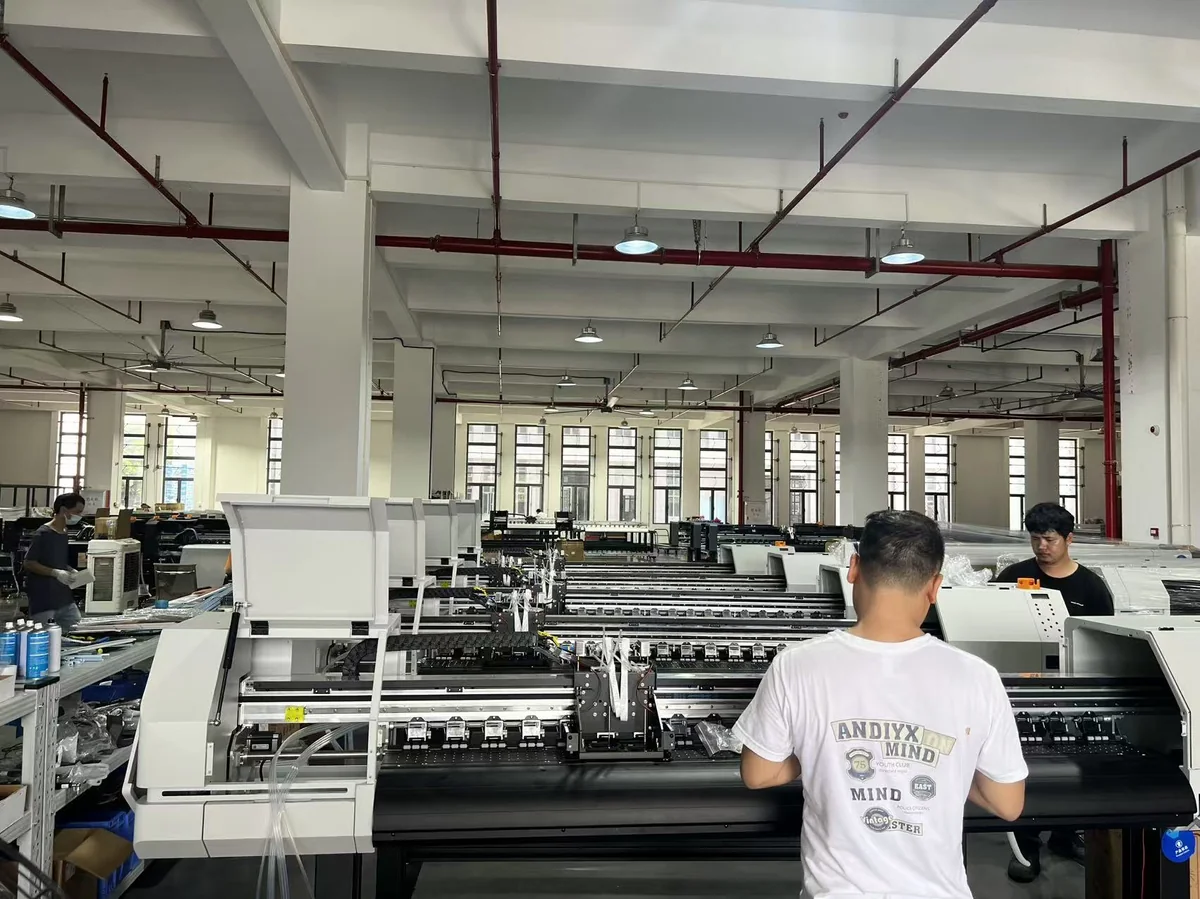

QC
Testing

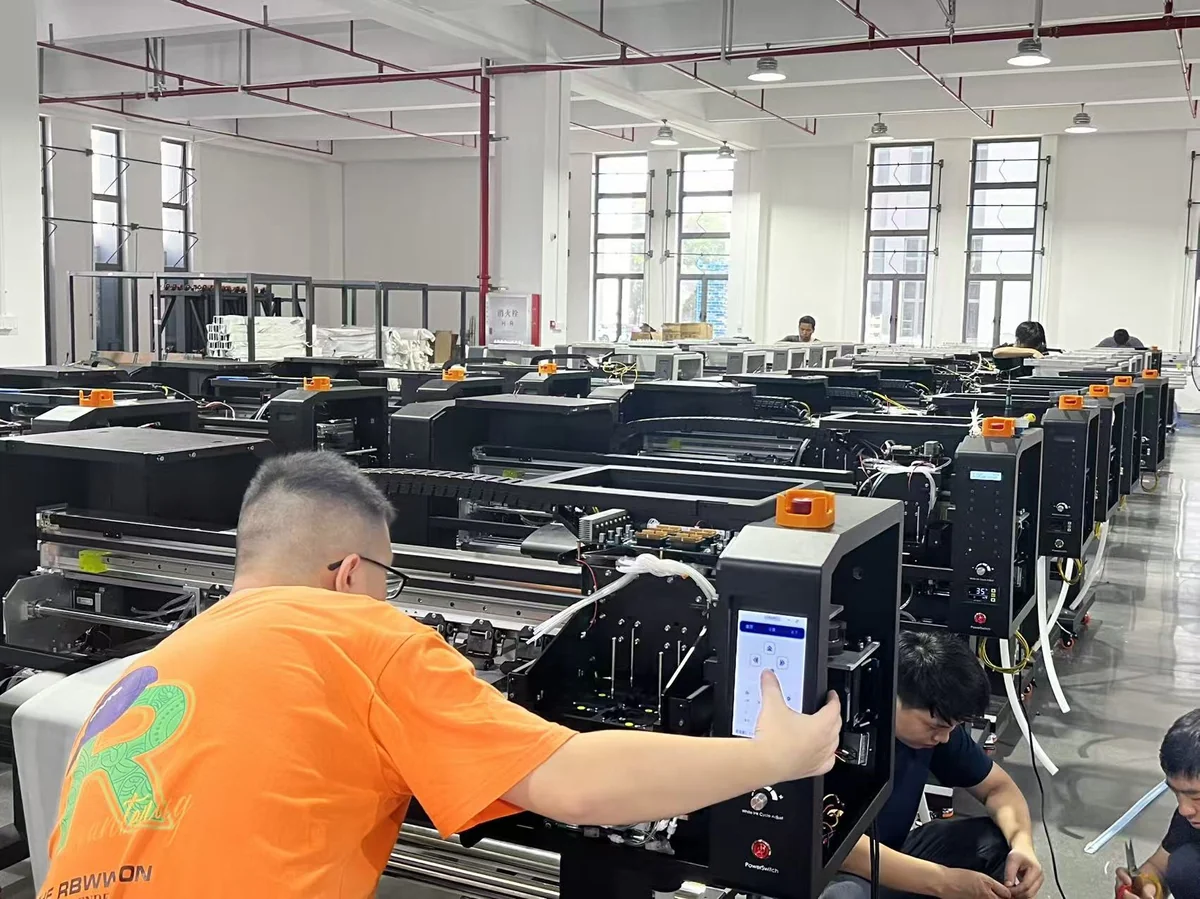

Pre-Shipment

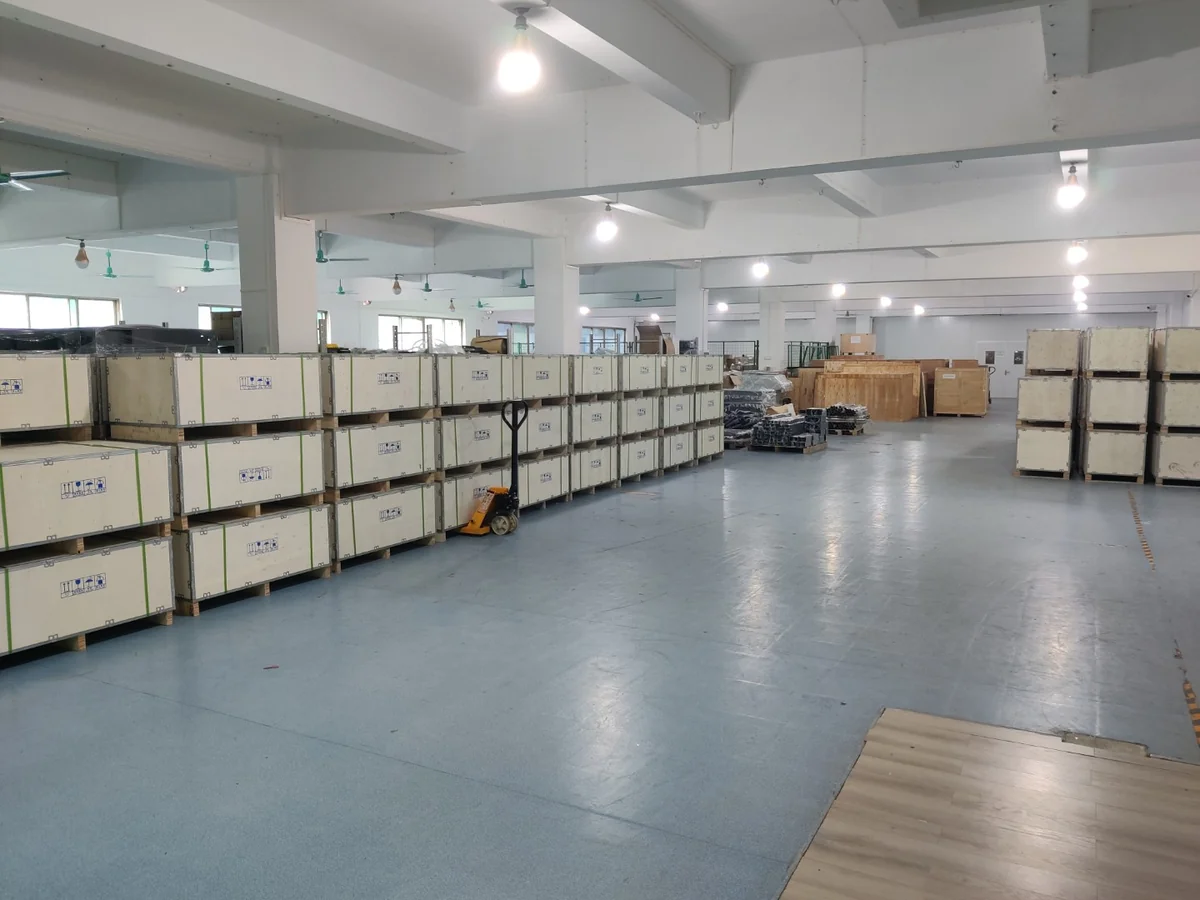

Warehouse
PackagingCertifications & Compliance
FuJia products meet international quality and safety standards.
CEEuropean Conformity
Comply with EU standards.
ISO 9001Quality Management
Certified quality management.
AlibabaTrade Assurance
Verified supplier.
SGSThird-Party Inspection
Independent verification.
Learn More
Frequently Asked Questions
What are the main advantages of this DTF printer?
Lowers the DTF printing barrier with minimum procurement cost. Enables garment factories to fulfill batch orders in-house.
What printhead does this model use?
Epson I3200 printheads — fast, stable, suitable for high-quality custom apparel printing at scale.
What businesses is this suitable for?
Garment printing factories, startups, and large apparel companies with DTF printing needs.
What fabrics and inks are compatible?
DTF water-based ink compatible with cotton, polyester, sportswear, flags and various fabrics.
How is maintenance and support handled?
Stable operation with low maintenance. Efficient ink circulation system. Remote technical support, maintenance guidance, and full spare parts supply provided.
What is the delivery time?
3–10 working days after deposit. Standard models stocked year-round. Ink and consumables ship in 3–5 days.
What payment methods are accepted?
T/T, D/P, Western Union, credit card, and Alibaba Trade Assurance.
How to get technical support?
7×24 online support. Send detailed problem descriptions, photos or videos for remote diagnosis and resolution.
Can spare parts be replaced?
Full spare parts supplied. Return damaged parts for replacement. Spare parts kit recommended for quick maintenance.
Can our technicians visit your factory for training?
Yes, free professional training at our Guangzhou factory.
Do you provide compatible consumables and accessories?
Yes, highest quality consumables and accessories to ensure stable printer operation.
