DTF printer parts include the printheads ($349-$1,499 each), dampers ($5-$10 each), capping stations, wiper blades, ink delivery tubes, mainboards ($189), carriage assemblies ($79-$99), and white ink circulation systems that together form the ink delivery, motion control, and maintenance subsystems of a Direct-to-Film printer. The six components requiring regular replacement are printheads, dampers, capping stations, wiper blades, ink lines, and cleaning cartridges, with maintenance costs averaging $200-$800 annually for a production DTF printer running 8 hours per day.
Key Takeaways
- Printheads are the most critical and expensive DTF printer part: Epson I3200 costs $500-$900, XP600 costs $349-$600
- White ink circulation systems prevent titanium dioxide pigment from settling, which is the leading cause of printhead clogs in DTF printers
- Daily maintenance (3-5 minutes: wipe capping station, run nozzle check) extends printhead life from 6 months to 18-24 months
- Dampers ($5-$10 each) filter ink before it reaches the printhead and should be replaced every 3-6 months
- Fujia Print DTF printers use named component brands: Honson mainboards, Leadshine servo motors, THK silent guide rails for consistent print quality over 12-hour production runs
Printheads: The Core Component
The printhead is the most important component in a DTF printer. It contains hundreds of microscopic nozzles (typically 300-600 per head) that deposit CMYK and white ink droplets onto PET film at resolutions up to 1440×2880 dpi. For a complete overview, see the Fujia DTF printer lineup guide.

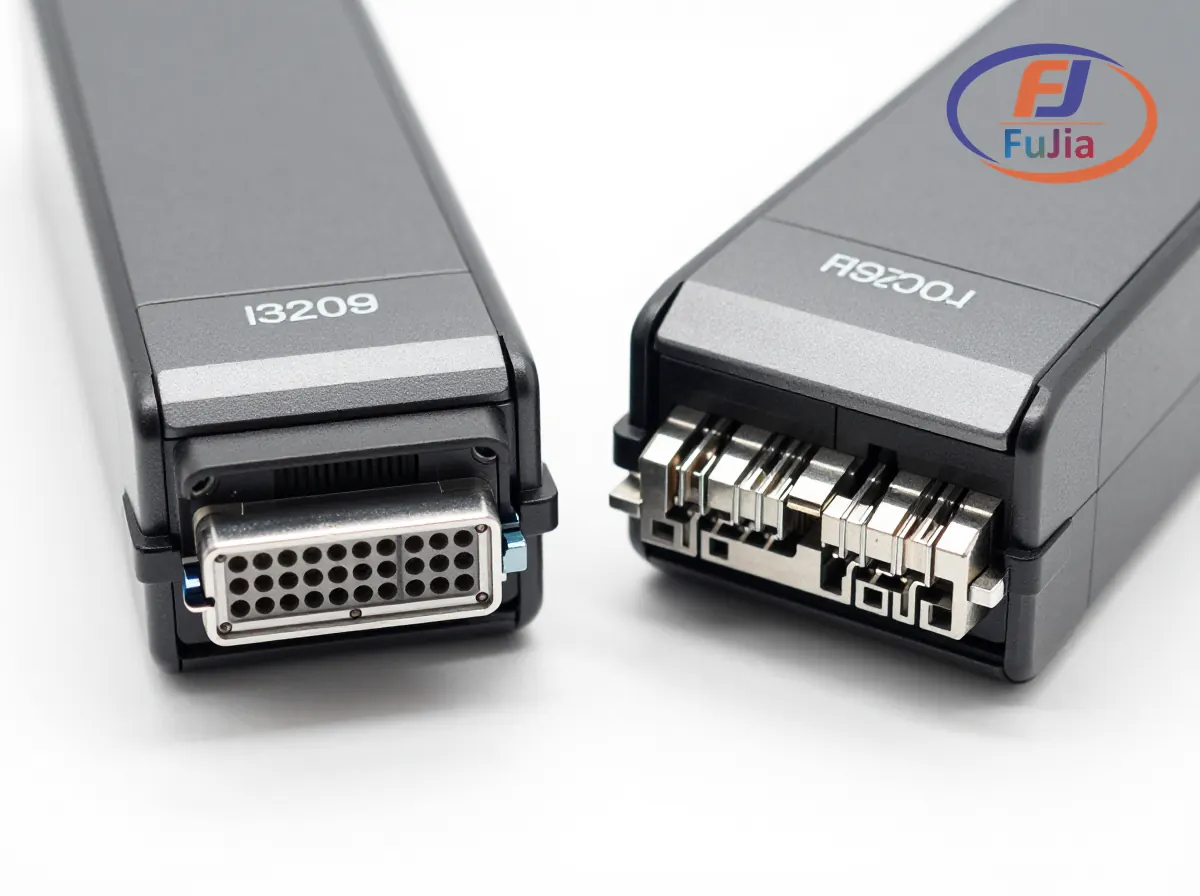

| Printhead Model | Nozzles | Drop Size | Used In | Price Range |
|---|---|---|---|---|
| Epson I3200-U1 | 3,200 (800×4 colors) | 2.5-8.0 pl | A1 industrial DTF (Fujia 4-Head) | $500-$900 |
| Epson I3200-A1 | 3,200 (800×4 colors) | 2.5-8.0 pl | Industrial DTF, UV | $500-$850 |
| Epson XP600 | 1,800 (360×5 colors) | 3.5-11.0 pl | Desktop DTF (Fujia A3) | $349-$600 |
| Epson 4720 | 4,000 (1000×4 colors) | 3.5-14.0 pl | High-speed industrial DTF | $800-$1,499 |
| Ricoh GEN5 | 1,280 (640×2) | 7-35 pl | UV/DTF hybrid | $700-$1,200 |
Printhead lifespan depends on maintenance discipline and white ink management. With daily nozzle checks and weekly deep cleaning cycles, Epson I3200 printheads last 18-24 months in production environments. Neglecting maintenance reduces lifespan to 6-8 months, with replacement costs of $500-$900 per head multiplied by the number of heads in the printer.

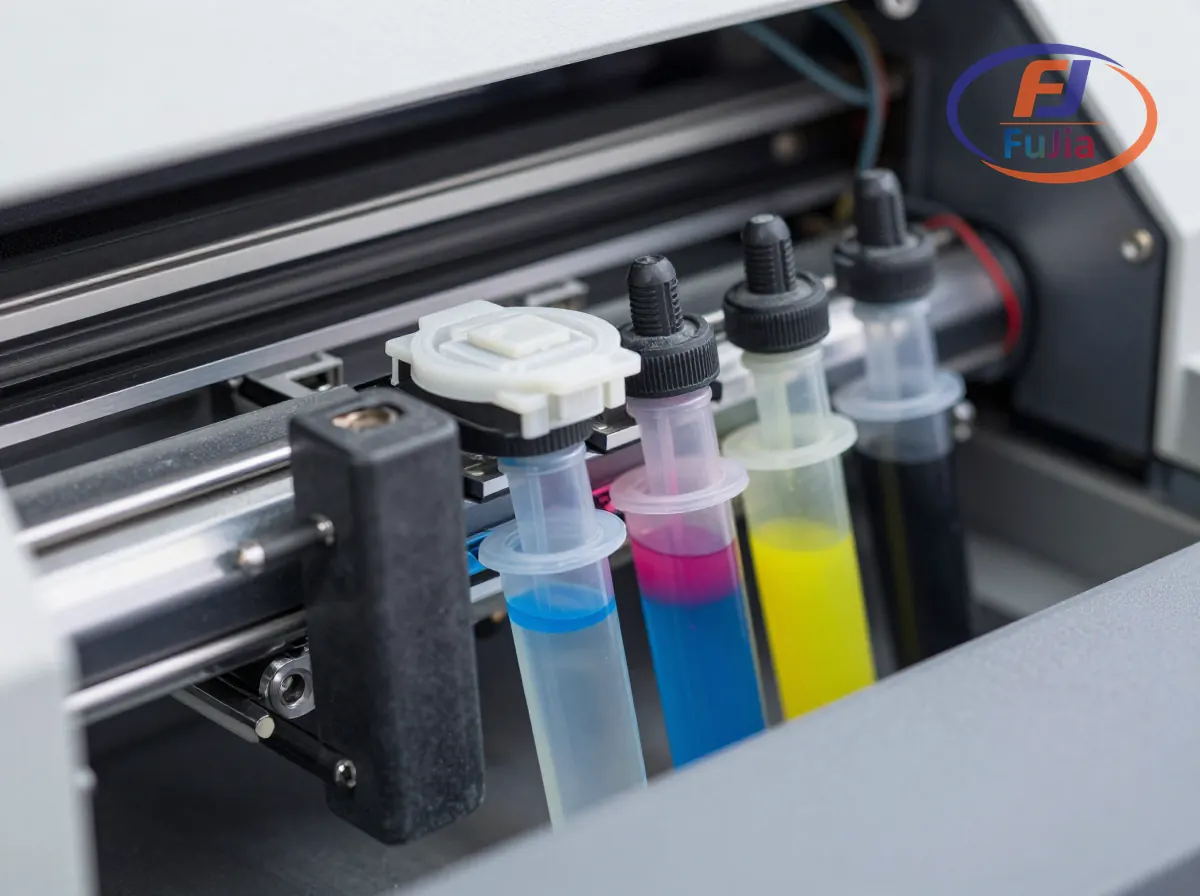

Ink Delivery System Parts
Dampers
Dampers sit between the ink tubes and the printhead, filtering out pigment particles and air bubbles before ink reaches the nozzles. DTF dampers cost $5-$10 each and require replacement every 3-6 months because white ink pigment (titanium dioxide) accumulates in the filter mesh, restricting ink flow and causing banding or missing nozzles. Signs of a clogged damper include: uneven white ink coverage, intermittent nozzle drops during printing, and increased cleaning cycle frequency.
Capping Station and Wiper Blade
The capping station seals the printhead when the printer is idle, preventing ink from drying in the nozzles. The wiper blade cleans excess ink from the printhead surface after each print pass. Both components cost $15-$40 each and should be replaced every 6-12 months. A worn capping station allows air to enter the printhead, causing overnight nozzle dropout. A worn wiper blade leaves ink residue on the printhead surface, producing streaks on the next print.
Ink Lines and Tubes
DTF printers use silicone ink delivery tubes ($9-$15 per set) connecting the CISS tanks to the dampers. White ink tubes must have a wider inner diameter (typically 3mm vs 2mm for CMYK) to accommodate the higher viscosity of titanium dioxide-loaded ink. Air bubbles in the ink lines produce gaps in the printed image and must be purged using the printer’s built-in ink charge function before printing.

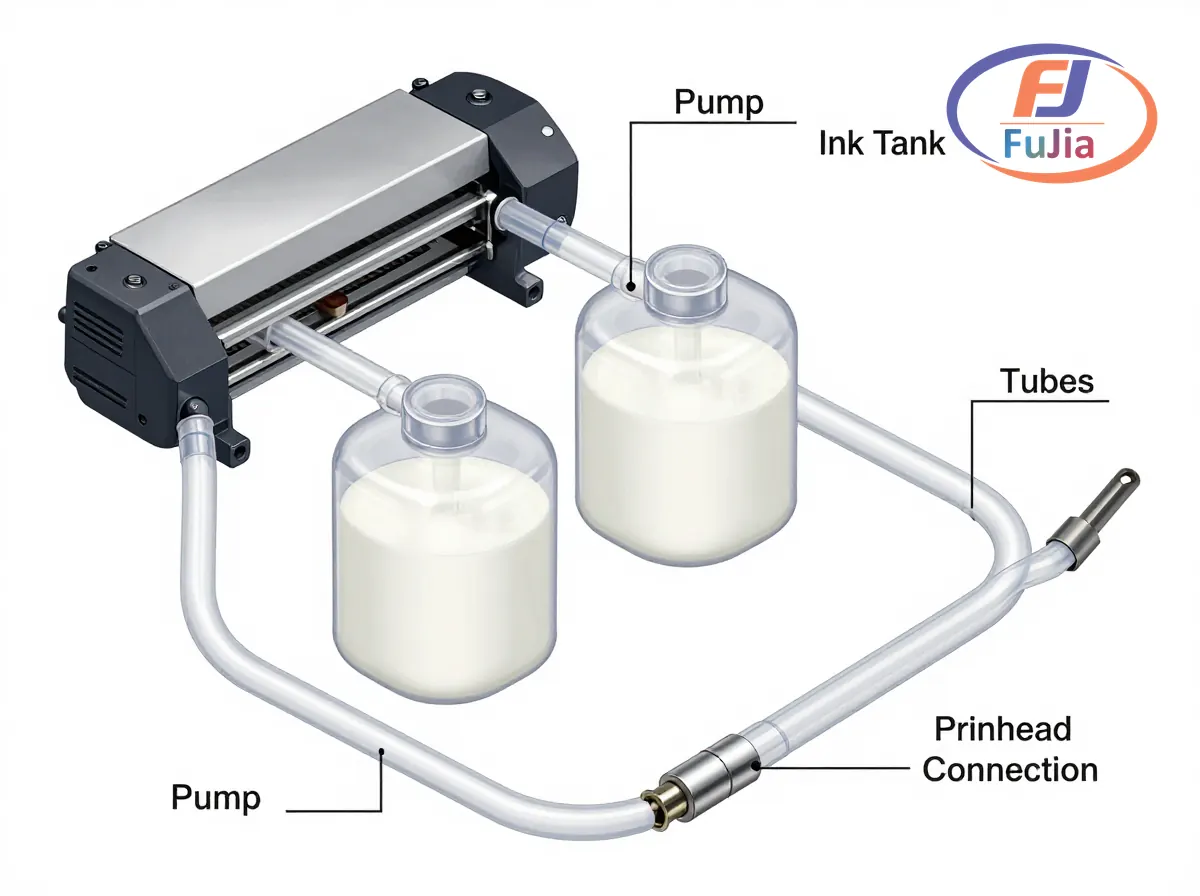

White Ink Circulation System
White ink is the most maintenance-intensive consumable in DTF printing. Titanium dioxide pigment, which provides opacity for dark fabric transfers, is heavier than the carrier fluid and settles within 24-48 hours of inactivity. A white ink circulation system continuously pumps white ink through the delivery lines to keep pigment suspended.
The Fujia Print automatic white ink circulation system runs on a timer cycle every 4 hours when the printer is idle, and includes an auto power-off function that keeps the circulation pump running during power outages to prevent overnight pigment settling. This system extends white ink usability from 2-3 weeks (manual shaking) to 6-8 weeks before the ink needs replacement. Without active circulation, settled TiO2 pigment forms a cement-like layer at the bottom of the ink tank and in the printhead channels, requiring professional printhead flushing or replacement.
Motion Control Components
Mainboard
The mainboard processes print data from the RIP software and controls all printer functions: printhead firing, carriage movement, paper feed, and heating. Fujia Print DTF printers use Honson mainboards, an industry-standard brand for industrial inkjet printers. Replacement mainboards cost $189-$350 depending on the printer model. Mainboard failure symptoms include: incomplete prints, printhead channel dropout, communication errors with RIP software, and carriage position errors.
Servo Motor and Guide Rail
The carriage servo motor moves the printhead assembly horizontally across the print width with precision measured in micrometers. Fujia Print uses Leadshine servo motors paired with THK silent guide rails, two named Japanese/Taiwanese brands known for industrial automation reliability. This combination maintains printhead positioning accuracy within plus or minus 0.01mm across 12-hour continuous runs, preventing visible banding or color registration errors. Replacement cost: $150-$400 for servo motor, $200-$500 for guide rail assembly.
Paper Feed and Take-Up System
DTF printers use a suction-based paper feed system with 2mm suction holes and a powerful fan to hold PET film flat during printing. Imported adjustable press wheels reduce static buildup and prevent ink splash on the film surface. The take-up reel winds printed film for continuous production runs. Paper feed issues produce skewing, wrinkles, or jams that can damage the printhead if the film contacts the nozzle plate.
Maintenance Parts Schedule
| Part | Replacement Interval | Cost | Priority |
|---|---|---|---|
| Dampers | 3-6 months | $5-$10 each | High |
| Wiper blade | 6-12 months | $5-$15 | High |
| Capping station | 6-12 months | $15-$40 | High |
| Ink lines | 12 months | $9-$15/set | Medium |
| Cleaning cartridges | Monthly use | $10-$25 | Medium |
| Printhead | 18-24 months (with care) | $349-$1,499 | Critical |
| Mainboard | On failure | $189-$350 | Low |
| Servo motor | On failure | $150-$400 | Low |
Annual maintenance parts cost for a 4-head DTF printer: approximately $200-$800, depending on usage intensity. The Fujia Print factory ships replacement parts within 48 hours of order confirmation and maintains a lifetime WhatsApp engineering support group for troubleshooting. For more details on the production setup, see our DTF printer conversion guide or browse the full DTF printer collection.
Troubleshooting Common Parts Issues
| Symptom | Likely Cause | Part to Check | Solution |
|---|---|---|---|
| White ink not printing after idle | Settled TiO2 pigment | Printhead + white ink lines | Run power clean cycle; circulate white ink for 30 min |
| Banding in print direction | Clogged damper filter | Dampers | Replace damper ($5-$10); flush ink line |
| Nozzles drop overnight | Worn capping station seal | Capping station | Replace capping station ($15-$40) |
| Printer stops mid-print | Carriage position sensor | Carriage sensor + belt | Inspect belt tension; replace sensor ($20-$40) |
| Colors shifted on film | Printhead alignment | Printhead adjustment screws | Re-run printhead alignment in RIP software |
| Film jams or skews | Suction fan or paper guide | Suction plate + press wheels | Clean suction holes; adjust press wheel tension |
| Ink puddling on printhead | Worn wiper blade | Wiper blade | Replace wiper blade ($5-$15); clean printhead surface |
Based on data from our customers across 50+ countries, 80% of DTF printer downtime traces to three preventable issues: white ink settling (38%), clogged dampers (27%), and worn capping stations (15%). All three are prevented by the daily 3-5 minute maintenance routine.
What are the most common DTF printer parts that need replacement?
The six most commonly replaced DTF printer parts are dampers ($5-$10 each, replaced every 3-6 months), capping stations ($15-$40, every 6-12 months), wiper blades ($5-$15, every 6-12 months), ink delivery tubes ($9-$15 per set, annually), cleaning cartridges ($10-$25, monthly), and printheads ($349-$1,499, every 18-24 months with proper maintenance). Dampers and capping stations fail most frequently because they are in constant contact with white DTF ink, which contains titanium dioxide pigment that accumulates in filters and seals. A production DTF printer running 8 hours per day should budget $200-$800 annually for replacement parts, with printhead replacement representing the largest single expense when maintenance is neglected. Regular daily maintenance (3-5 minutes wiping the capping station and running a nozzle check) extends the replacement interval for all components by 40-60%.
How long does a DTF printhead last?
A DTF printhead lasts 18-24 months in a well-maintained production environment, or 6-8 months with poor maintenance. The primary factor determining printhead lifespan is white ink management: titanium dioxide pigment in white DTF ink settles within 24-48 hours of printer inactivity and forms irreversible deposits in the printhead nozzles if not flushed. DTF printers with automatic white ink circulation systems (like Fujia Print’s auto power-off circulation that runs during idle periods) extend printhead life to 24 months by keeping pigment suspended. Daily maintenance habits that extend life include: running a nozzle check every morning before printing (confirms all nozzles are firing), wiping the capping station with cleaning solution (removes dried ink), and printing at least one small design daily to keep ink flowing through all channels. When a printhead fails, replacement cost ranges from $349 for an Epson XP600 (desktop DTF) to $1,499 for an Epson 4720 (industrial high-speed DTF).
Where can I buy DTF printer replacement parts?
DTF printer replacement parts are available from three sources: the printer manufacturer (recommended for warranty coverage and part compatibility), authorized dealers, and third-party parts suppliers like Inkjet Parts, InkSonic, and 123 Refills. Manufacturer-direct sourcing ensures components match the printer’s specifications, particularly for mainboards (Honson brand in Fujia Print printers), servo motors (Leadshine), and guide rails (THK). Third-party dampers and ink lines are generally compatible across printer models using the same Epson printhead family. Printheads should always be sourced from authorized channels because refurbished or counterfeit Epson printheads have significantly shorter lifespans and inconsistent nozzle quality. Fujia Print ships replacement parts within 48 hours from its 3,500 square meter Guangzhou factory and provides installation guidance through its engineering support team via WhatsApp. For a complete parts list specific to your printer model, consult the DTF printer product specifications.
How do I maintain my DTF printer to avoid parts failure?
DTF printer maintenance requires three daily habits, one weekly task, and one monthly deep clean. Daily (3-5 minutes total): wipe the capping station and wiper blade with cleaning solution to remove dried ink residue, run a nozzle check to confirm all channels are firing, and print at least one small test design to keep ink flowing. Weekly (15-20 minutes): run a power cleaning cycle through the RIP software to flush the printhead with cleaning fluid, inspect dampers for discoloration or restricted flow, and check ink levels in all tanks. Monthly (30-60 minutes): replace the cleaning cartridge, inspect ink lines for air bubbles or cracks, clean the paper feed rollers and suction plate, and verify printhead height alignment using the adjustment screws. Store DTF ink at 18-25 degrees Celsius and 35-65% relative humidity. Never leave a DTF printer idle for more than 48 hours without running the white ink circulation system, as settled titanium dioxide will clog the printhead permanently.
Conclusion
DTF printer parts consist of 6 consumable components (dampers, capping stations, wiper blades, ink lines, cleaning cartridges, printheads) plus motion control electronics (mainboard, servo motor, guide rail). Annual maintenance costs $200-$800 for a production machine. Explore Fujia Print DTF printers for factory-direct machines with named component brands (Honson, Leadshine, THK), or read our DTF printer cleaning solution guide for maintenance procedures.
